Programmable dual view Speedometer DEPO 95mm

The speedometer receives the speed signal from the output of the ECU. After connection, it is necessary to calibrate the speedometer to a specific type of signal according to the instructions included with the gauge.

In the case of cars in which the speedometer cannot be connected to the ECU or have the speed signal to the original speedometer transmitted mechanically, it is necessary to use an additional sensor for the gearbox (not included in the package).

Speedometer from DEPO racing's top series PROGRAMMABLE WARNING and PEAK RECALL (PK). Thanks to the Japanese stepper motor movement, they achieve the highest accuracy and a very short reaction time.

The speedometer is in the off state behind the black opaque glass. Each time it is switched on, it first calibrates and welcomes you with an impressive opening ceremony (the hand will rise to the maximum and then fall to the measured value). Self-calibration ensures high accuracy even after many years.

Using the included control panel, it is possible to set the maximum speed (PEAK). When reached, the LED warning light will light up and an audible signal will sound. It is also possible to use the control panel to call up the maximum value achieved after driving and to set the dimming level of the alarm clock when turning on the lights in 7 levels.
All alarms of the PROGRAMMABLE WARNING and PEAK RECALL (PK) series are fully illuminated by LED diodes, thanks to which they are perfectly visible even in the sun. It is possible to choose white or red backlight.

The mounting depth of the gauge is only 22mm!

The advantage of this series is the double display of measured values. Measured values are displayed digitally on a high-quality and easy-to-read OLED display and analogically on a backlit scale.

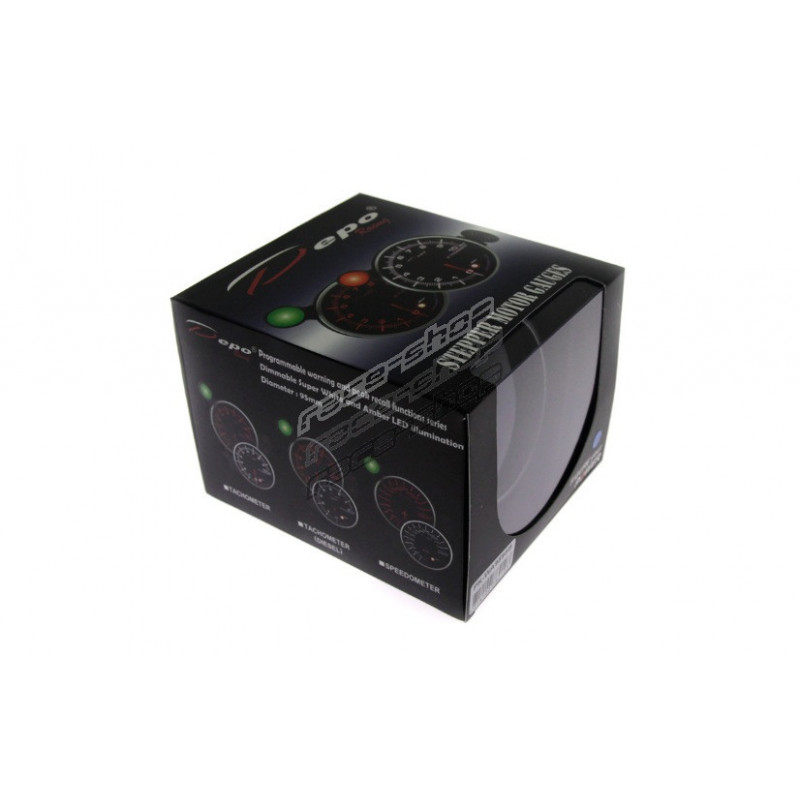

The packaging includes a stand, control panel, shift light, wiring and mounting material. Additional features are:

• white or red LED backlight
• control panel allows to change the backlight, set up warning sound and led light, set the brightness
• opening ceremony and ending mode
• high precision
• includes a stand, control panel, shift light, wiring and mounting material
• high quality
• good visibility on bright sun
