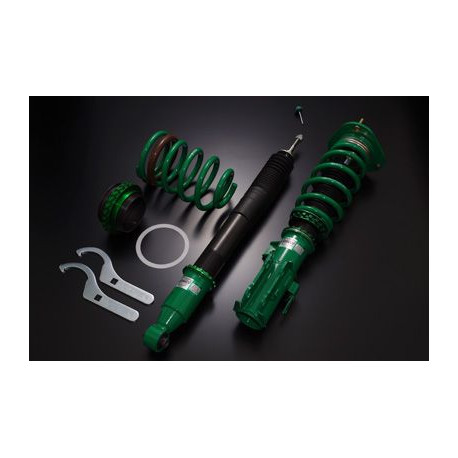

TEIN FLEX A Coilovers for SUBARU WRX VAG

The Flex A range has been developed to combine comfort and performance for sporty drivers. To provide the best pricing, engineers at Tein have entirely re-designed the Japanese production plant and manufacturing processes. As a result, this offers the best quality/price ratio ever presented by Tein.

Thanks to their oil and gas twin-tube design, Flex A offers excellent comfort at low speeds on rough roads while providing outstanding performance and accuracy in fast driving - on the road and circuit. The ride height and spring preload are adjustable separately, giving full damper stroke at any size. A new oil formulation was used for Flex Z, providing a stable performance at all temperatures.

Compatible with:

• SUBARU WRX VAG
• Year: 2015+
• Drive system: AWD

Specifications:

• Spring rates: 8 kg/mm (front) and 7 kg/mm (rear)
• Height adjustment: from -1 to -74 mm (front) and 16 to -85 mm (rear)
• OEM specification brake hose fittings
• Anti-corrosion coating and dust boots
• Easy and cheap to repair - replacement dampers available from Tein
• Separate ride height and spring preload adjustment.
• Bearing upper mounts (camber adjustment on McPherson suspension)
• Tein reference: VSSB0-D1SS4

Tein Flex Z uses a sealed damper from the factory. Replacements are only possible using a complete damper unit, which is low-cost and quick to replace. Tein Flex A, however, uses a fully rebuildable damper. A rebuild/overall service is available from Tein.

RR: INTERIOR NEEDS TO BE CUT OR REMOVED, TO AVOID INTERFERENCE.
