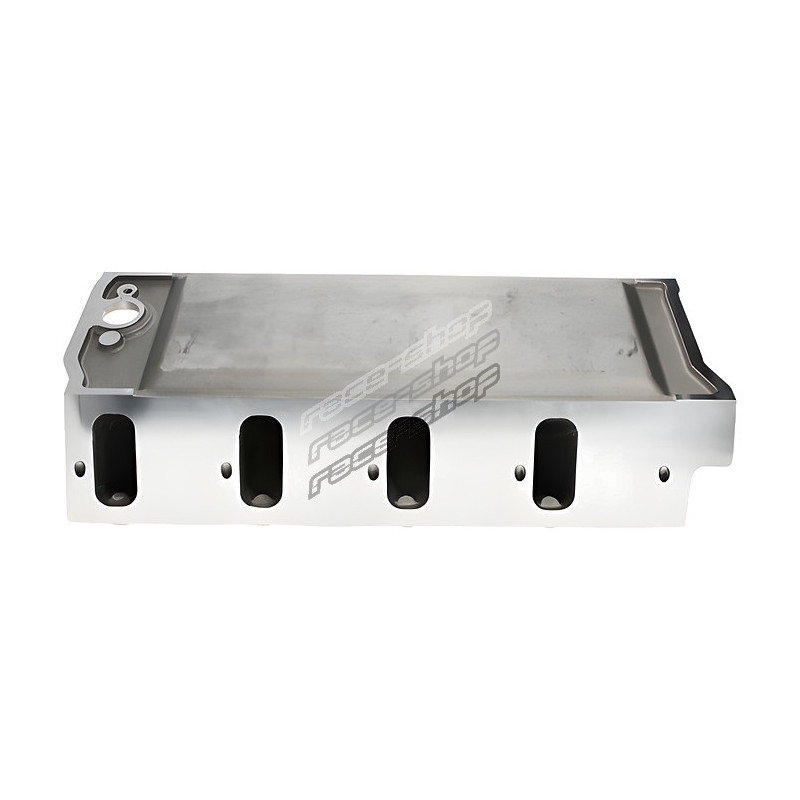

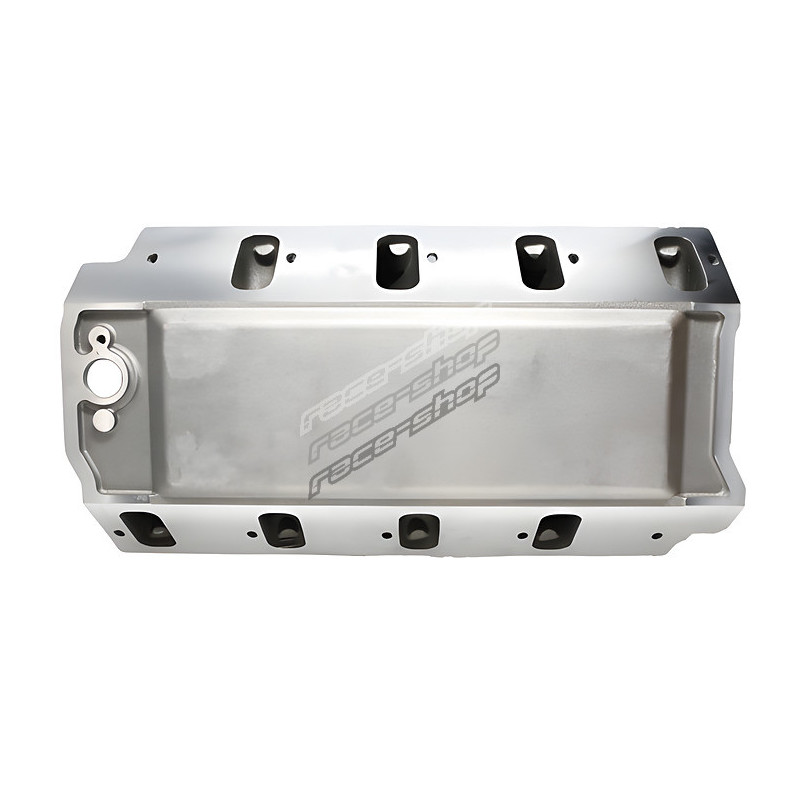

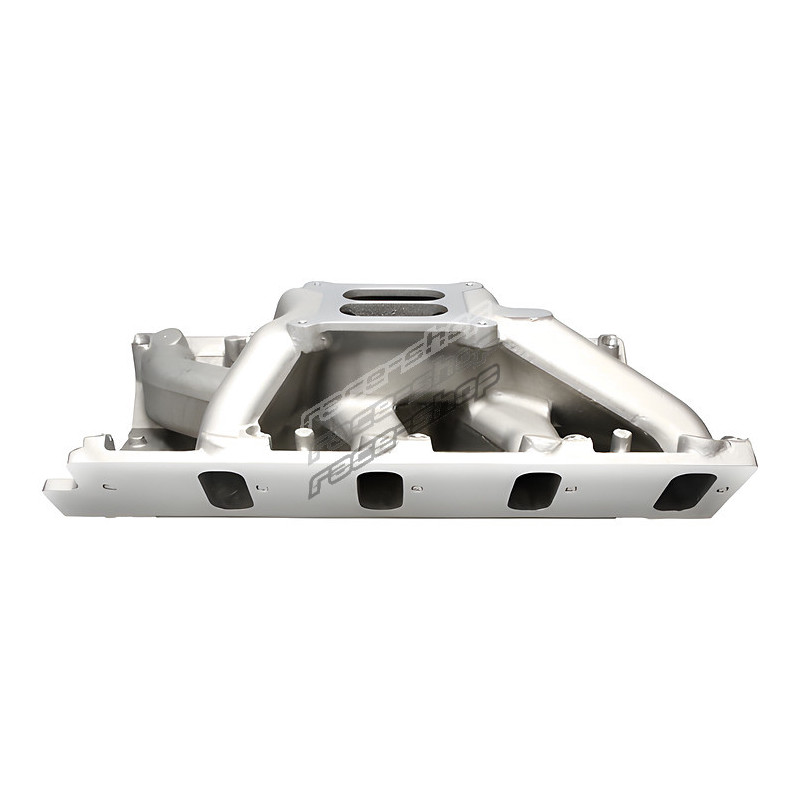

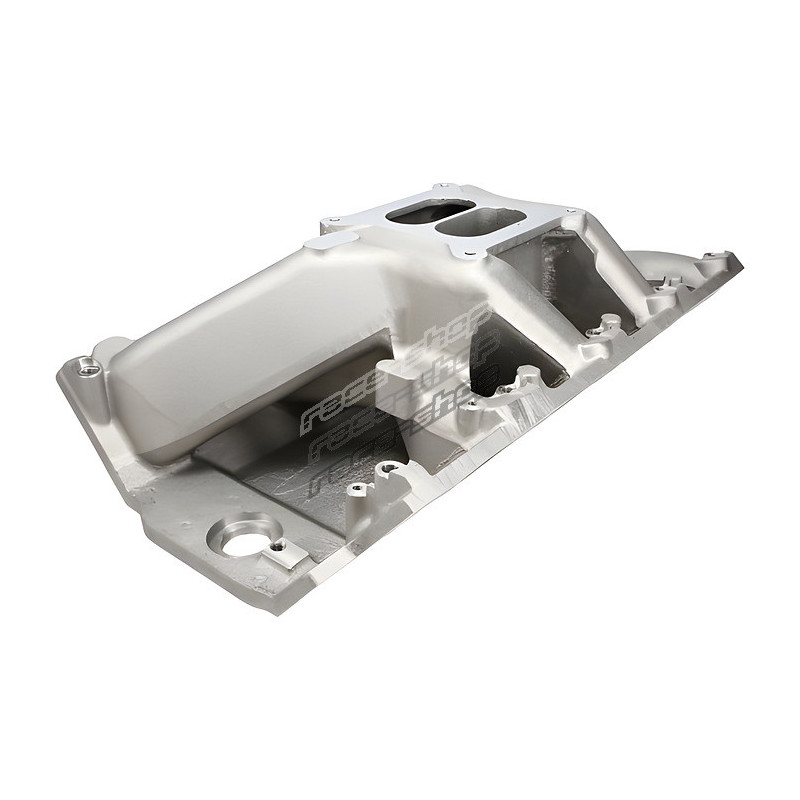

DART Big Block Chevy 8.1 Liter Manifold

An engine’s cylinder heads and intake manifold must work together as an integrated system to produce maximum performance. The intake charge should make a seamless transition from the manifold runners to the cylinder head ports. Dart has accomplished this in every intake manifold we make.

• Industry: Automotive
• Carburetor Flange: 4150
• Deck Height: 10.236 IN
• Manifold Flange Thickness: 0.435 IN
• Material: Aluminum
• Port Height: 3.190 IN
• Port Style: Cathedral
• Port Width: 1.420 IN
• Single Or Dual Plane Type: Dual Plane
• Engine Type: ICE
• Product Type: Engine Intake Manifold
• Make - Web: Chevrolet
• Engine - Web: Big Block
• Emissions Code: 3
