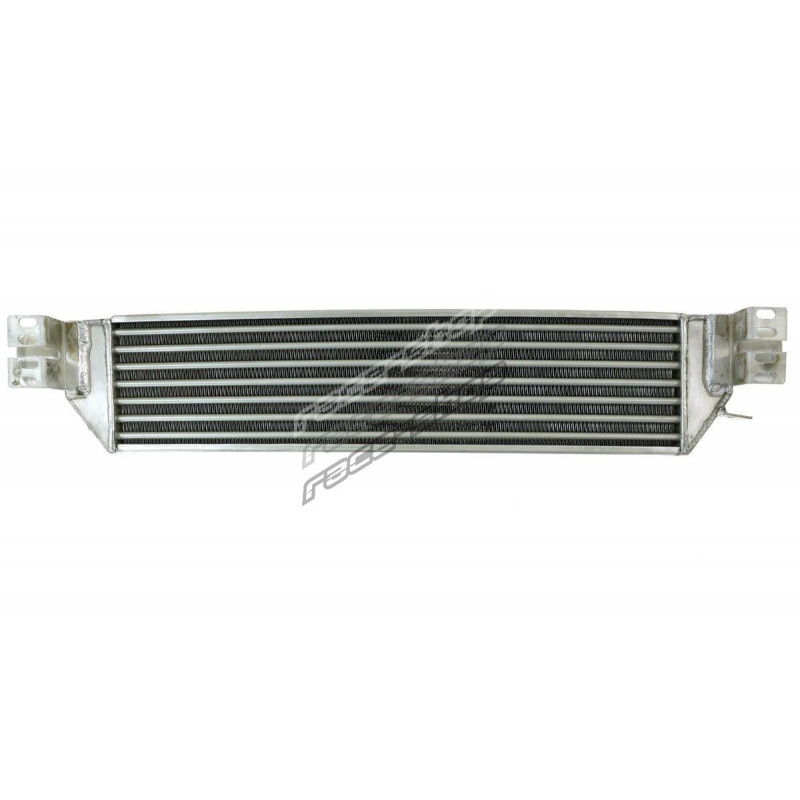

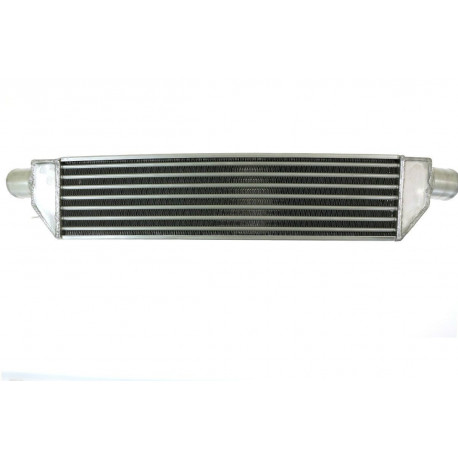

Intercooler for VW Golf 5 645 x 155 x 60mm

SMIC (side mount intercooler). Larger dimensions and higher efficiency than the original IC.

All-aluminum intercooler of compressed air. Suitable for all turbocharged engines, gasoline and diesel.

Intercooler exchange is one of the basic operations to increase performance. By increasing the pressure of the turbocharger, or by using larger turbos, the original intercooler can not adequately cool the air.

The larger intercooler has a significantly better cooling capacity and also reduces the back pressure. By lowering the air temperature by 10 ° C, the engine output increases by 3 - 6%.

Lowering the temperature will allow more oxygen to be injected into the engine (colder air has a higher density and thus, it contains more oxygen in the same volume as the warm).

Suitable for:

Audi A3 1.8T, 1.8T Quattro & 1.9TDI 1996-2004 models.
Seat Leon 1.8l 20V T, 1.8l 20V T4 & 1.9TDI 1999-2006 models.
Seat Toledo MK2 1.8l 20VT & 1.9TDI 1996-2006 models.
Škoda Octavia 1.8T including RS, 1.9TDI & 1.9TDI 4x4 1996-2009 models.
VW Bora 1.8T & 1.9TDI including 4motion 1998-2005 models.
VW Golf MK4 1.9TDI including 4motion 1997-2006 models.

Outside input and output diameter: 60mm (2,25")

Dimensions: 355mm x 185mm x 100mm

Core dimension: 200mm x 185mm x 100mm

Type: Bar and plate

Weight: 3kg

Maximum pressure: 3,2 Bar (45psi)

Increases engine power and torque.

Reduces backpressure.

Alson available in other dimensions.

Due to larger dimensions we send intercoolers only by couriers! (not by post)
