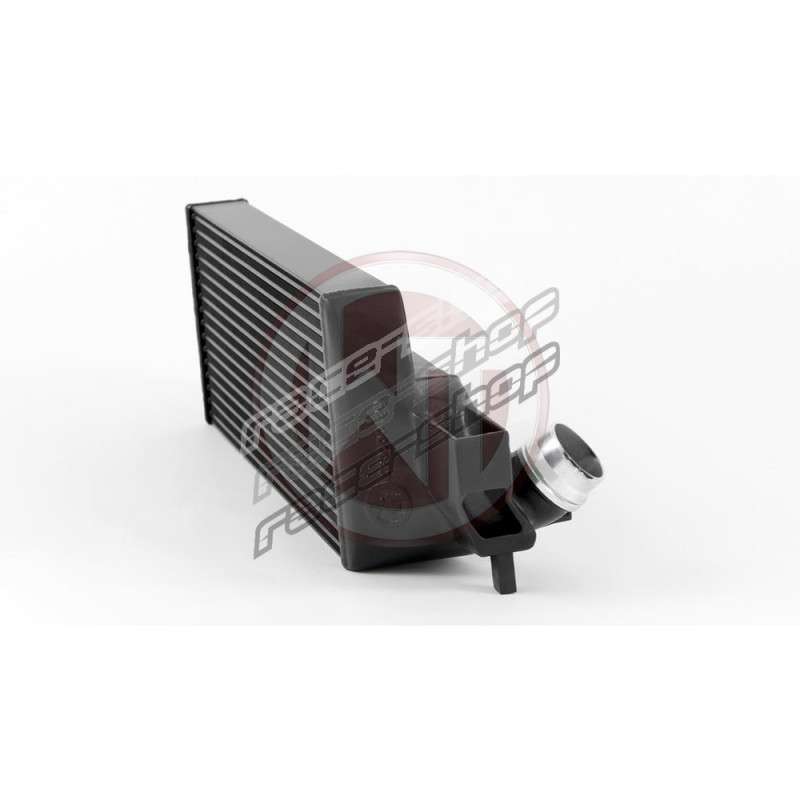

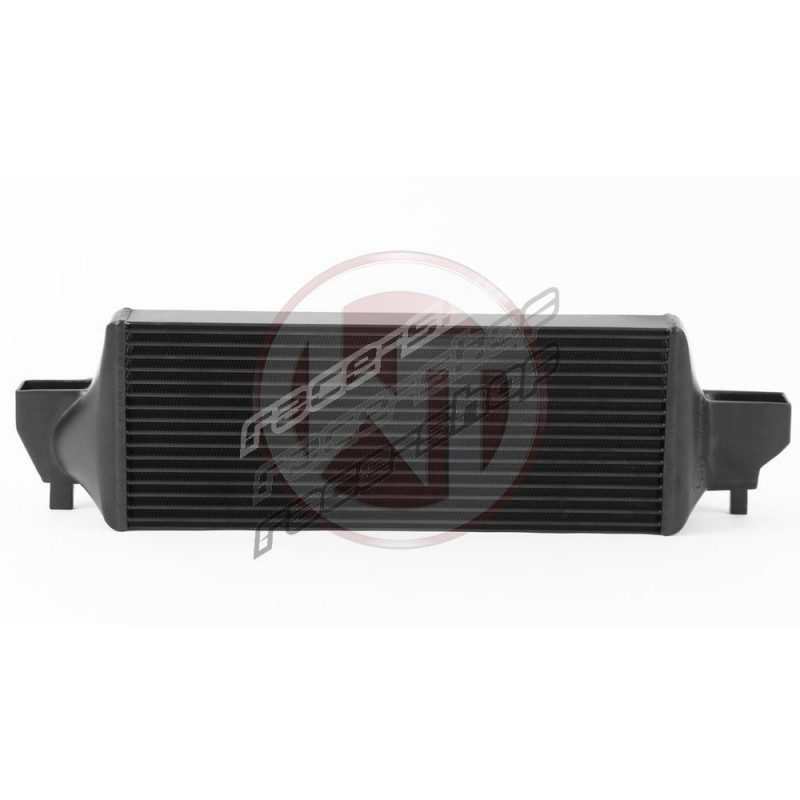

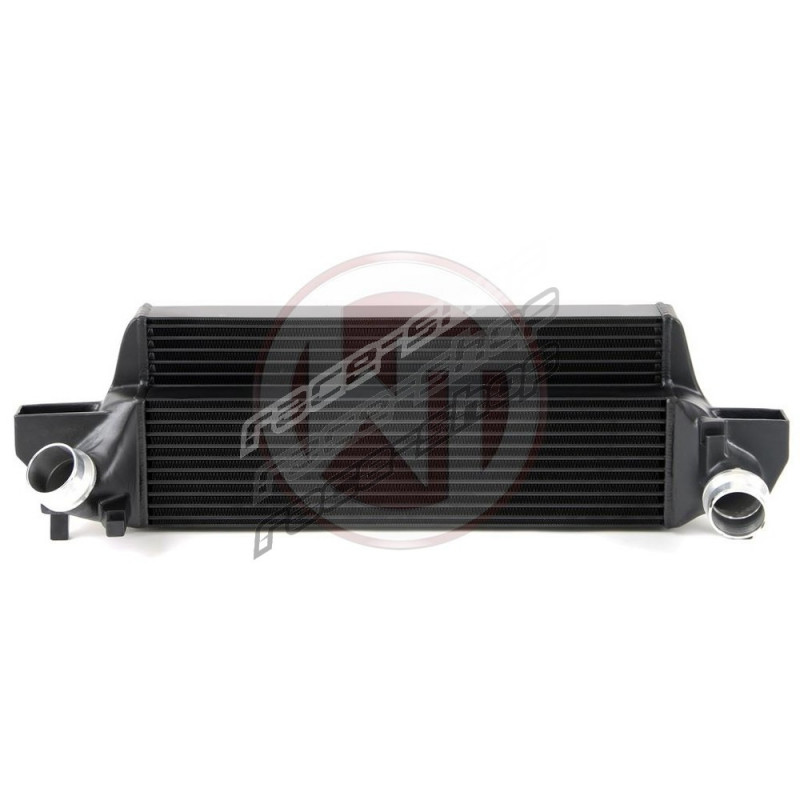

Wagner Competition Intercooler Kit Mini F54/55/56

Competition intercooler upgrade kit plug and play suitable for:

Mini Cooper S F54/F55/F56/F57/F60 (141KW/192HP) 2014+
Mini One D F54/F55/F56 (70KW/95HP) 2014+
Mini Cooper D F54/F55/F56 (85KW/116HP) 2014+
Mini Cooper SD F54/F55/F56 (125KW/170HP) 2014+

does not fit in JCW Edition


The Competition Intercooler has the following core size (580mm x 231mm x 110mm [stepped] = 12.600cm³), providing a 53% larger frontal area and 52% more volume compared to the original intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the endtank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. Competition Intercooler Core with turbulators (weight: 9,2kg). Constructed of the highest quality Tube and Fin intercooler cores combined with cast aluminum optimized by CAD. Flow analyses and simulations were created to optimise the design for best possible internal airflow. This intercooler is the best choice when it comes to performance gains and low intake temperatures. A lot less pressure drop then OEM Intercooler. Anti corrosion protective coating with perfect thermal heat dissapating character. Optimal cooling with clearly more power. Kit is ready for installation (plug & play), using the stock plumming. No cutting required. Fitment is easy, replacing the OEM intercooler. All of our products undergo rigorous quality control.

Dimensions stock Intercooler:
585mm x150mm x 95mm
V=8,3 Liter
A=877,5 cm²

Dimensions WAGNERTUNING Intercooler:
580mm x 231mm x110mm /stepped
V=12,6 Liter
A=1340 cm²

packing list:
1 intercooler painted black
1 mounting material
1 installation instruction







Since 2002, Wagner has been manufacturing high-quality products that guarantee increased performance and maximum durability when used in the most extreme conditions of racing or stock cars. The development and manufacture of components of this brand is under reservation in Germany with a high certified standard that offers TÜV documentation for many products.
