Wagner Comp. Intercooler Kit Ford F150 2017 10 Speed

Intercooler Upgrade Kit for Ford F150 3.5l Ecoboost (from 2017) with 10Speed automatic gearbox

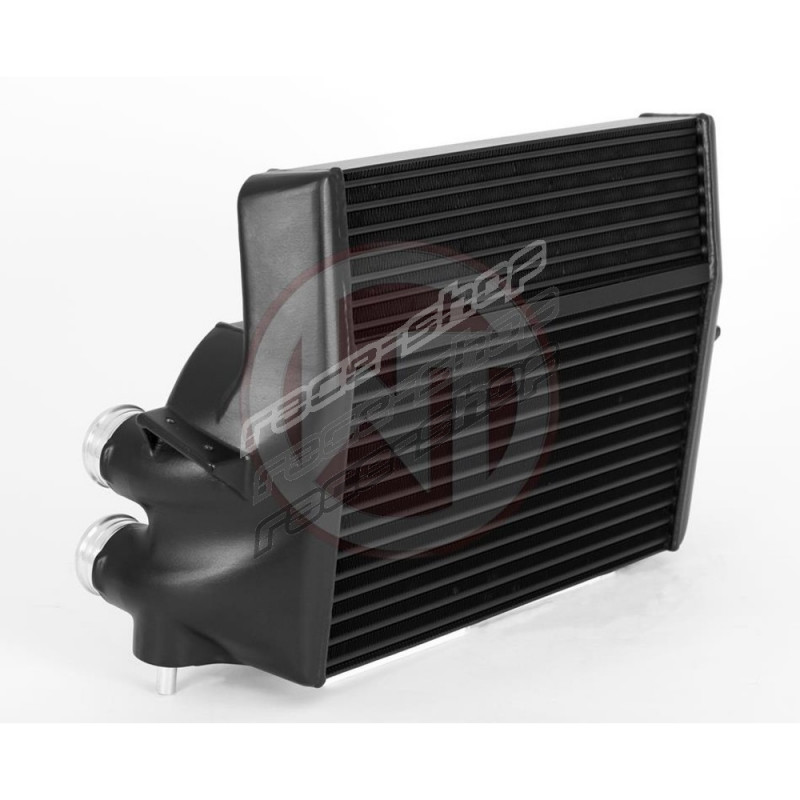

The high performance intercooler has the following core size (500x388x125/stepped), providing a 62% larger face area, as well as 108% more volume compared to the original intercooler.

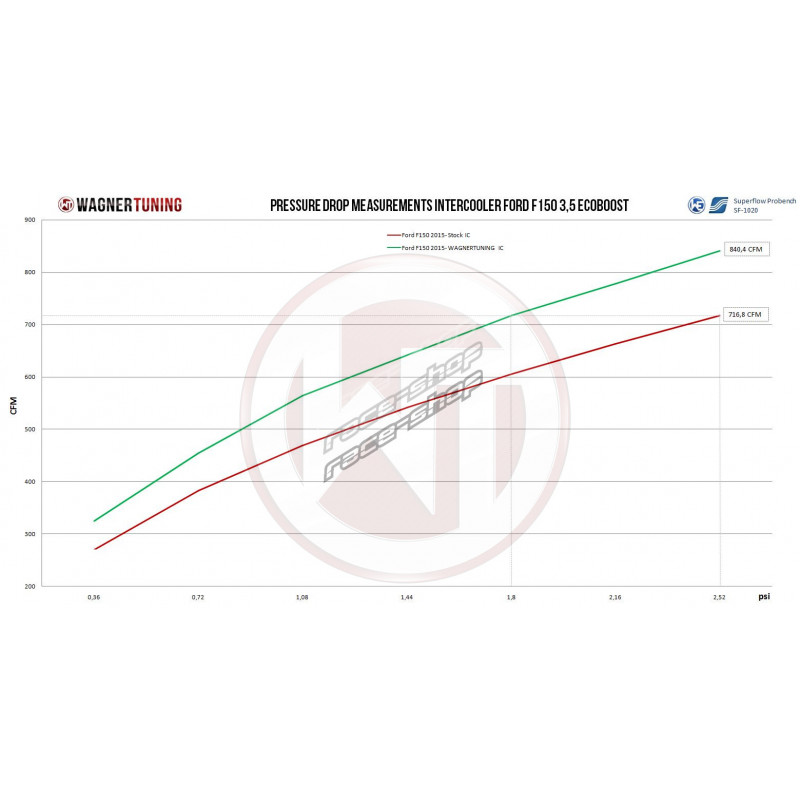

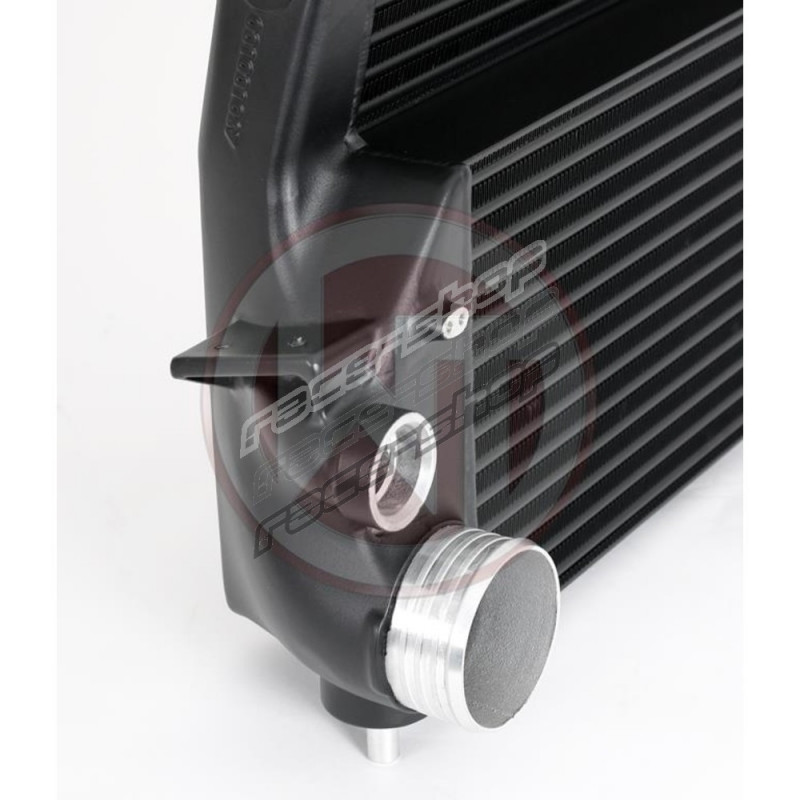

Optimized by CAD, the new Competition High Speed Core and cast aluminium end tanks give this intercooler excellent cooling properties. Flow analyses and simulations were created to optimise the design. With 50% less back pressure this intercooler is the best choice when it comes to performance gains and low intake temperatures.

Fitment is easy, replacing the OEM intercooler. The Intercooler Kit includes additional mounting material to relocate the stock oil cooler. All of our products undergo rigorous quality control.

OEM intercooler:
Cooling Surface 1200cm²
Charge-Air-Volume 9,6L

WAGNERTUNING intercooler:
cooling surface 1940cm²
charge air volume 19,9L

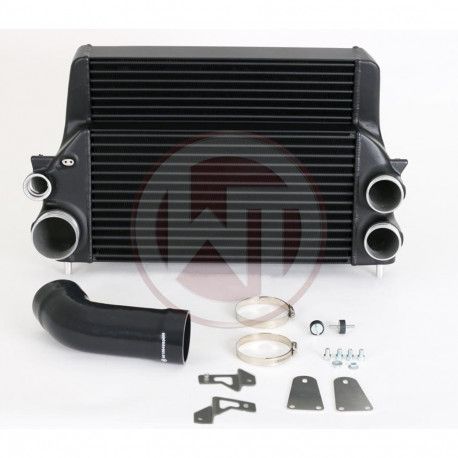

packing list:
1 charge air cooler
1 silicone hose
1 mounting material







Since 2002, Wagner has been manufacturing high-quality products that guarantee increased performance and maximum durability when used in the most extreme conditions of racing or stock cars. The development and manufacture of components of this brand is under reservation in Germany with a high certified standard that offers TÜV documentation for many products.
