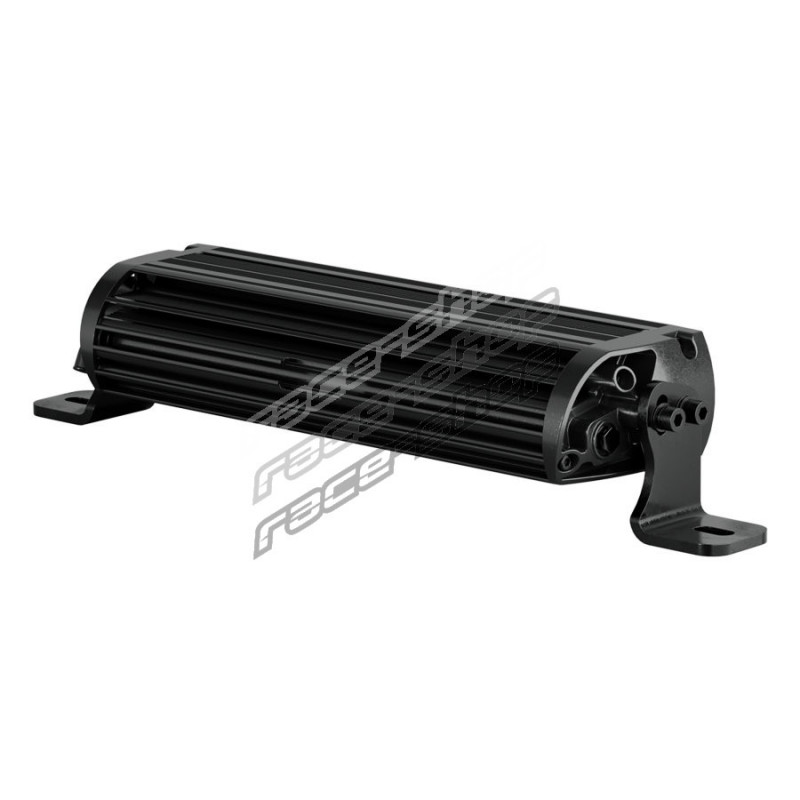

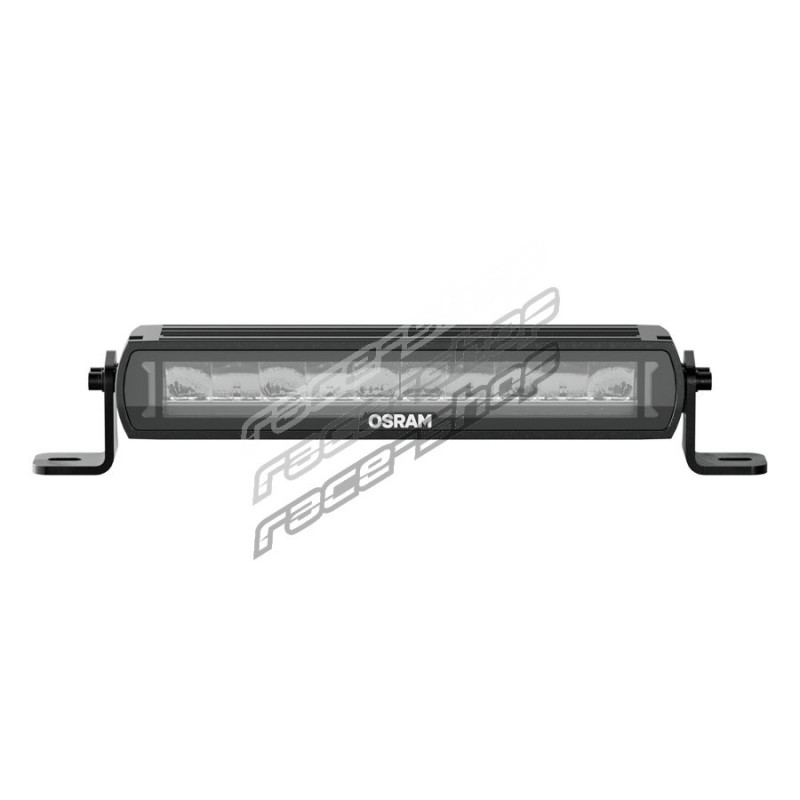

OSRAM led driving lights Lightbar FX250-SP GEN 2, 2120Lm, 360m

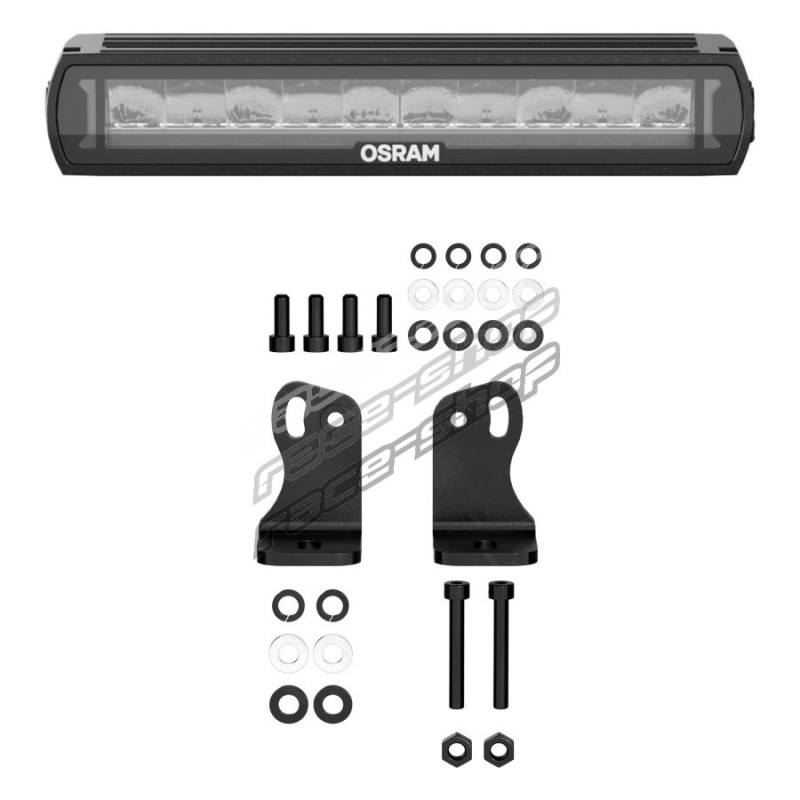

The LEDriving Lightbar FX250-SP GEN 2 is a high-performance lighting solution, providing up to 2,120 Lumens for enhanced visibility on dark roads. Featuring 10 high-performance LEDs, it reaches distances of up to 360 meters and offers daylight-like illumination at 6000 Kelvin. With its sleek design, it minimizes glare and is suitable for use as both a supplementary high beam headlight and a powerful working light. It is fully ECE-compliant for road use and includes a specially designed mounting kit for individual installation. Crafted from high-quality materials, it is lightweight, robust, and resistant, with complete polarity protection for a longer lifespan.

Electrical data

• Nominal wattage 32.00 - 37.00 W

Photometrical data

• Luminous flux 2120 lm
• Color temperature 6000 K
• Light distance at 1lx 360 m

Dimensions & weight

• Product weight 1478.00 g
• Length 54 mm
• Width 83.0 mm
• Height 309.0 mm

Lifespan

• Lifespan Tc > 5000 h

Additional product data

• Connector to lamp Deutsch (DT04-2P, DT06-2S)

Certificates & standards

• Approval marks – approval E4 approval
• Standards R10/R149
• Type of protection IP6K8/IP6K9K
