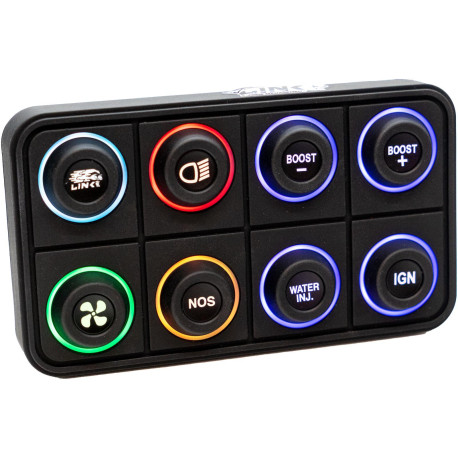

Link CAN Keypad 8 button

Customisable button inserts and configurable RGB indicator rings for each button provide exceptional flexibility across a wide range of applications.

Designed for maximum durability and reliability, the keypad features IP67/IP69K-rated water and dust resistance, an operating temperature range of -40°C to +70°C, 400 hours of UV resistance, salt spray protection, and switches rated for up to 3 million operations.

Suitable for both interior and exterior installation, making it ideal for street, track, and off-road use.

Models Supported

Compatible with all G4X & G5 ECU's. Built-in support from G4X PC Link vers 6.22 onwards.

Important

Keypad ships with empty button inserts, inserts need to be selected and purchased individually.

1 x Link ECU Logo Button Insert included in the box which can be fitted.

CAN Configurable with G4X / G5 PC-Link

• Change LED backlight, individual button indicator ring colour, programmable to show change in status, flashing option, multiple modes including momentary, latched and toggle.

Customizable Button Inserts

• The replacement system for individual inserts makes modifying the keypad layout simple and economical.

IP67/IP69K Waterproof rating

• Guaranteed to be dust tight and sealed against water immersion to a depth of 1 meter for up to 1 hour. The IP69K rating provides protection against high pressure water at high temperature spray downs.

Specifications

Highlights

• Connector: DTM4 Connector for CAN and Power (Black = Ground, Red = Power, White = CAN High, Blue = CAN Low)
• Switch Life: 3 million operations
• CANopen Node ID: 0x15 (21)
• Default Baud Rate: 1000kbit/s
• Ingress protection Rating: IP67/IP69K
• Chemical Resistance: Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid
• UV Protection: UVB 400 hours
• Mounting Specs: Mounting Stud Gap (Centre to Centre) 78mm, Nuts thread: #10-32, Maximum torque: 0.8Nm

Product Dimensions

• 123.5mm (W) x 70mm (H)

Product Weight

• 155g

Electrical

• Operating Voltage Range: 8-32V
• Maximum Input Voltage: 32V
• Maximum Continuous Current Draw: <50mA

What's in the Box

• 1 x 8 Button CAN Keypad
• 1 x DTM4 Mating Connector Kit
• 1 x Link Sticker
• 1 x Keypad Button Insert - Link Logo

Connector

• TE Connectivity Deutsch DTM 4-pin 101-0156
