Link Air Temp Sensor (IAT1-8)

Models Supported

All Link ECUs.

Other aftermarket ECUs supporting NTC temperature sensors.

Specifications

Highlights

The Link Air Temperature Sensor has the following specifications:

• NTC thermistor temperature sensor.
• 1/8" NPT thread.
• Two-wire sensor.
• Compact metal body.
• Designed for intake air temperature measurement.
• Signal and Sensor Ground connections.
• Comes with Deutsch 2 way Connector Kit.

Product Dimensions

• 30mm(L)x55mm(W)x30mm(H)
• 1.18in(L)x2.17in(W)x1.18in(H)

Product Weight

• 5 grams (0.18 ounces)

Electrical

• Operating Voltage Range: 5V

What's in the Box

• Air Temp Sensor 1/8 NPT
• Deutsch 2 way Connector Kit

PCLink Calibration Name

• "Link NTC1-8 & IAT1-8" OR "Delphi AC IAT"

Raw Calibration Specs

• -40°C: 65,500 ohm
• -30°C: 51,791 ohm
• -20°C: 28,146 ohm
• -10°C: 15,873 ohm
• 0°C: 9,256 ohm
• 10°C: 5,572 ohm
• 20°C: 3,457 ohm
• 30°C: 2,205 ohm
• 40°C: 1,443 ohm
• 50°C: 965 ohm
• 60°C: 660 ohm
• 70°C: 462 ohm
• 80°C: 329 ohm
• 90°C: 238 ohm
• 100°C: 175 ohm
• 110°C: 131 ohm
• 120°C: 99 ohm
• 130°C: 76 ohm
• 140°C: 59 ohm
• 150°C: 47 ohm

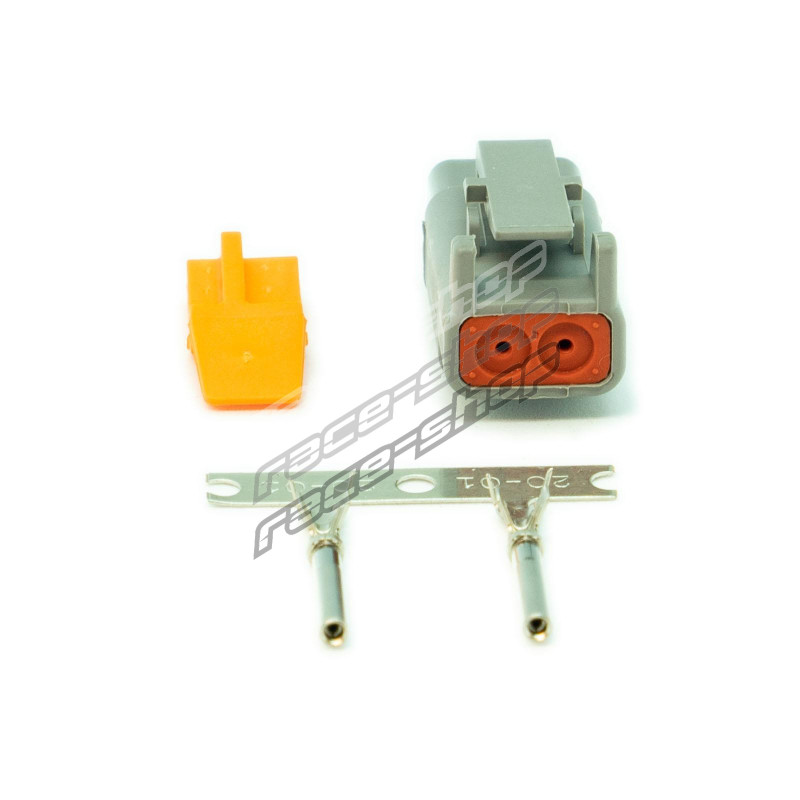

Connector

• TE Connectivity Deutsch DTM 2-pin
• Deutsch 2 way Connector Kit 101-0131
