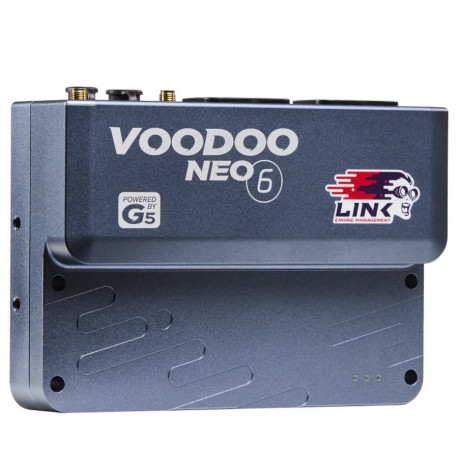

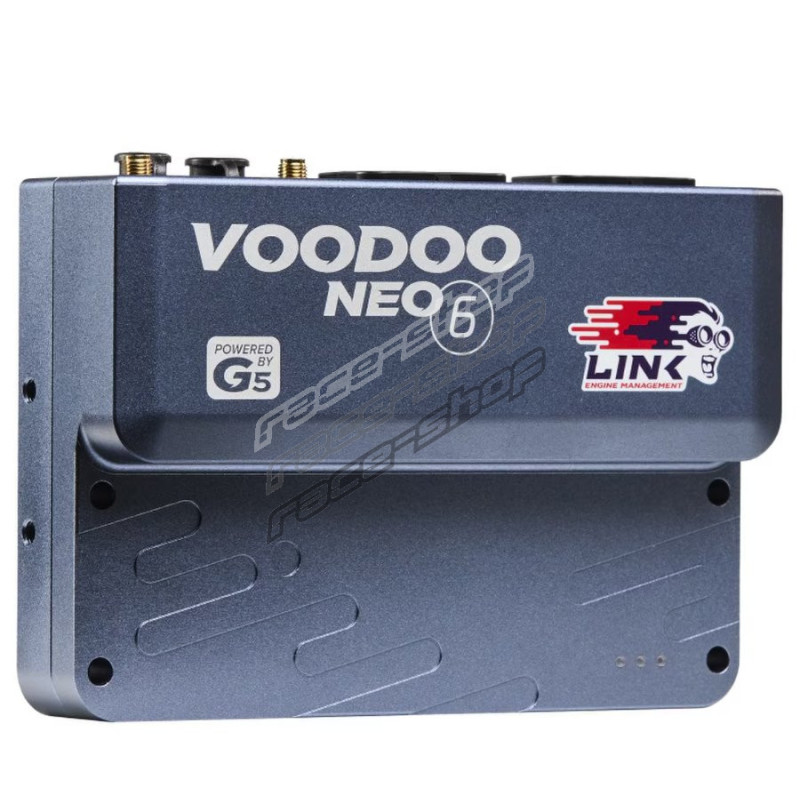

Link G5 Voodoo Neo 6

The next generation of engine management for many more engines.

8 cylinders with port or direct injection and direct spark,

6 cylinders with direct/port staged injection and direct spark

The G5 Voodoo processing units are the perfect choice for professional-level motorsport.

The G5 Voodoo Neo 6 works on a variety of vehicles. Please contact a LinkECU Reseller or Technical Support for advice regarding your specific project.

In the box:

• G5 Voodoo Neo 6 ECU
• USB-C Connection Cable
• WiFi Antenna
• 4m GPS Antenna (Magnetic or Adhesive Mount)
• USB-C and SMA Dust Covers
• QuickStart Guide (A5)
• Installer I/O Table (A3)
• Link stickers
• New comms module: Up to 10x faster log file download speeds, from minutes to seconds, and enhanced WiFi and GPS
• Built in ethernet
• 1GB onboard logging in data storage unit
• 1 onboard wideband
• CNC case, sealed enclosure
• 68 pins total (Link A and B 34 pin superseal connectors)
• K-line support
• New WEIPU CAN connector, which supplies power for the CAN-bus.

Highly customisable IO, using 2 types of multi purpose pins:

• ADIO pins and Injector/Digital-Input pins. These pins can act as inputs or outputs.
• Can now power up via the USB cable, making firmware updates and setting up the initial tune a breeze at your PC.
• Runs on the same highly acclaimed PC Link software as G4X, meaning you don’t need to learn a new software package. You can open both G4X and G5 log and map files in the same software (G4X Map can also be loaded into a G5 Voodoo Pro)
• More mounting options than ever, with through holes and threaded mount holes on the side and underneath.
• All NEOs are direct injection capable, including staged port-DI on NEO 4 and 6.

Requires “A” & “B” connector kits (not supplied).

Specifications

Inputs/Outputs

Control up to 8 cylinders with port or direct injection and direct spark, or 6 cylinders with direct/port staged injection, thanks to:

• 12 injector pins
• 8 ignition pins
• 6 aux. output pins
• (4 injector pins are shared with 4 DI Pins. You can only use each pin for either Injection or DI, not both at the same time.)
• 6 ADIO pins
• Highly customisable IO, using 2 types of multi purpose pins: ADIO pins and Injector/Digital-Input pins. These pins can act as inputs or outputs.
• ADIO are a unique pin type. ADIO can act as an Aux Output (switched or PWM), as an Analogue Input, or as a Digital Input, but cannot read PWM/frequency.
• Neo 6 has Inj/DI pins which are used as either an injector pin, Aux or a Digital Input pin. They can read PWM/frequency.
• Any unused injector/ignition pins can be used as an auxiliary pin.
• All ignition and auxiliary pins are back feed protected.
• 3 analog inputs
• 10 digital inputs
• 4 temperature inputs
• 2 knock inputs
• 2 trigger inputs
• 1 x wideband lambda controller
• Dual H-Bridge e-throttle control
• Dedicated ignition switch pin
• 5v sensor supply
• CAN 1 via Weipu connector. CAN connector now supplies power and ground.

Communications

• USB-C (cable included)
• Power over USB
• WiFi: Connect directly to the ECU via built-in Wifi Access Point, or add it to an existing network (antenna included)
• CAN: New WEIPU connector supplies power for CAN devices
• Ethernet: Built in ethernet which can function like USB. Also adds the ability to connect to the ECU over a network.
• GPS: Functional when GPS antenna connected (antenna included)

Data Logging

• 1gb logging capacity
• Logging over WiFi
• 100kHz max. total logging rate
• 250 logging channels

Size & Weight

• Length: 107mm (4.21 inches)
• Width: 158mm (6.22 inches)
• Max side height: 45mm (1.77 inches)
• Weight: 730grams (25.75 ounces)

Mounting

• 4x M5 threaded mount holes on the sides for bracket mounting
• 4x M5 threaded mount holes on the underside for clean mounting
• 4 x 5.5mm unthreaded through holes for mounting through (designed for use with M5 bolts)

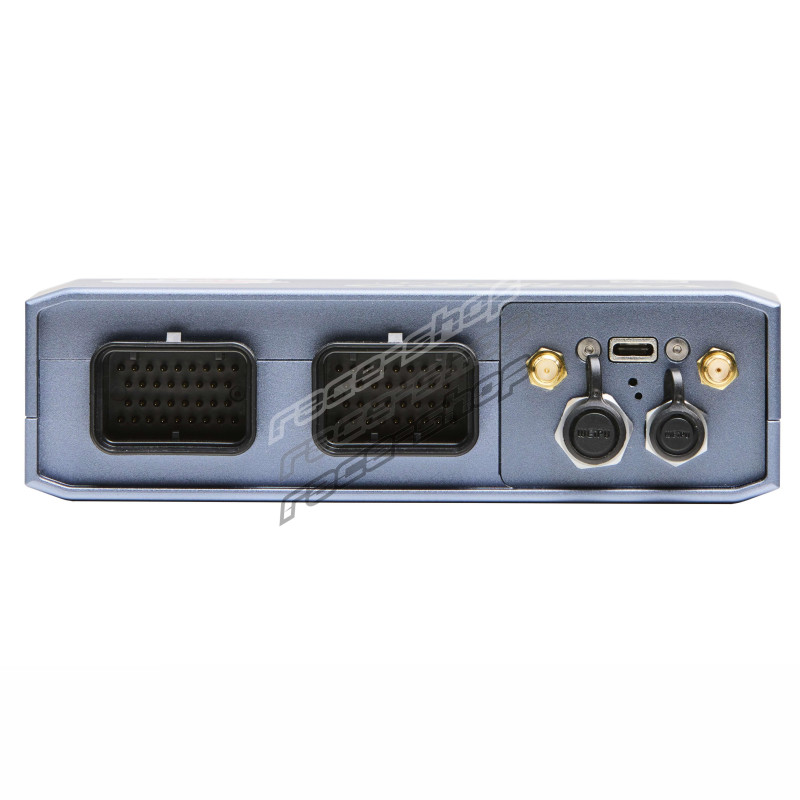

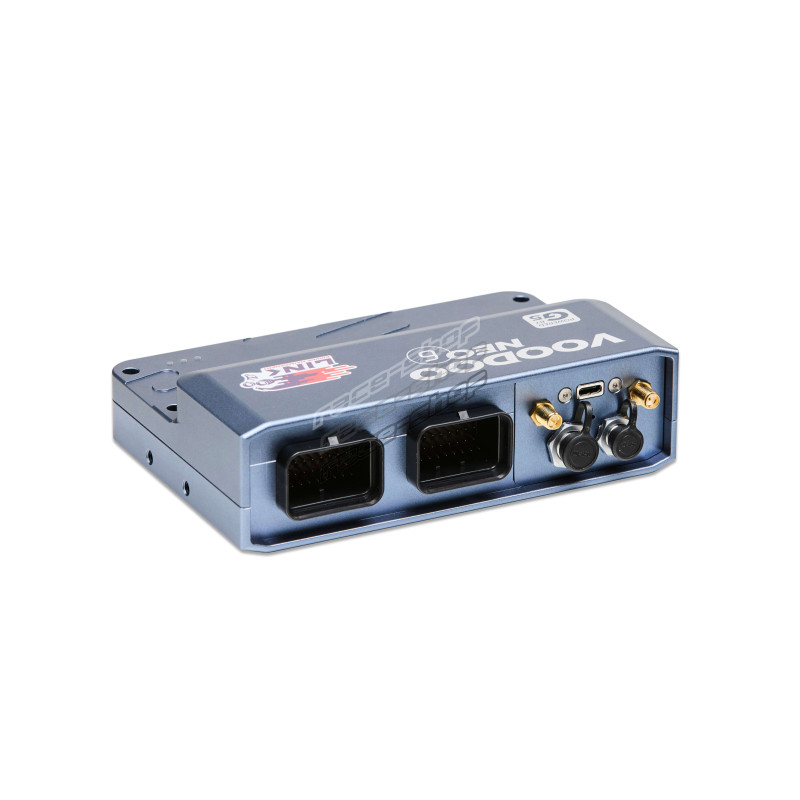

Connectors

A Header

• Link Pin Kit A
• TE Superseal 1.0

B Header

• Link Pin Kit B
• TE Superseal 1.0

Wi-Fi

• Wi-Fi Antenna
• RP-SMA (reverse polarity)

GPS

• SMA

USB

• USB Type-C

Ethernet

• WEiPU SF810B/P8

CAN1

• WEiPU SF610B/P4
