Link B Loom Long (5LB)

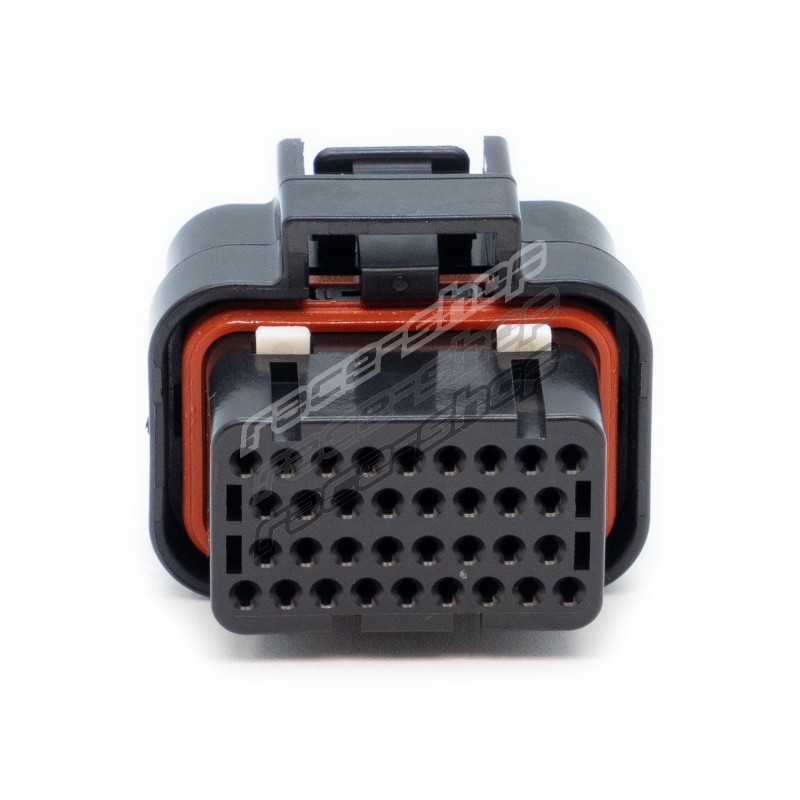

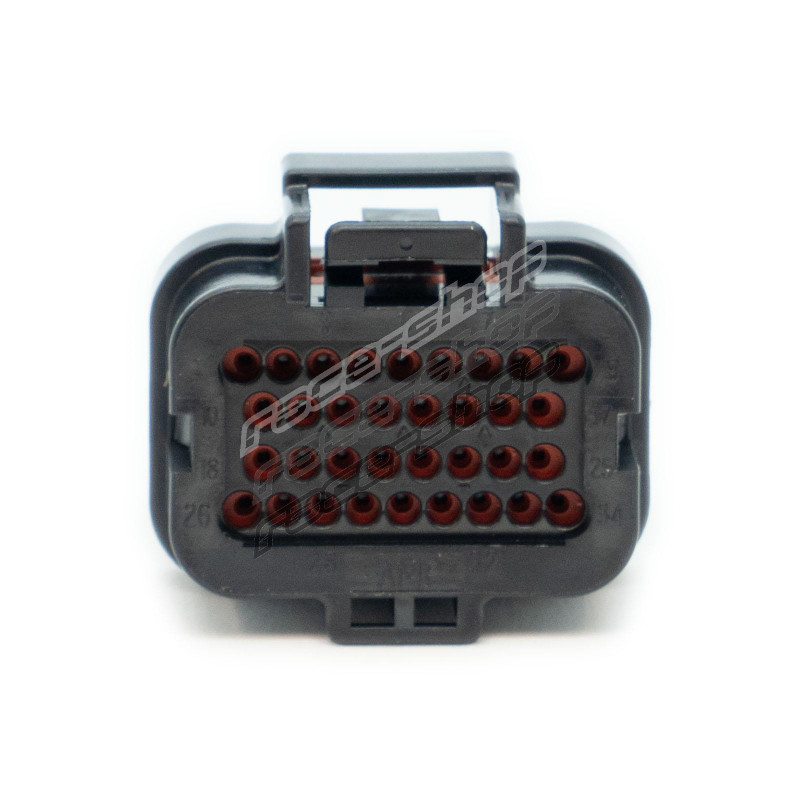

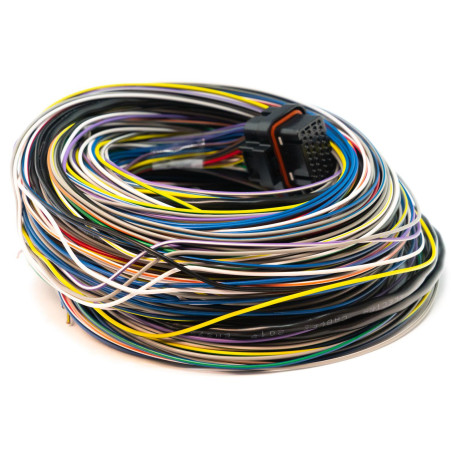

A high-quality, pre-assembled wiring loom for custom installations using compatible Link wire-in ECUs. Also commonly referred to as a wiring harness or flying lead, it is terminated with a SUPERSEAL 1.0 connector at one end, and is unterminated at the other. The 5m Link B Loom provides a convenient and cost-effective starting point for a professional ECU installation without the time, tooling and expense required to terminate the ECU connector yourself.

While designed for compatible Link wire-in ECUs, this loom is not limited to Link ECU applications. It can also be used for custom wiring projects requiring the same TE Connectivity SUPERSEAL 1.0 connector and compatible pin configuration.

Please note: Link wire-in ECUs that use two ECU connectors require both an A Loom and B Loom. The 5m A Loom is sold separately (PN 101-0008).

Models Supported

All Link G5 Wire-in ECUs

Link G4X StormX

Link G4X FuryX

Link G4X XtremeX

Link G4+ Storm Black

Link G4+ Fury

Link G4+ Xtreme

Link G4+ Thunder

Link G4 Xtreme

Vipec V88

Vipec i88

All wires are colour coded to match the Link Wire-in manuals. All positions populated.

This loom is also available in 0.4m and 2.5m lengths.

Specifications

The Link looms use 0.75mm2 wire for the 2 red wires (pin A5 & B5) and the 4 black power grounds (A25,A34,B25,B34). All other wires are 0.5mm2.

Product Dimensions

• 5000mm(L)x40mm(W)x35mm(H)
• 196.85in(L)x1.57in(W)x1.38in(H)

Product Weight

• 1,790 grams (63.14 ounces)

Material

• 5 meters

Electrical

• Operating Voltage Range: 0-24V
• Maximum Input Voltage: 60V
• Maximum Continuous Current Draw: 5A & 14A
• Gauges of wire: 20AWG/0.5mm2 & 19AWG/0.75mm2

What's in the Box

• Loom B 5m

Connector

• Link B SUPERSEAL 1.0
