Link Three Channel Inductive Igniter (I3)

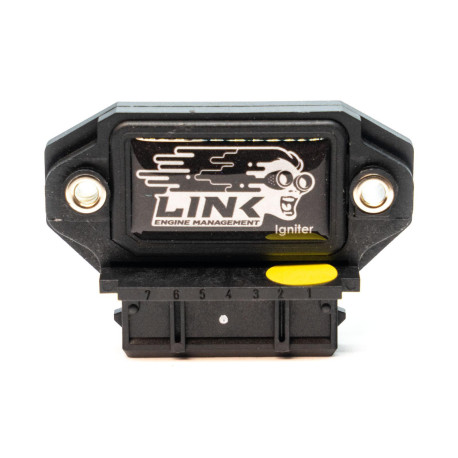

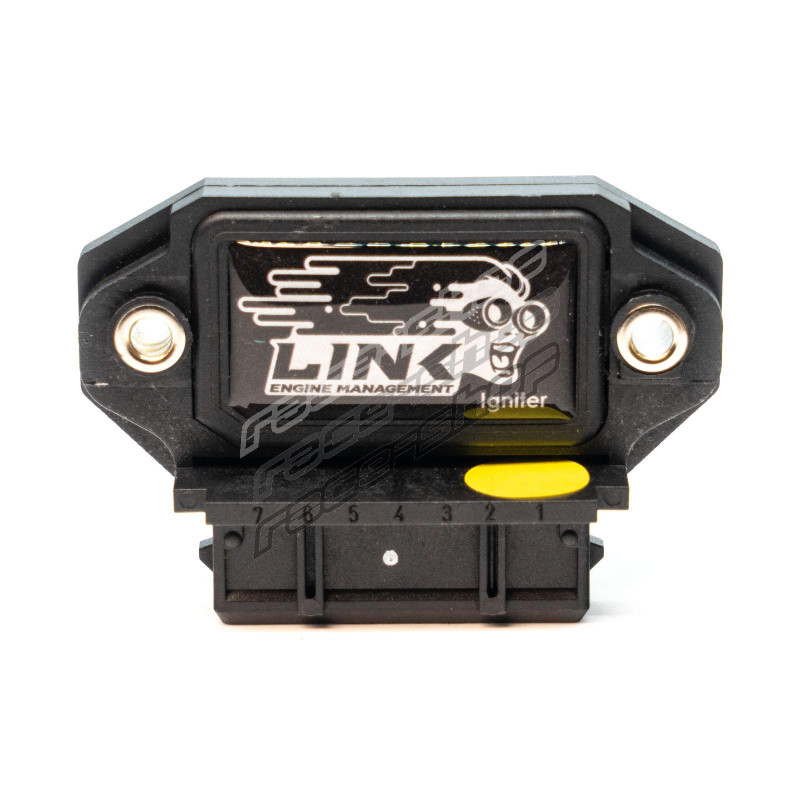

The Link 3 Channel Ignitor is designed for applications using ignition coils without built-in igniters. Capable of driving up to three non-transistorised ignition coils, it provides a reliable ignition driver solution for a wide range of motorsport and performance applications, including wasted spark on 6 cylinder engines, coil-per-plug setups on 3 cylinder engines or using multiple igniters for 6 and 8 cylinder set-ups.

Models Supported

Suitable when using ignition coils without built-in igniters.

Warnings

Mount to a suitable heatsink or metal surface using heat transfer compound.

Protect the connector from water and moisture.

Do not parallel multiple ignition outputs onto a single channel.

The Link 3 Channel Ignitor has the following specifications:

ECU Tuning Features

• Drives up to 3 ignition coils
• Suitable for non-transistorised ("dumb") ignition coils
• Triple Darlington transistor design
• Bosch 7-pin Jetronic connector

Specifications

Product Dimensions

• 71mm(L) x 48mm(W) x 21mm(H)
• 2.80in(L) x 1.89in(W) x 0.83in(H)

Product Weight

• 45 grams (1.59 ounces)

Electrical

• Operating Voltage Range: 6-18V
• Maximum Input Voltage: 400V
• Primary current up to 8.5A per channel

Misc.

• Operating Temperature -40°C to +110°C

What's in the Box

• Three Channel Igniter
• Wire side Ignitor/Map
• Rubber boot 7 way Bosch
• Printed Accessory instructions

Connector

• Bosch 7-pin Jetronic
