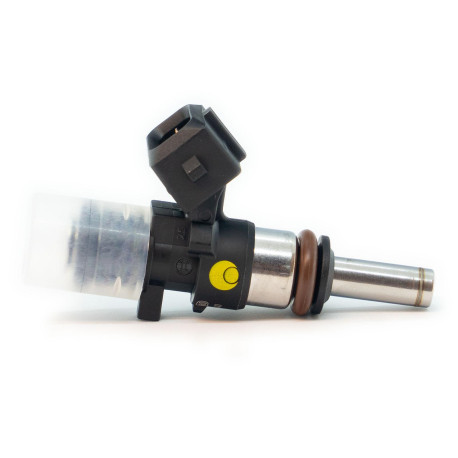

Link Bosch EV14 1000cc Injector (Set of 4)

The Link Bosch EV14 1000cc Injector Set includes four genuine high-impedance EV14 fuel injectors, delivering 980cc/min of fuel flow at 3 Bar. Featuring a compact body, extended tip nozzle and single cone spray pattern, they provide reliable fuel delivery for a wide range of performance applications running pump fuel, race fuel and ethanol blends including E85.

Warnings

Sold as a set of four injectors.

These injectors are not flow matched or colour matched.

Highlight Features

• Set of 4 injectors.
• 980cc/min @ 3 Bar.
• High impedance: 12 ohm, no need for Ballast resistors.
• Compact body.
• Extended tip nozzle.
• Single cone spray pattern.
• Jetronic connector.
• Pump fuel, race fuel and ethanol blends including E85.
• Switched 12V power supply.
• Injector driver from ECU.
• No dedicated polarity.

Specifications

Product Dimensions

• 63.3mm Overall length.
• 39mm Body length.
• 14.54mm Top Oring
• 14.4mm Bottom Oring

Electrical

• Operating Voltage Range: 6-16.5V
• Maximum Input Voltage: 16.5V
• Maximum Continuous Current Draw: 1.38A ea.

What's in the Box

• Bosch EV14 Injector x4
• Printed Accessory instructions

Connector

• Bosch 2 Way Plug Kit (PKB2), 101-0051.
