Link 8 Bar MAP Sensor EU (MAP8EU)

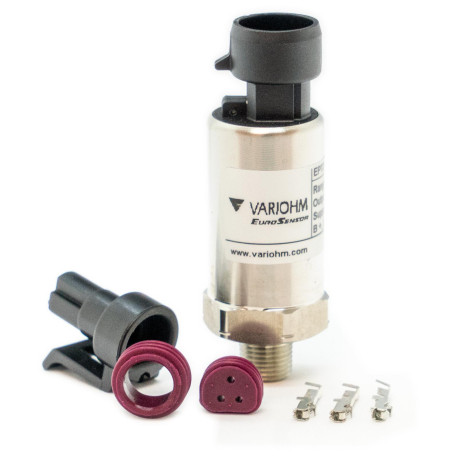

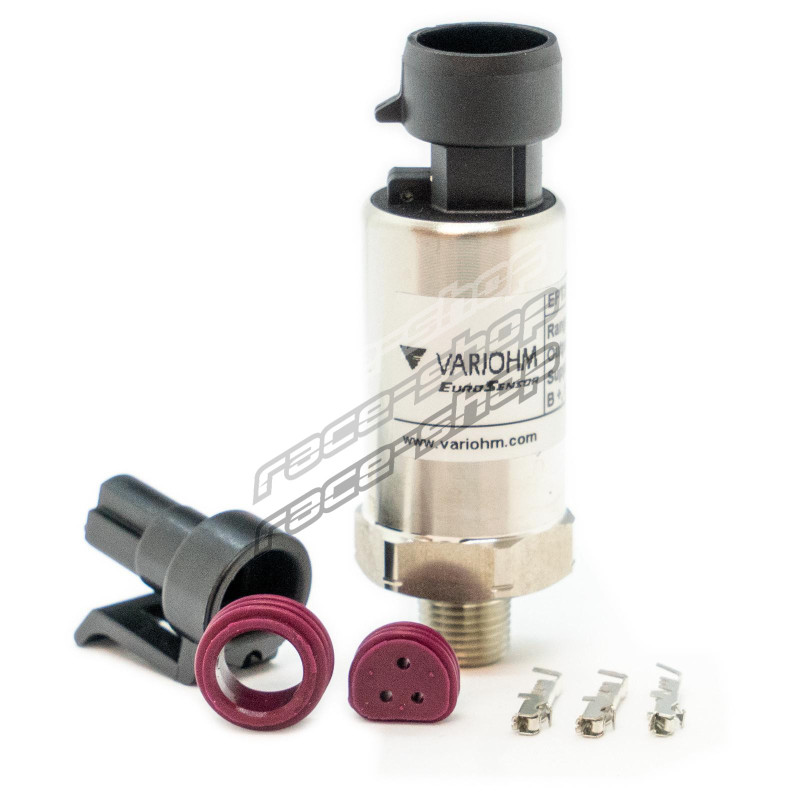

The Link 8 Bar MAP Sensor is a high-accuracy manifold absolute pressure (MAP) sensor designed for turbocharged and supercharged engines operating at up to 101 psi (7 bar) of boost. Featuring a rugged stainless steel construction and fast response time, it delivers stable and accurate pressure measurement for reliable engine tuning in demanding motorsport and high-performance applications.

Models Supported

All Link ECUs.

Other aftermarket ECUs with a 5V ratiometric analogue input.

Up to 101 psi (7 bar) boost pressure.

Warnings

Designed for use with a regulated 5V sensor supply.

Using Link G4/G4+/G4X/G5 ECU's select the MAP sensor type in PC Link as 'Variohm 8 Bar'.

Not recommended for naturally aspired engines or boost levels exceeding 7 BAR / 101 psi.

Specifications

Highlights

The Link 8 Bar MAP Sensor has the following specifications:

• Pressure range: -1 to +7 bar (-14.5 to +101 psi).
• 0.5-4.5V ratiometric output.
• 5V supply voltage.
• High-accuracy piezoresistive sensing element.
• Stainless steel housing.
• Fast response time (<1ms).
• Excellent vibration and shock resistance.
• Operating temperature: -40°C to +125°C.
• IP66 rated.
• Packard Metri-Pack connector.
• 1/8" NPT Male pressure port.
• Comes with TI Sensor Connector Kit.

Product Dimensions

• 70mm(L)x25mm(W)x25mm(H)
• 2.76in(L)x0.98in(W)x0.98in(H)

Product Weight

• 65 grams (2.29 ounces)

Electrical

• Operating Voltage Range: 5V
• Maximum Input Voltage: 5V

What's in the Box

• MAP Sensor 8 Bar EU
• TI Sensor Connector Kit
• Printed Accessory instructions

PCLink Calibration Name

• "8 Bar Variohm"

Raw Calibration Specs

• 0.5V = 0kPa, 4.5V = 800kPa

Connector

• TI Sensor Connector Kit 101-0130
