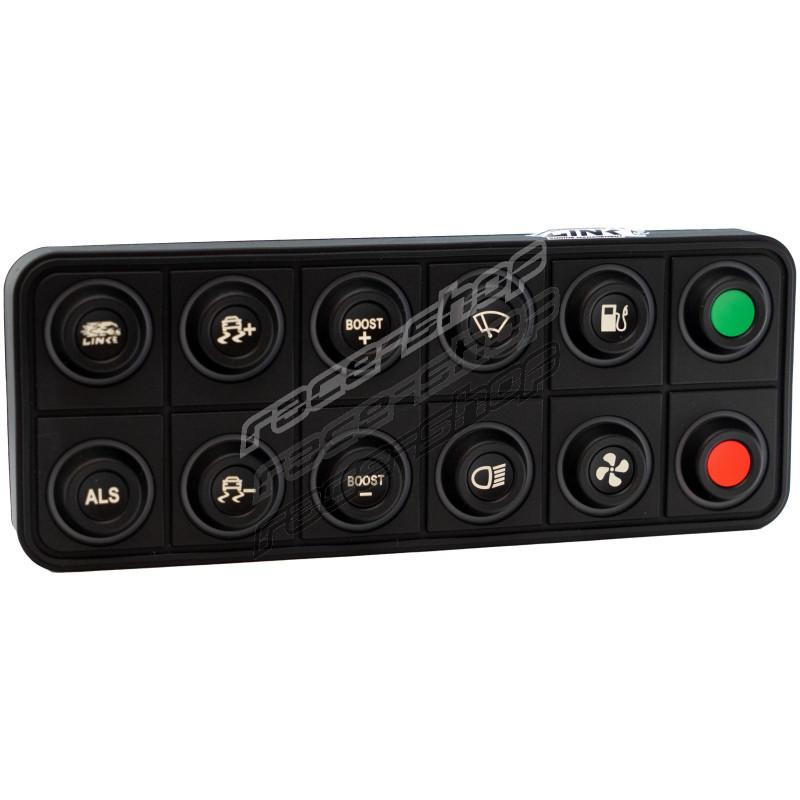

Link CAN Keypad 12 button

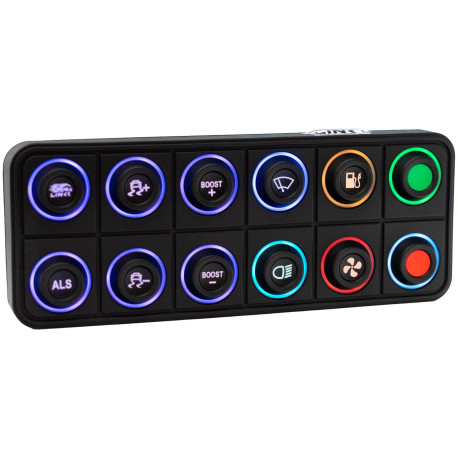

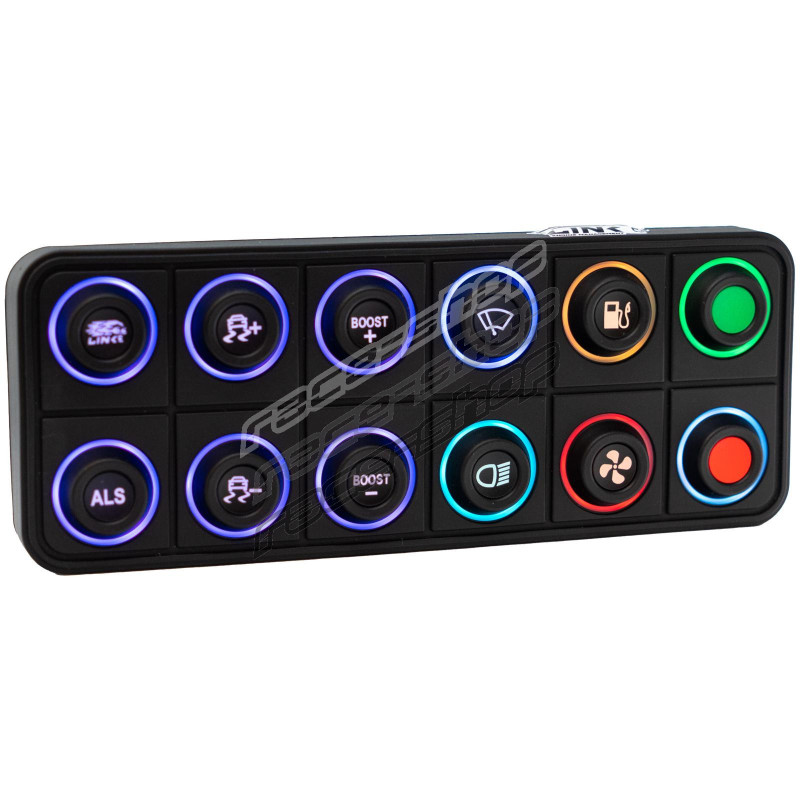

Custom button inserts and configurable RGB indicator rings per button allow for extremely flexible set-ups. The keypad is designed for ultimate reliability - IP67/IP69K water and dust resistant, -40 to +70 operating temperature range, UV 400hrs, salt spray resistant and switches rated to 3 million operations. Can be installed both inside and outside, perfect for street, track and off-road use.

Models Supported

Compatible with all G4X and G5 ECUs. Built-in support from G4X PC Link vers 6.22 onwards

Important

Keypad ships with empty button inserts, inserts need to be selected and purchased individually.

1 x Link ECU Logo Button Insert included in box loose.

CAN Configurable with G4X PC Link

• Change LED backlight, individual button indicator ring colour, programmable to show change in status, flashing option, multiple modes including momentary, latched and toggle.

Customizable Button Inserts

• The replacement system for individual inserts makes modifying the keypad layout simple and economical.

IP67/IP69K Waterproof rating

• Guaranteed to be dust tight and sealed against water immersion to a depth of 1 meter for up to 1 hour. The IP69K rating provides protection against high pressure water at high temperature spray downs.

Specifications

Highlights

• Switch Life: 3 million operations
• CANopen Node ID: 0x15 (21)
• Default Baud Rate: 1000kbit/s
• Ingress protection Rating: IP67/IP69K
• Chemical Resistance: Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid
• UV Protection: UVB 400 hours

Product Dimensions

• 18x7x4.5cm

Product Weight

• 210g

Electrical

• Operating Voltage Range: 8-32V
• Maximum Input Voltage: 32V
• Maximum Continuous Current Draw: <50mA

Misc.

• Mounting Stud Gap (Centre to Centre) 136.14mm
• Nuts thread: #10-32
• Maximum torque: 0.8Nm

What's in the Box

• Keypad Help Manual Card
• CAN Keypad Insert - Link
• Blink CAN Keypad 12 position + DTM4
• Link sticker - Right facing - Clear Gloss - Rectangle 150x72
• Deutsch 4-way Connector Kit

Connector

• TE Connectivity Deutsch DTM 4-pin (101-0156)
• DTM4 Connector for CAN and Power
• Black = Ground
• Red = Power
• White = CAN High
• Blue = CAN Low
