Link Combined Pressure and Temperature Sensor (CPTS)

Models Supported

All Link ECUs.

Other aftermarket ECUs with analogue pressure and temperature inputs.

Warnings

Not suitable for water/coolant.

Maximum permissible overpressure: 20 bar.

Recommended installation torque: 37.5 +/-2.5 Nm.

Install with the sensing tip pointing downwards, within +/-45deg of vertical for optimum performance.

Specifications

Highlights

The Link Combined Pressure and Temperature Sensor has the following specifications:

• Genuine Bosch combined pressure and temperature sensor.
• Measures pressure and temperature simultaneously.
• Pressure range: 0 to 10 bar.
• Temperature range: -40°C to +140°C.
• M10 x 1 thread with 45deg cone seat.
• Supplied with 5-pin Bosch Trapezoid connector kit.

Product Dimensions

• 55mm(L)x30mm(W)x30mm(H)
• 2.17in(L)x1.18in(W)x1.18in(H)

Product Weight

• 30 grams (1.06 ounces)

Electrical

• Operating Voltage Range: 4.75-5.25V
• Maximum Input Voltage: 5.25V

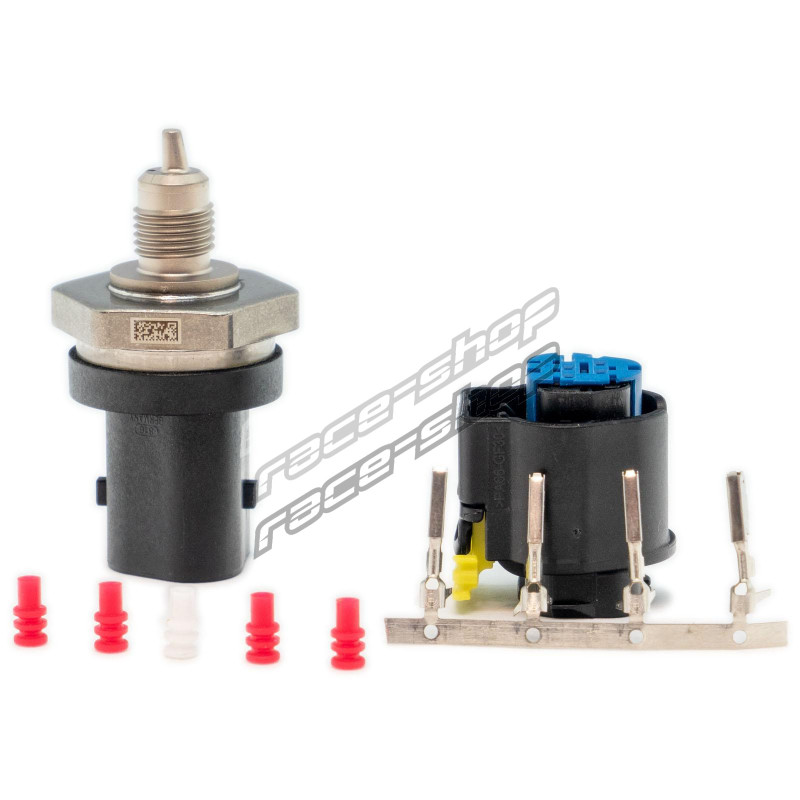

What's in the Box

• Bosch Liquid Pressure/Temp Combined Sensor.
• 5-pin Bosch Trapezoid connector kit.
• Printed Accessory instructions.

PCLink Calibration Name

• Pressure: "Bosch 10Bar 0 261 230 340"
• Temperature: "Bosch NTC 0 261 230 340"

Raw Calibration Specs

• Pressure: 0.5V = 0kPa, 4.5V = 1000kPa
• -40°C: 44,864 ohm
• -35°C: 33,676 ohm
• -30°C: 25,524 ohm
• -25°C: 19,525 ohm
• -20°C: 15,067 ohm
• -15°C: 11,724 ohm
• -10°C: 9,195 ohm
• -5°C: 7,266 ohm
• 0°C: 5,784 ohm
• 5°C: 4,636 ohm
• 10°C: 3,740 ohm
• 15°C: 3,037 ohm
• 20°C: 2,480 ohm
• 25°C: 2,038 ohm
• 30°C: 1,707 ohm
• 35°C: 1,398 ohm
• 40°C: 1,175 ohm
• 45°C: 978.9 ohm
• 50°C: 825 ohm
• 55°C: 698.5 ohm
• 60°C: 594 ohm
• 65°C: 507.2 ohm
• 70°C: 434.9 ohm
• 80°C: 323.4 ohm
• 85°C: 280.4 ohm
• 90°C: 244 ohm
• 95°C: 213 ohm
• 100°C: 186.6 ohm
• 105°C: 164 ohm
• 110°C: 144.5 ohm
• 115°C: 127.8 ohm
• 120°C: 113.3 ohm
• 125°C: 100.7 ohm
• 130°C: 89.8 ohm
• 135°C: 80.2 ohm
• 140°C: 71.9 ohm
• 150°C: 55 ohm

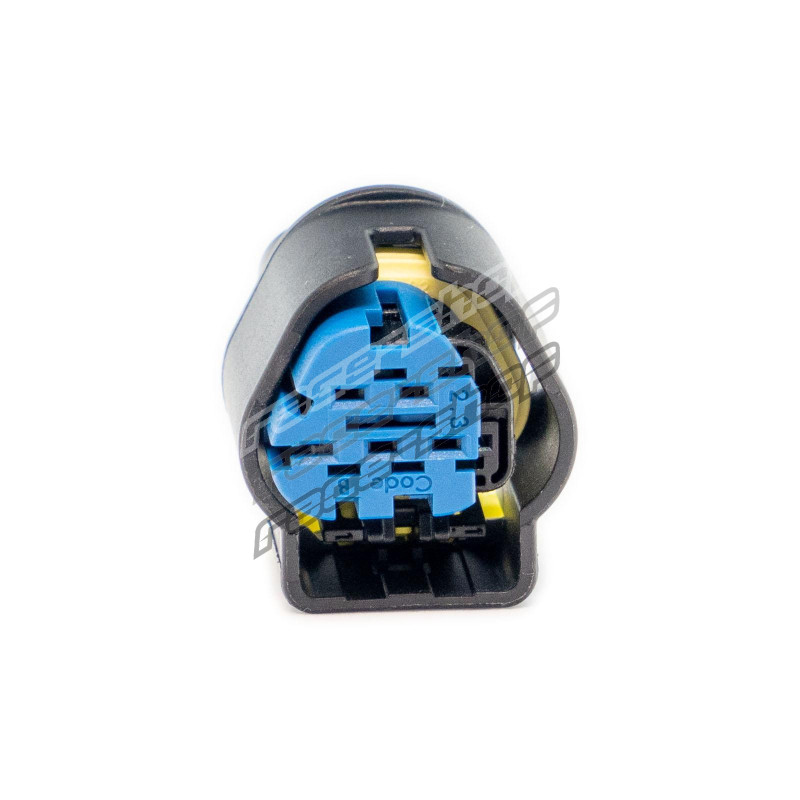

Connector

• 5-pin Bosch Trapezoid
