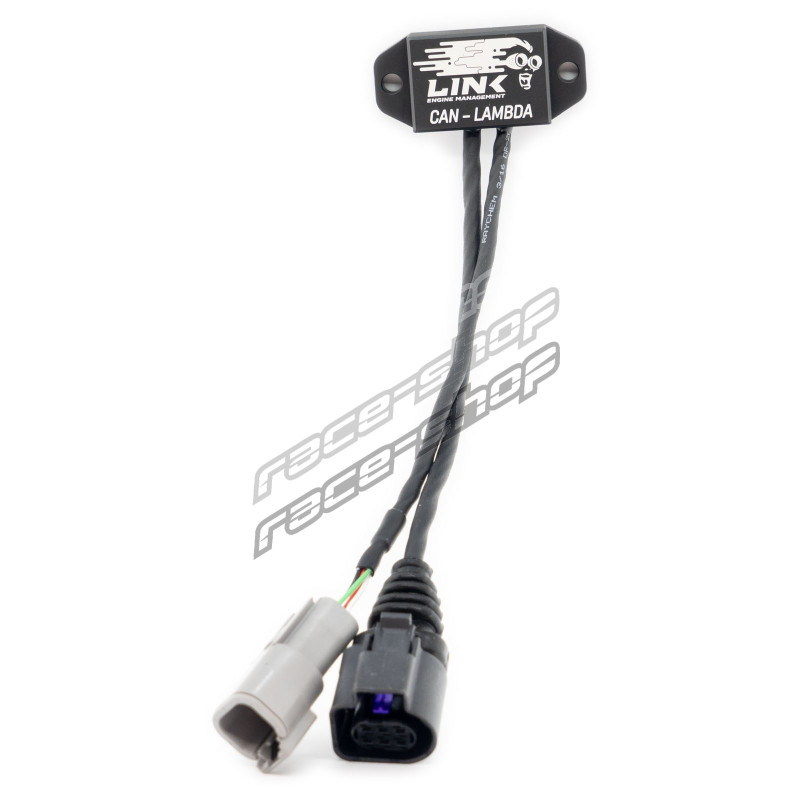

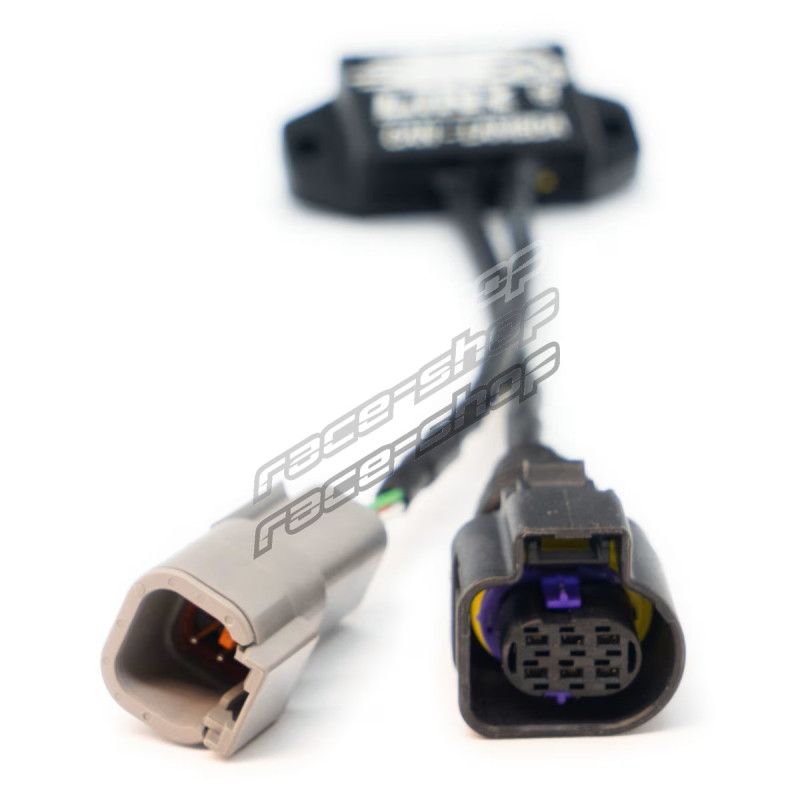

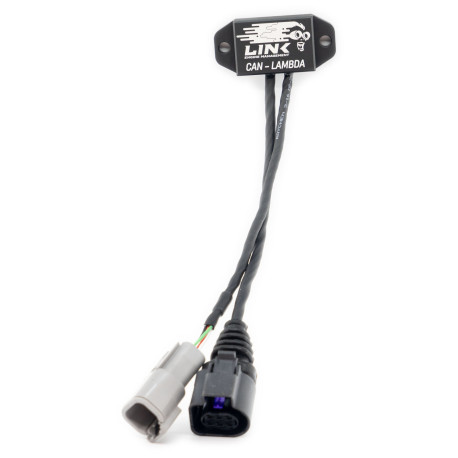

Link CAN Lambda (CANLAM)

Designed and manufactured by LinkECU, it delivers fast, reliable lambda data without the signal loss, electrical noise or calibration issues associated with analogue wideband controllers.

Models Supported

All Link G4+, G4X and G5 ECUs.

Other aftermarket ECUs supporting the Link CAN Lambda protocol.

Warnings

One CAN Lambda module is required for each wideband sensor.

Supports up to eight CAN Lambda modules on a compatible Link ECU.

Modules are supplied pre-configured for a single-sensor installation.

When used with a Link G4+/G4X Plug-in ECU, a Link CANPCB cable (PN 101-0022) and CANF (PN 101-0020) field-installable CAN plug are required to access the ECU CAN port.

The Bosch LSU4.9 sensor is sold solely for aftermarket use. As Bosch's warranty excludes aftermarket applications, no warranty is provided on the LSU 4.9 Sensor.

LinkECU have prepared some information about how to increase sensor lifespan below.

The CAN-Lambda’s ability to measure the proportion of oxygen in exhaust gases makes it an essential tool for accurately tuning fuel mixtures as well allowing your ECU to make tuning adjustments on the fly.

Being fully digital the CAN Lambda’s powerful LSU 4.9 sensor will eliminate any loss of signal, risk, delays and errors that analogue alternatives cause. The CAN-Lambda never requires free air calibration.

Box Contents

• CAN Lambda device

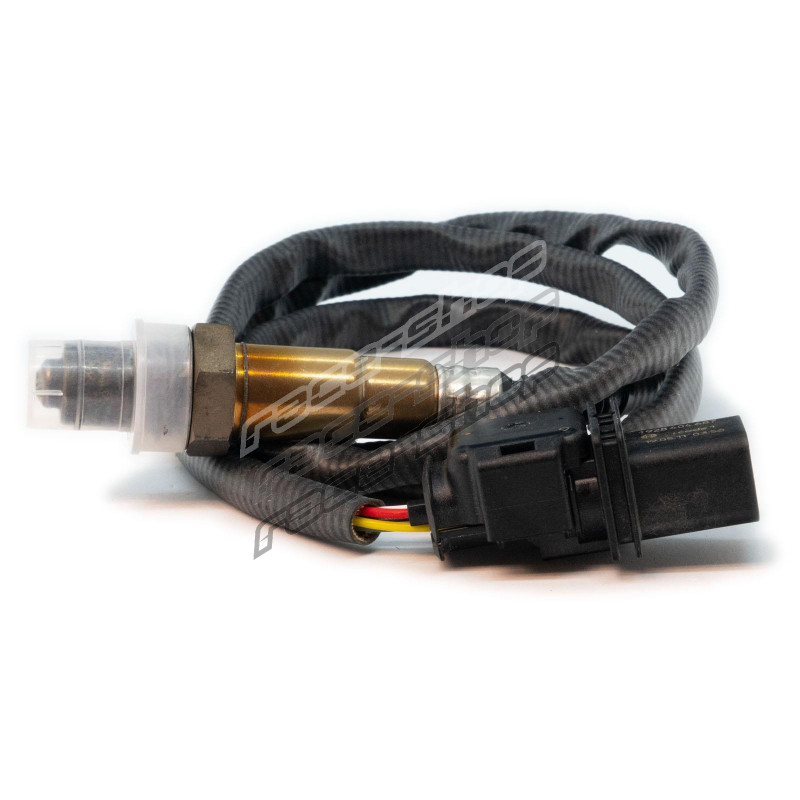

• Bosch LSU4.9 Sensor

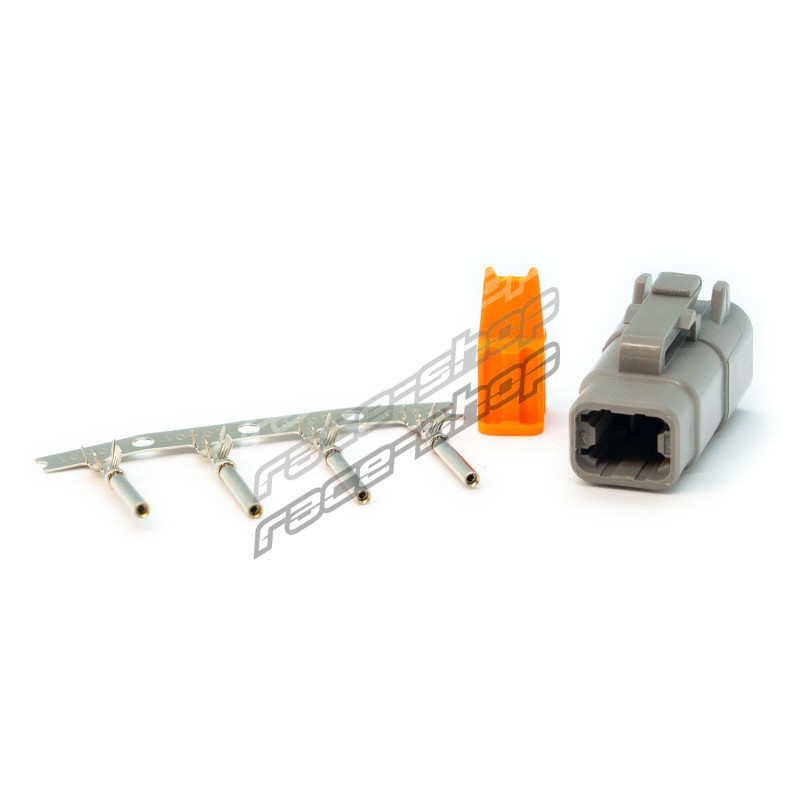

• Deutsch 4-Way Connector Kit

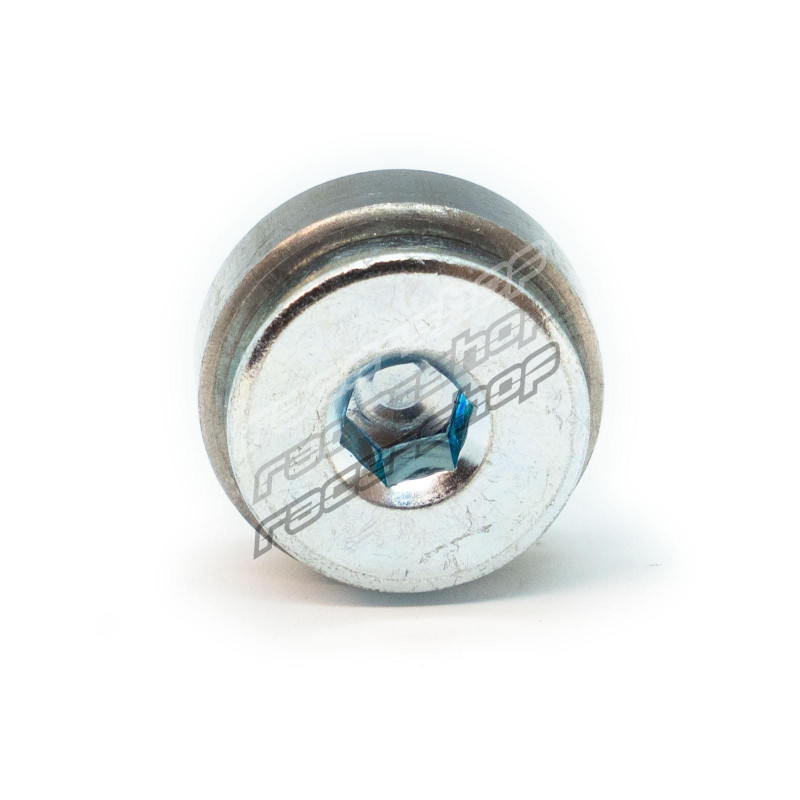

• O2 Bung and Plug
• 2 Large Stickers
• 2 Small Stickers
• Quick Start Guide

Specifications

Highlights

The Link Wideband O2 Sensor has the following specifications:

• Designed and manufactured by LinkECU.
• Includes Genuine Bosch LSU4.9 wideband lambda sensor.
• Fully digital CAN communication.
• No free-air calibration required.
• Lambda measuring range: 0.67 to 10.
• CAN bit rates: 1 Mbit/s, 500 kbit/s, 250 kbit/s and 125 kbit/s.
• Includes Deutsch 4-way connector kit
• Includes O₂ bung and plug

Electrical

• Operating Voltage Range: 6-23V
• Maximum Input Voltage: 37V
• Maximum Continuous Current Draw: 3A

What's in the Box

• CAN Lambda Module
• Bosch LSU4.9 Sensor
• Deutsch 4-Way Connector Kit
• O2 Bung and Plug
• Link Stickers
• Quick Start Guide

Connector

• Deutsch 4-Way Connector Kit
