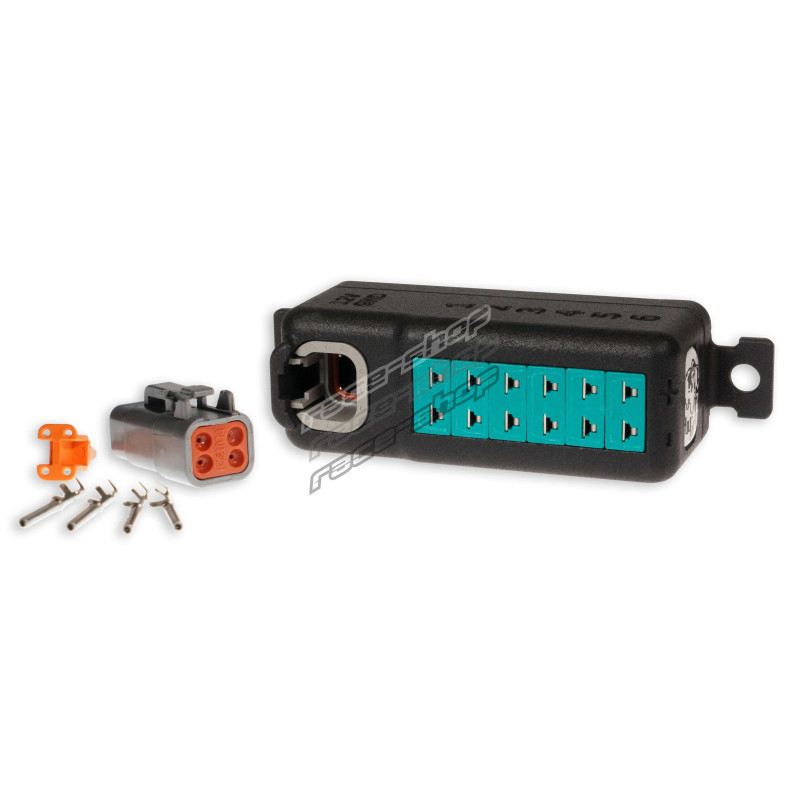

Link TCC06 6 Channel EGT to CAN Module

Ideal for monitoring individual cylinder exhaust gas temperatures, the TCC06 can also be used for a range of other temperature measurements, including pre- and post-intercooler, turbocharger housing, cylinder head, coolant and oil temperatures. Monitoring individual EGTs allows cylinder-to-cylinder temperature differences to be identified and the data used for tuning, individual cylinder trim and engine protection strategies.

Each of the 6 Type-K inputs features cold-junction compensation, with temperature data transmitted directly over CAN to the ECU. The module connects through a four-pin DTM connector using Link's standard CAN pinout and is pre-configured for Link ECU integration.

Built-in wireless connectivity allows the TCC06 to be configured and updated from a smartphone or PC, while also providing access to live temperature readings and thermocouple status.

Models Supported

All Link ECUs with CAN Bus support.

6 x cold junction compensated type-K inputs.

Four-pin DTM connector & miniature K-sockets.

CAN Bus connection to ECU (Pre-Configured for Link ECU).

Measuring range from 0 to 1250°C (32 to 2282degF) with 0.25°C resolution.

Detection of short circuit to ground or if no type-K is connected.

Standard mini k thermocouple connector.

Full configuration and monitoring over wireless.

Adjustable sample frequency up to 100Hz.

Specifications

TCC Set-Up and Installation Guide

Highlights

• DTM 4 CAN Pinout (Supports Links CAN pinout schema and CAN cables range)
• Pin 1: 12V
• Pin 2: Ground
• Pin 3: Can Low
• Pin 4: Can High
• Accuracy: maximum 2% deviation

Configuration Options

The module can be configured via wireless:

• Can Speed: 125kbps, 250kbps, 500kbps, 1Mbps.
• Emulation: Standard, All major aftermarket EGT/Thermocouple to CAN Modules.
• Change of standard Can Bus ID.
• Change Big/Little Endian.

Product Dimensions

• 115mm(L)x35mm(W)x35mm(H)
• 4.53in(L)x1.38in(W)x1.38in(H)

Product Weight

• 95 grams (3.35 ounces)

Electrical

• Operating Voltage Range: 12V

What's in the Box

• 1 x CAN EGT Module - custom Link version
• 1 x DTM4 Mating Connector Kit
• 2 x Link Stickers

PCLink Calibration Name

• To setup a Link TCCXX in PCLink a provided LCS file must be used. First open the CAN Setup dialog, setup your desired Receive User Stream and set the ID to match the CAN ID setup in the TCCXX device.
• If using a TCC08, a second Receive User Stream must be setup one CAN ID after the first to receive EGT values 5-8.
• Move over to the Streams tab then select the corresponding stream. Select Load Stream then select the correct stream for your device.
• Please refer to the Support Section linked below for full set-up instructions.
