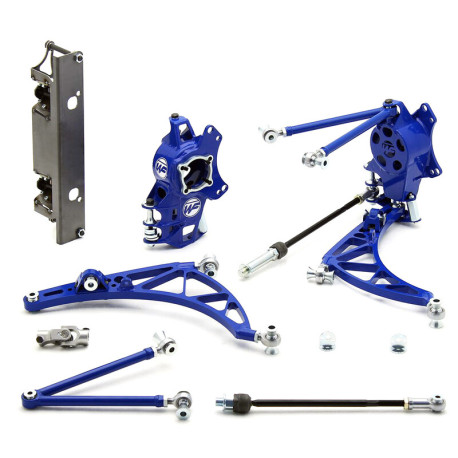

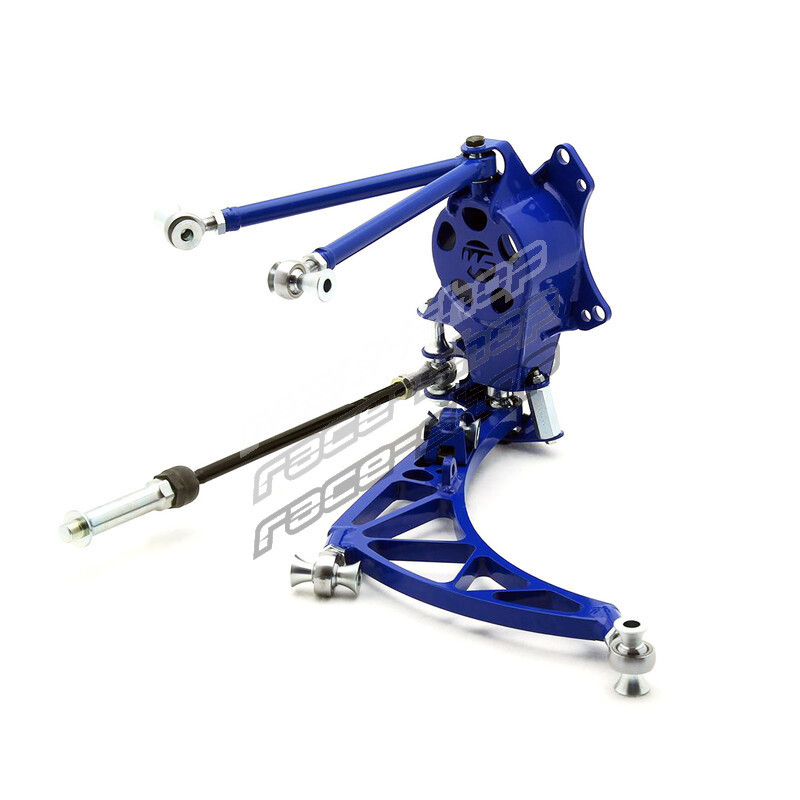

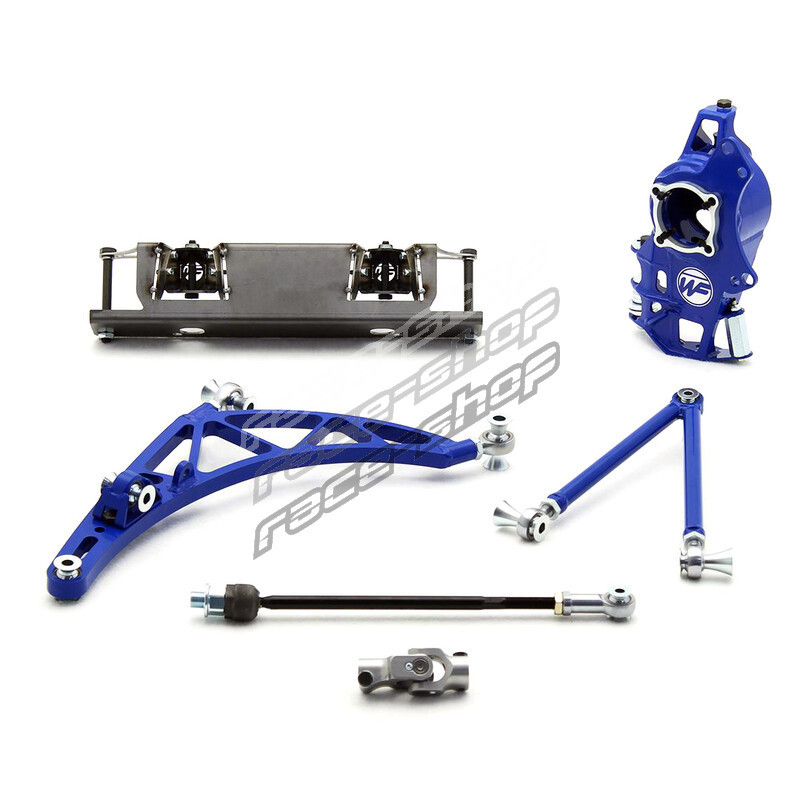

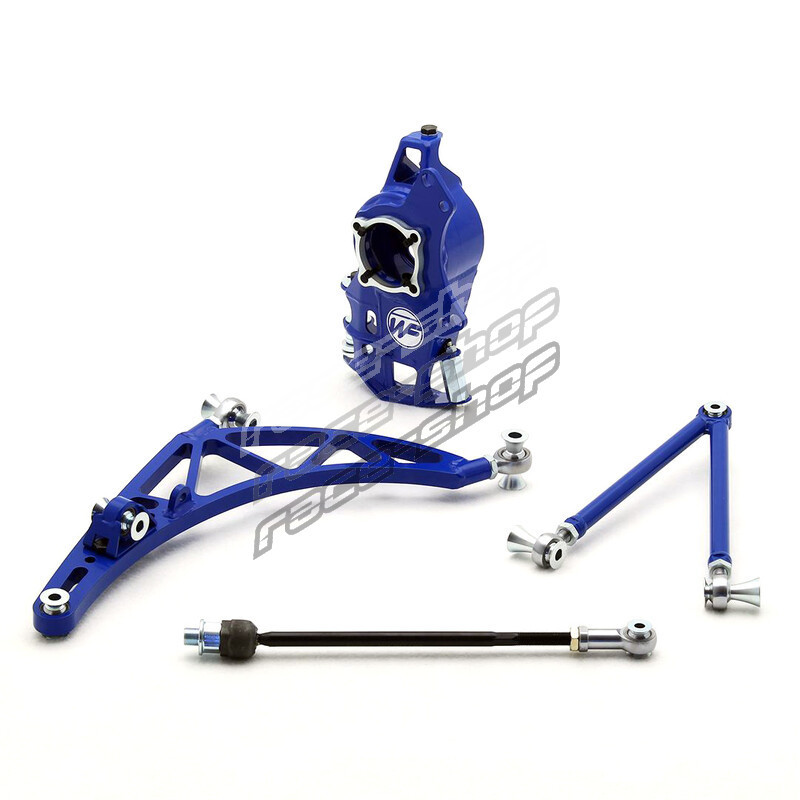

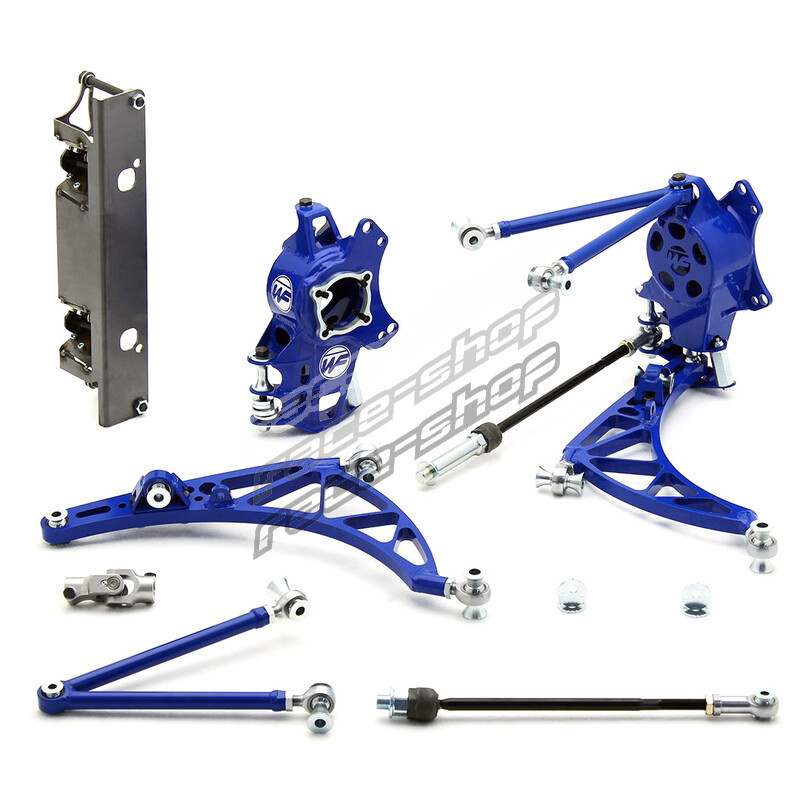

WISEFAB lock kit for Mazda RX-8 (LHD)
With increased steering lock, corrected roll centre, camber adjustment and an Ackermann reduction, this kit will offer over 60° of drift optimised steering lock. This kit is "FD Legal", meaning the top mount stays within OEM specification - making the kits eligible for competition worldwide.
New product
WFR80 LHD
Frequently bought together
With increased steering lock, corrected roll centre, camber adjustment and an Ackermann reduction, this kit will offer over 60° of drift optimised steering lock. This kit is "FD Legal", meaning the top mount stays within OEM specification - making the kits eligible for competition worldwide.
Product Features:
- To suit Mazda RX-8
- Requires a BMW E46 steering rack
- Over 60° of steering angle
- Corrected roll centre
- Ackermann angle reduction
- Precise camber adjustment
Fruit of the research and hard work by the Wisefab engineers, this kit ensures perfect alignment of the front axle. Even at full lock, the wheels stay flat on the ground without excessive camber. Guaranteeing you absolute control of the vehicle, even in extreme situations. Using extensive R&D and the latest fabrication methods, Wisefab bring you a kit that ensures excellent geometry, huge steering lock and durability suited to the highest levels of competition.
Kit contents :

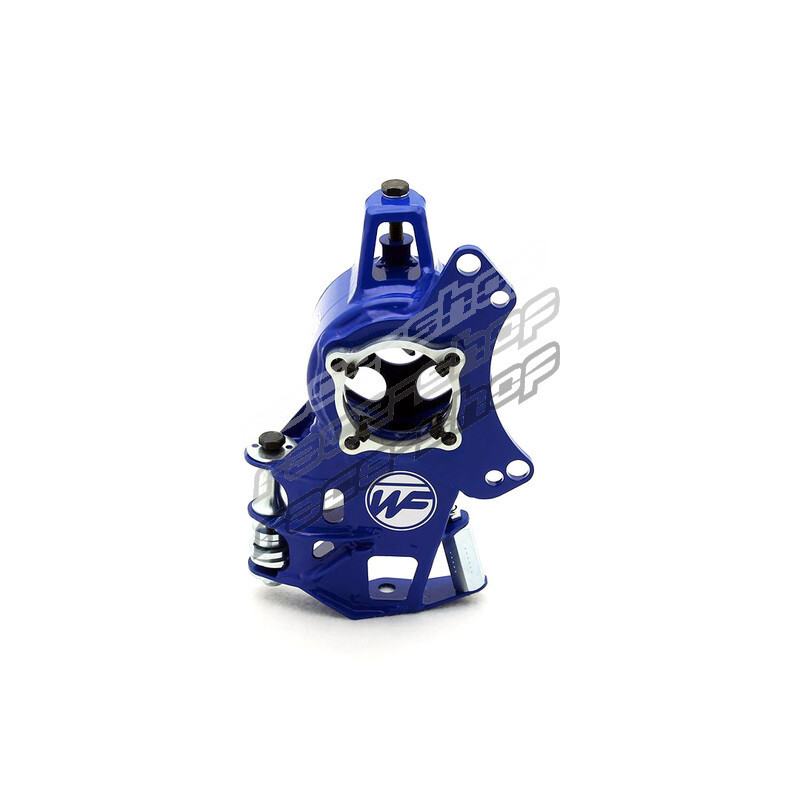

- Upright/hub carriers

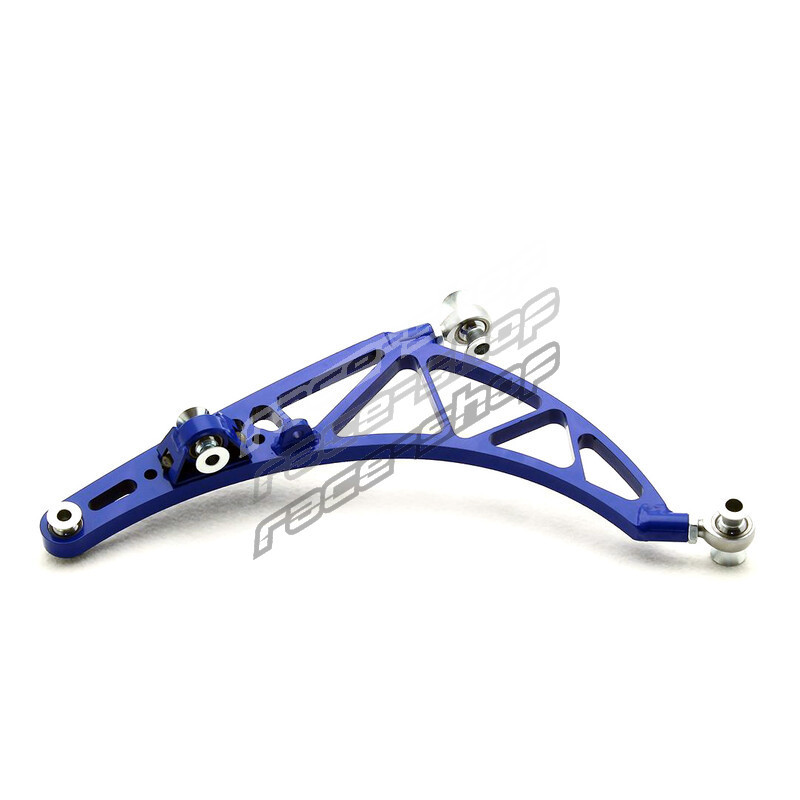

- Single piece lower arm/tension rod
- Tie rods
- Tie rod ends
- All required fixings for installation
- This kit requires the use of a BMW E46 steering rack (not included)
Manufacturer advice :
- Wisefab recommend a wheel diameter that doesn't exceed 635 mm (215/45R17, 225/45R17, 235/40R17, 225/40R18 for example)
- Wide arches or arch extensions are useful for this kit (track width is increased of about 5 cm at each side)
- Adjust camber -3.5 to -4.5°
- Adjust caster from 5.5 to 6.5°
- Adjust toe in/out to 0°
- Write a review
Data sheet
| Type | Lock kit |
Did not find your question?
Enter new question Do you have a question? Search for an answer.
| Make | Model | Generation |
|---|---|---|
| Mazda | RX-8 | SE (2003 - 2009) |
| Mazda | RX-8 | SE Facelift (2008 - 2012) |
