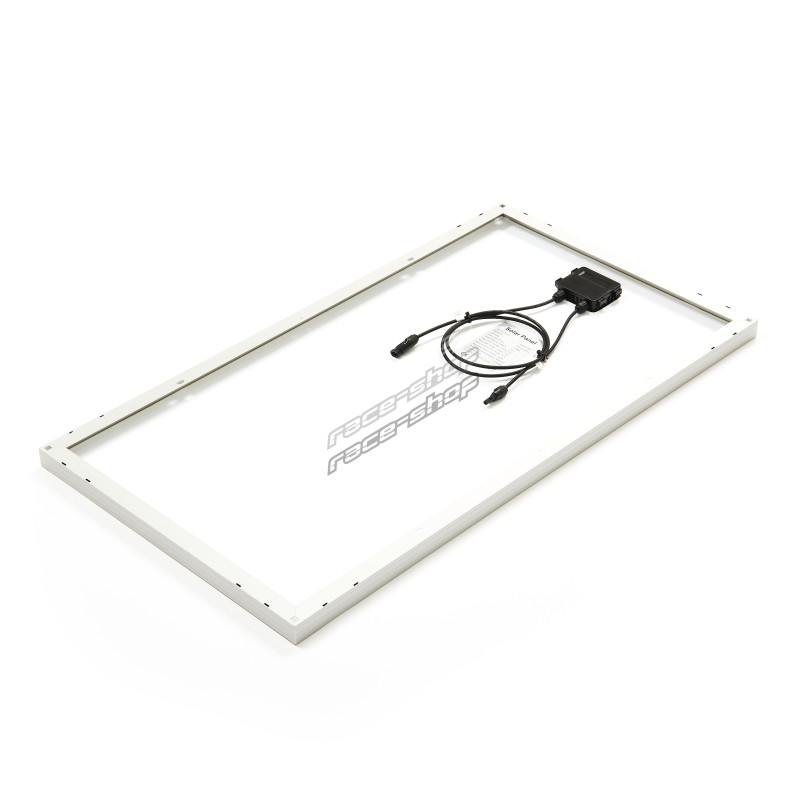

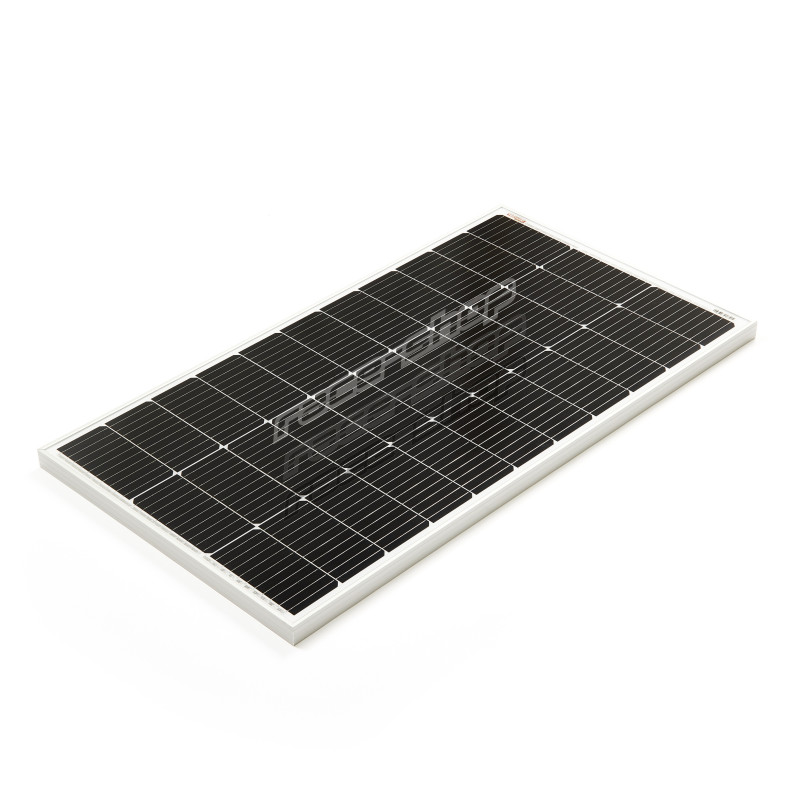

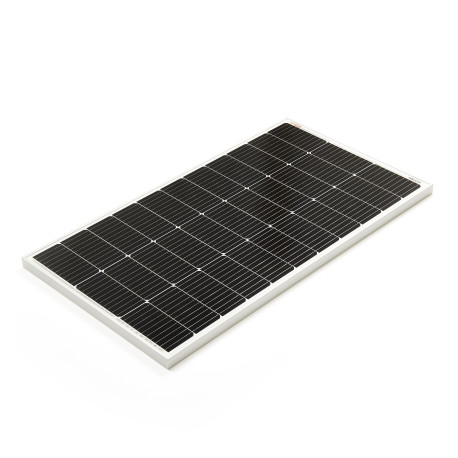

REDARC monocrystalline fixed solar panel, 120 W, silver frame

The REDARC monocrystalline fixed solar panel, 120 W, is designed for fixed installation, typically on the roof of caravans, RVs and motorhomes, as well as some camper trailer and 4x4 vehicle applications. Its monocrystalline cells are highly efficient, and the anodised aluminium frame and tempered glass coating let it withstand harsh road conditions and extreme weather. For its power output the panel is lighter and has a smaller footprint, and it works with REDARC solar regulators and solar accessories.

Features:

• Monocrystalline construction with high cell efficiency
• Anodised aluminium frame
• Robust tempered glass coating
• Quality MC4-style connectors for easy installation
• Lower weight and smaller footprint for its power output
• Each panel is tested at manufacture to conform to CE standards, so the output matches its specification
• Supported by REDARC solar regulators and solar accessories

Specifications:

• Solar cell type: Monocrystalline
• Power: 120 W
• Open circuit voltage: 22.0 V
• Max. power voltage: 18.8 V
• Max. power current: 6.39 A
• Short circuit current: 6.70 A
• Operating temperature: -40 °C to +85 °C
• Frame: Anodised aluminium
• Connector type: MC4-style
• Cable length: 900 mm
• Dimensions: 1070 x 590 x 35 mm
• Weight: 6.7 kg
