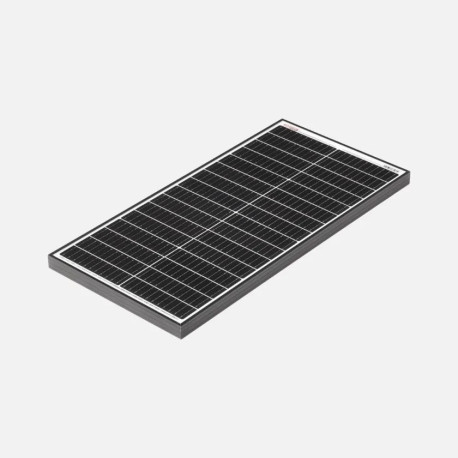

REDARC monocrystalline fixed solar panel, 60 W, black frame

The REDARC monocrystalline fixed solar panel, 60 W, is made for fixed installation. It typically goes on the roof of a caravan, RV or motorhome, and also suits some camper trailer and 4x4 vehicle setups. Its anodised aluminium frame and tempered glass coating stand up to harsh road conditions and extreme weather. For its power output the panel is light and compact, and it works with REDARC solar regulators and accessories.

Features:

• High-efficiency monocrystalline cells
• Black anodised aluminium frame
• Robust tempered glass coating
• Quality MC4-style connectors for easy installation
• Lower weight and smaller footprint for its power output
• Each panel tested at manufacture to conform to CE standards

Specifications:

• Power: 60 W
• Solar cell type: monocrystalline
• Open circuit voltage: 21.84 V
• Max. power voltage: 18.2 V
• Short circuit current: 3.46 A
• Max. power current: 3.30 A
• Operating temperature: –40 °C to +85 °C
• Frame material: anodised aluminium
• Connector type: MC4-style
• Cable length: 900 mm
• Dimensions: 805 x 395 x 35 mm
• Weight: 3.7 kg
