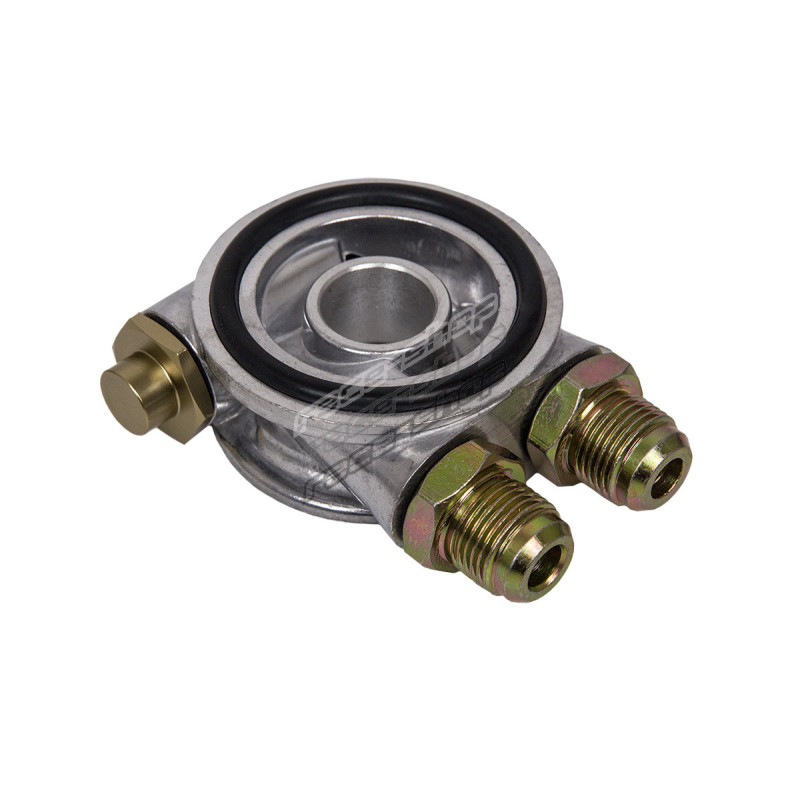

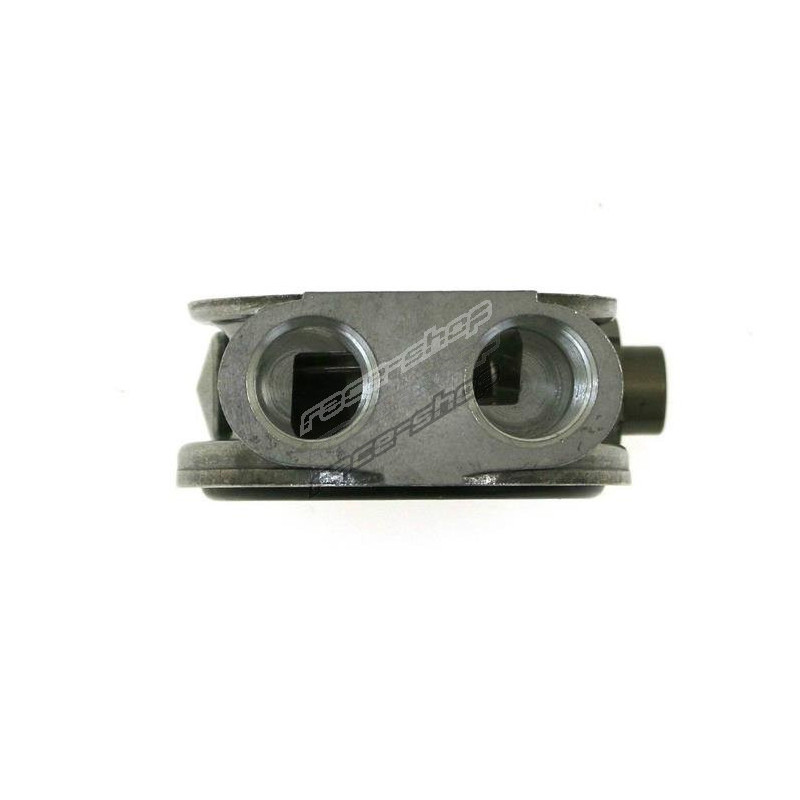

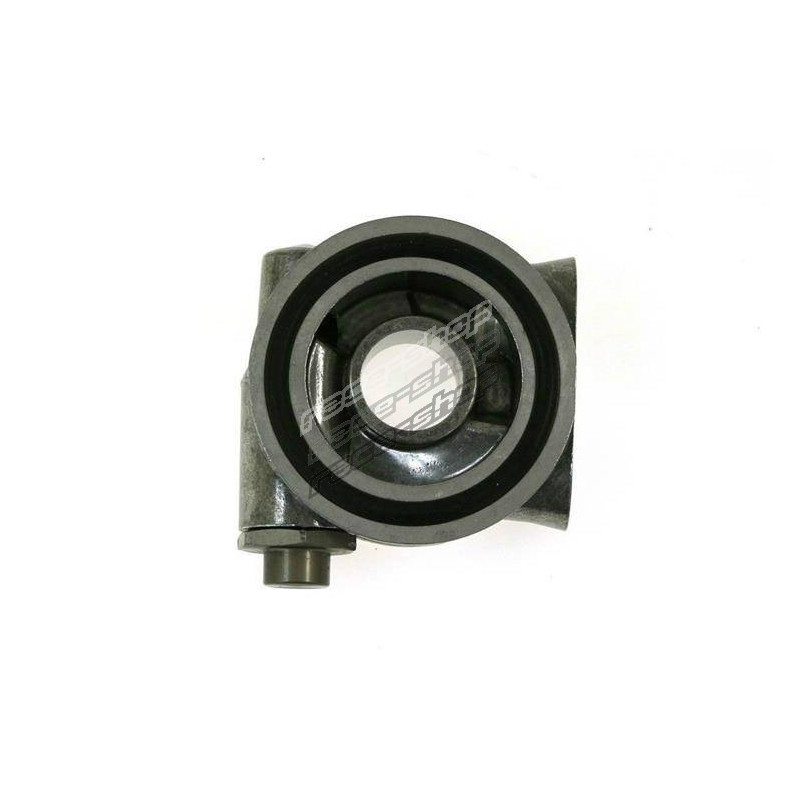

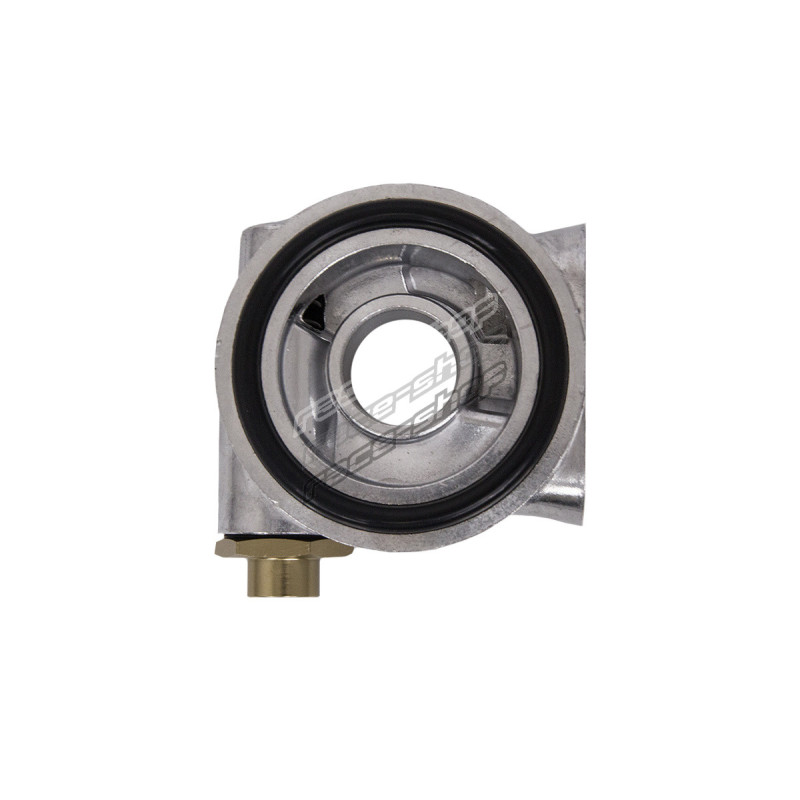

Inlet/outlet AN10 oil filter adapter with built-in thermostat. Thermostat opening temperature is 80°C.

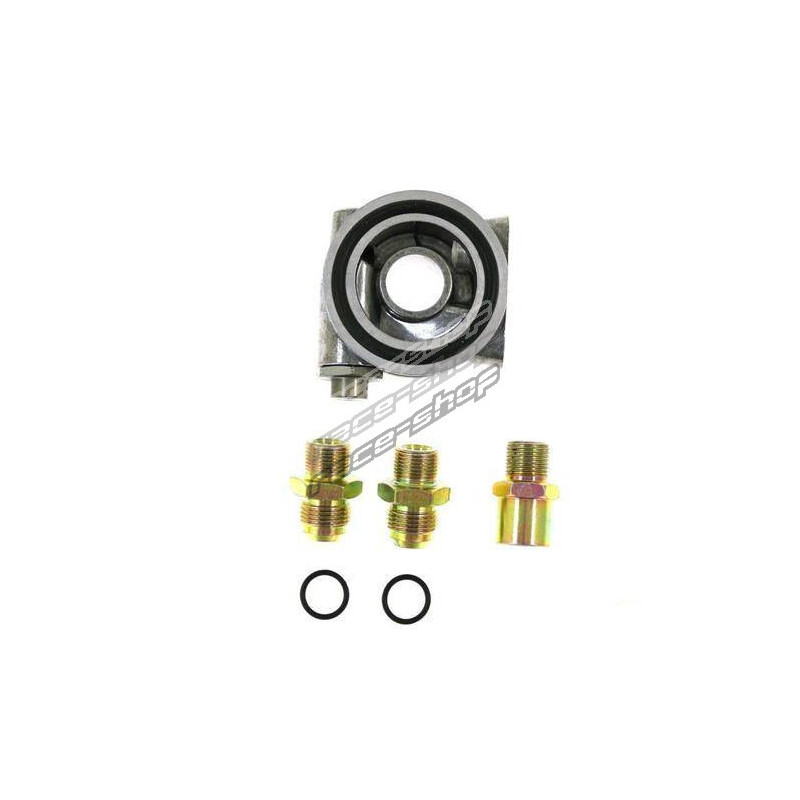

The reduction is used for connection of the oil cooler to the original oil circuit. The reduction includes 2 adapters AN10 (oil inlet and outlet), rubber sealing and optional adapter for mounting to the engine block.
On the sides there are also two outlets for sensors (i.e. for oil pressure and temperature with the 1/8" NPT thread).
The adapter is mounted between the engine block and the oil filter. Options: 3/4-16UNF, M18 x 1,5, M20 x 1,5, M22 x 1,5.
Before ordering, please select the type of center adapter for engine block attachment! If you did not find your car on the list, or you are not sure about the right choice, write the brand, model and the engine type of your car in the note to get the correct thread.
3/4-16UNF fits for:
BMW (models with screwable filters),
Chrysler (except diesel engines),
Fiat (except diesel engines),
Ford (except Probe),
Lancia (except diesel engines),
Nissan (except diesel engines),
Porsche 924 (engines 2.0 + turbo)
Renault all models until production year 06/84,
Saab (except 2.5 V6,3.0 V6),
Toyota (except diesel engines),
VW (except VR6),
Volvo (except 440/480).
M18 x 1,5 fits for:
Citroen (some models)
General Motors (all V6 models)
Opel (some models)
Saab (motory 2.5 V6, 3.0 V6)
M20 x 1,5 fits for:
Citroen (AX,BX,CX, XM, Visa GTi)
Lada (Niva 1.9 Diesel)
Peugeot (some models)
Porsche (944, 928, 968)
Renaut all models since production year 07/84
