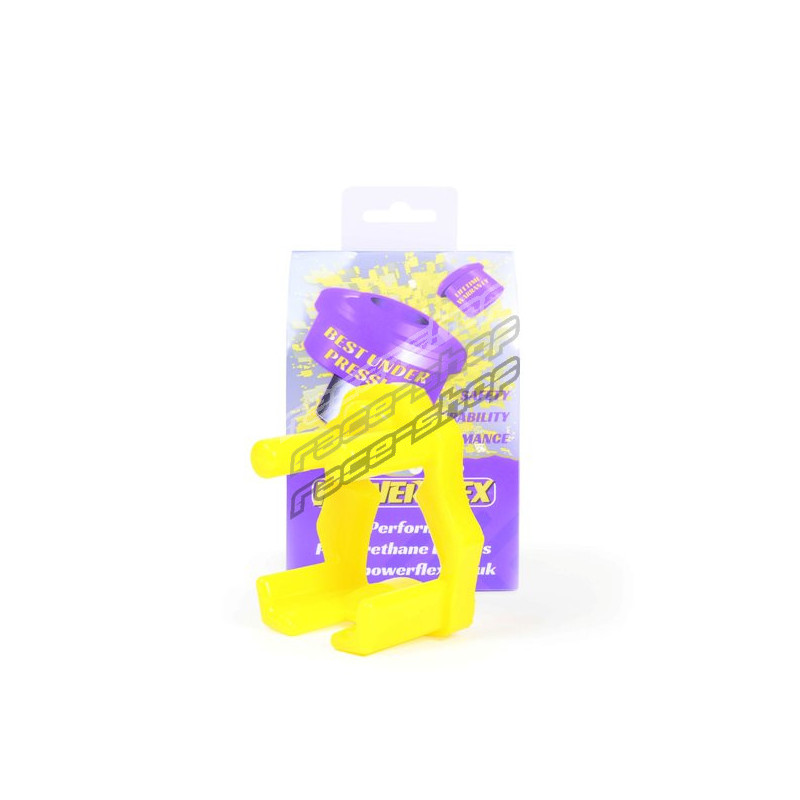

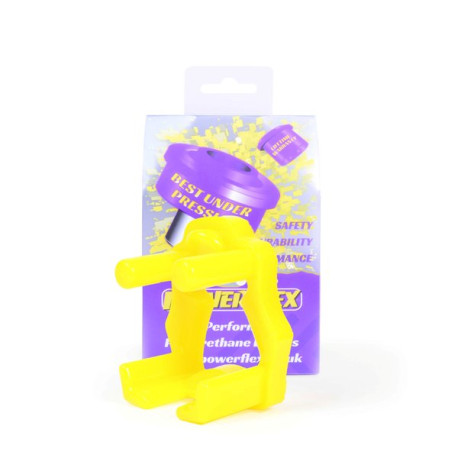

Powerflex Torque Rod Insert Ford S-Max MK1 (2006 - 2015) Road Series

Name: Powerflex Torque Rod Insert Ford S-Max MK1 (2006 - 2015) Road Series
Brand: Powerflex
SKU: PFF88-1030_8
Price: 39.50 EUR
Availability: OutOfStock

Powerflex Torque Rod Insert for Ford S-Max MK1 (2006 - 2015). Price per 1 piece, quantity required per car: 1.

Show full description

Condition: New product

Sold out

39,50 € tax incl.1

Product is unavailable. Please choose other goods.

Add to wishlist

Enquiry product

Notify me

For automatic information about product status update,
click on "notify me".

Reference: PFF88-1030_8

EAN: 5055676537447

Frequently bought together

Powerflex Torque Rod Insert for Ford S-Max MK1 (2006 - 2015). Price per 1 piece, quantity required per car: 1.

Suitable for:

Ford – S-Max Models – S-Max MK1 (2006 - 2015)

Road Series – purple polyurethane for everyday road use
Original name: Upper Torque Rod Insert

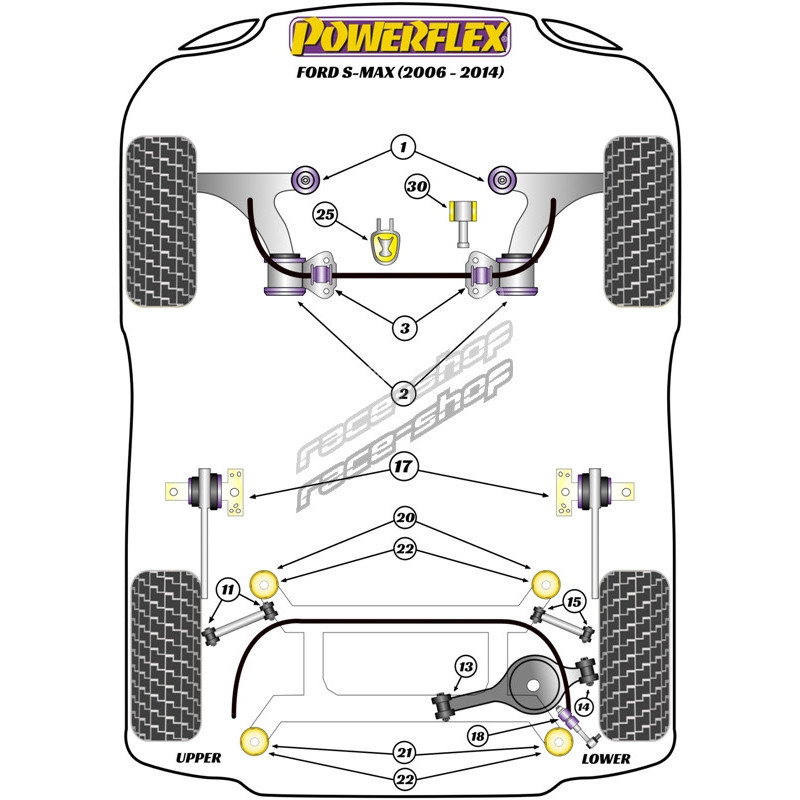

Diagram reference: 30
Quantity per car: 1
OEM: 31430441, LR030745, 1435996

Manufacturer's note: PFF88-1030 insert is made with our Yellow 70A material and fills the voids in the original mount, limiting engine movement and providing additional stability under acceleration. The result is a restriction in engine movement, preventing wheel hop and offering more precise gear-shifting for a more positive driving experience. This, in turn, additionally prolongs the mount s life expectancy. NB: When strengthening the connection between the engine and chassis, a small increase in NVH, usually at idle, should be expected. Naturally, the harder the material used, the greater the NVH transmitted. It will not fit vehicles using the engine bracket p/n 31401633 due to the lack of support provided by the bracket required to prevent the insert from pulling out of the torque rod.

Powerflex was formed in 1996 in UK to take advantage of the significant advances made in the development of polyurethane in recent years. The company has wide experience of automotive suspension and chassis systems and combining these design skills with advanced polyurethane manufacturing techniques led to the development of the wide range of high performance automotive polyurethane components now known the world over by the product name POWERFLEX.

Component manufacturing is carried out with the latest automatic processing equipment ensuring 100% right first time quality.

Testing of new components is carried out both on the vehicle and on test rigs. POWERFLEX were selected to receive a Queen’s Award for Enterprise International Trade 2013 and in December 2014 certified to ISO 9001 as a manufacturer underlining their quality and stature as a global exporter.

Materials are colour coded to make them easily identifiable. Below explains the shore rating and their common uses.

Red 65A – Used for universal exhaust mounts and diesel engine mounts.
Yellow 70A – Mainly used for engine mounts, diff mounts and subframe mounts or areas where the bush needs a lot of movement and absorption.
Purple 80A – Most common material. This is used in most areas of the suspension and provides the right mix between performance and compliance.
Black 95A – The hardest material. This is used mostly for Black Series range or in Road Series where the vehicles standard suspension demands require us to use this hardness of material i.e. in areas of high load.
