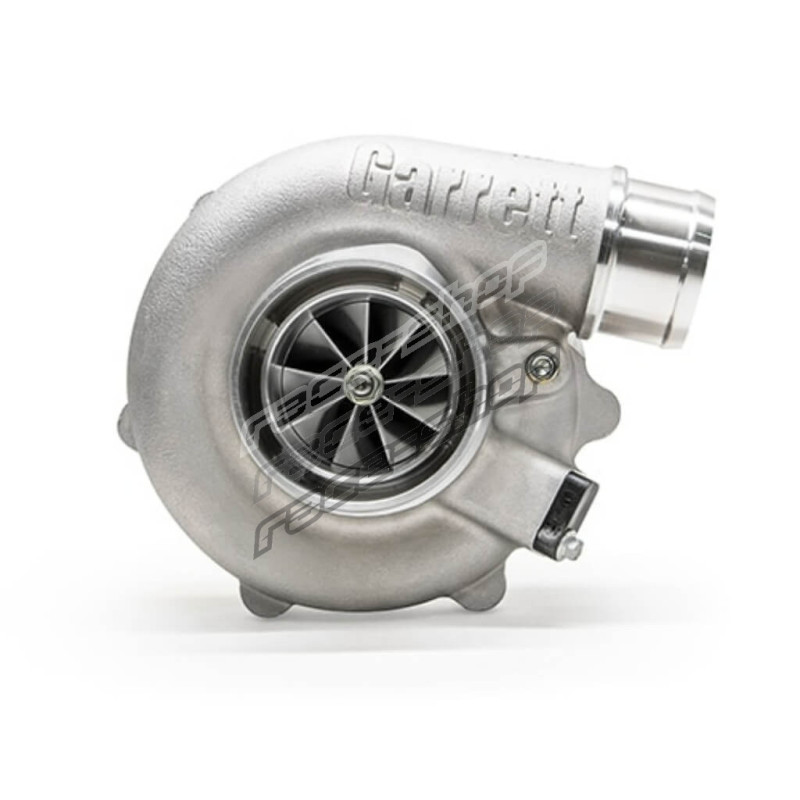

Garrett 880693-5003S Supercore G-Series G30-900, Trim 65
Garrett 880693-5003S Supercore G-Series G30-900 — Ball bearing, 62 mm compressor inducer, Trim 65, 2.0-3.5 L, Up to 900 HP.
New product
880693-5003S
Frequently bought together
Garrett 880693-5003S Supercore G-Series G30-900 — Ball bearing, 62 mm compressor inducer, Trim 65, 2.0-3.5 L, Up to 900 HP.
Garrett G30-900 supercore — a balanced core assembly (centre cartridge with compressor cover and back plate) for building or rebuilding G-Series turbochargers.
Garrett G-Series turbochargers are the latest innovations in turbocharger technology.
The compressors and turbines have the highest performance and aerodynamics available today.
Countless engineering hours have been spent to create the perfect combination of efficiency and performance in a compact package.
Specifications
- Frame: G30
- Bearing: ceramic ball bearing
- Rotation: standard
- Compressor wheel: 62 mm inducer, 76 mm exducer, 65 trim, 0.72 A/R
- Turbine wheel: 60 mm inducer, 55 mm exducer, 84 trim
- Turbine wheel material: MAR-M alloy
- Power: up to 900 HP
- Displacement: 2.0-3.5 L
Features
- Latest CFD-optimised, forged milled compressor wheel
- High-Flow compressor housing with integrated easy plug speed sensor port
- Rotation: Standard (Clockwise)
- Dual ceramic ball bearing cartridges
- Includes -4AN oil restrictor fitting with 1mm orifice
- Four large water jacket ports
- Twin piston rings at compressor and turbine site
- Turbine wheel constructed of MAR-M alloy rated to 1055 °C
- Write a review
Data sheet
| Type | Turbo |
