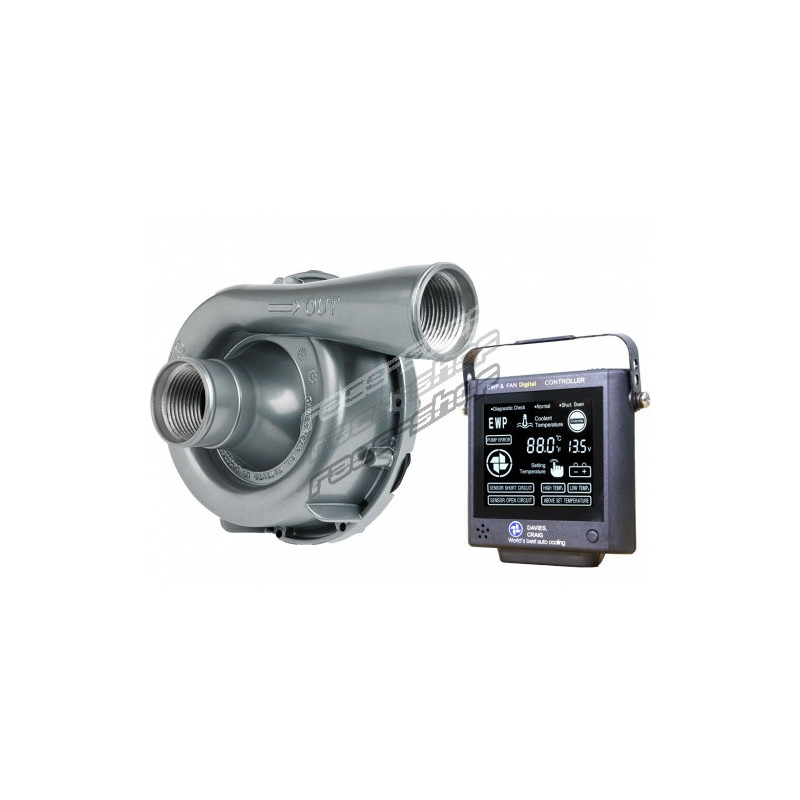

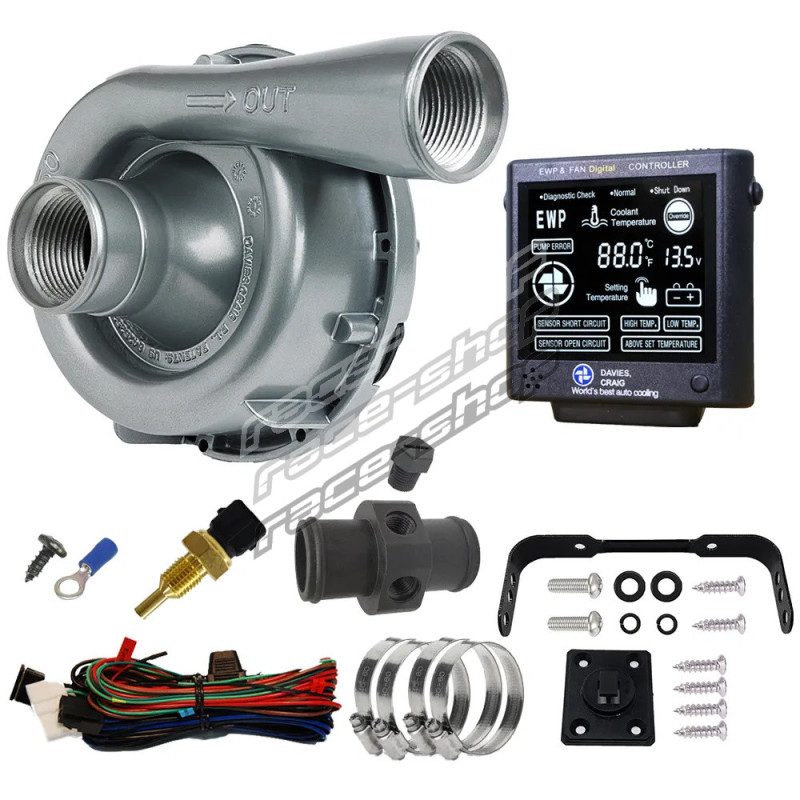

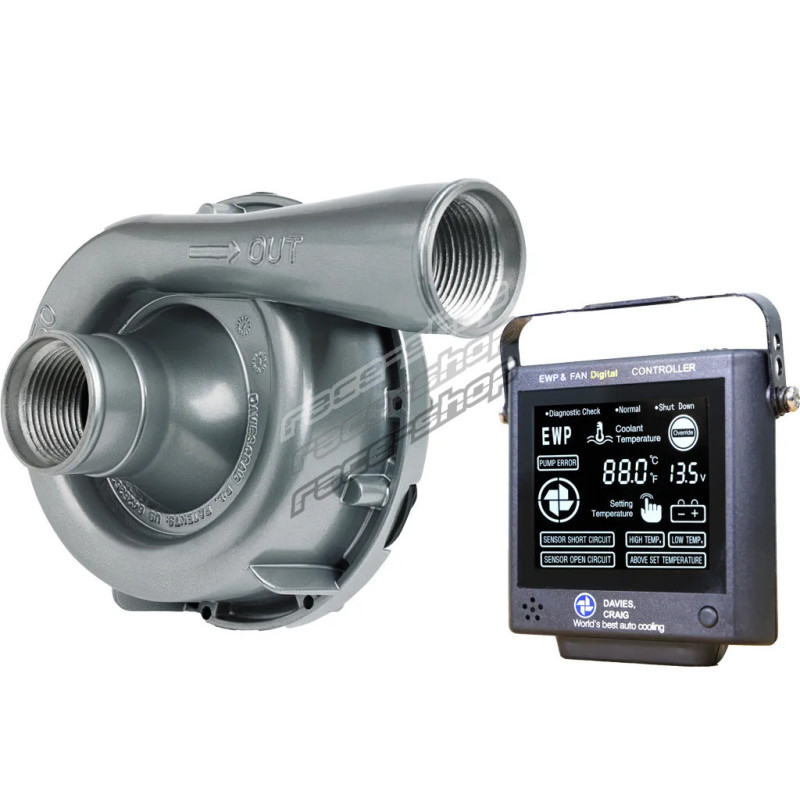

Davies Craig Set Control Panel + electric water pump 150L / Min 10A

Electric water pump/ fan controller. The system allows you to control the start-up and precise adjustment of the water pump (speed depending on the engine temperature) and the fan, which allows you to maintain coolant flow in the system with the fans switched on even when the engine is switched off. The possibility of setting a certain coolant temperature from 0 ° C (104 ° F) to 110 ° C (230 ° F).

Water pump with flow up to 150L/min (10A) suitable for vehicles of all kinds. It provides a high flow of coolant in the system, which improves cooling and reduces the load on the stock water pump. Practical alternative to a mechanical pump driven by the engine or as a direct replacement.

Show full description

Condition: New product

Reference: 8970

EAN: 9311669089703

Otázka k produktu

Frequently bought together

Electric water pump/ fan controller

Black & White Numerical LCD Screen
Suitable for 12v & 24v electrical systems, with relevant displays
Celsius or Fahrenheit display option
Warnings: - Plus 10°C (14°F) set/target temperature
- Under temp 40°C after 5 mins
- Temp sensor error
- Over or under voltage
- EWP error
Select any set temp range from 60°C (104°F) to 110°C (230°F)
Set / targeted temperature memory
Override feature to assist bleeding EWP & fail safe
Input voltage display
Genuine Thermometer, with coolant and targeted/set temp. displays
Diagnostic check & warm-up signals

Technical specification:

Voltage: 12V- 29V
LCS display size: 70mm x 60mm
Maximum current: 12A
Dimensions: 95x130x25mm
Weight: 100g

Water pump with flow up to 150L/MIN 10A

voltage: 12V
operating voltage: 3V DC to 15V DC
maximum current: 10A A 13V
flow rate: 150 L/min
operating temp: -40° to 130°C
pump design: clockwise centrifugal with volute chamber
pump weight: 1170g (2,6 lb)
pump material: aluminum
pressure: 500kPa (72,5 psi)
fits hose sizes: 35mm to 51mm (1⅜” to 2”) (Inlet: -16AN (12) Outlet: -16AN (12))
push-on fitting size: Inlet & Outlet 38mm
