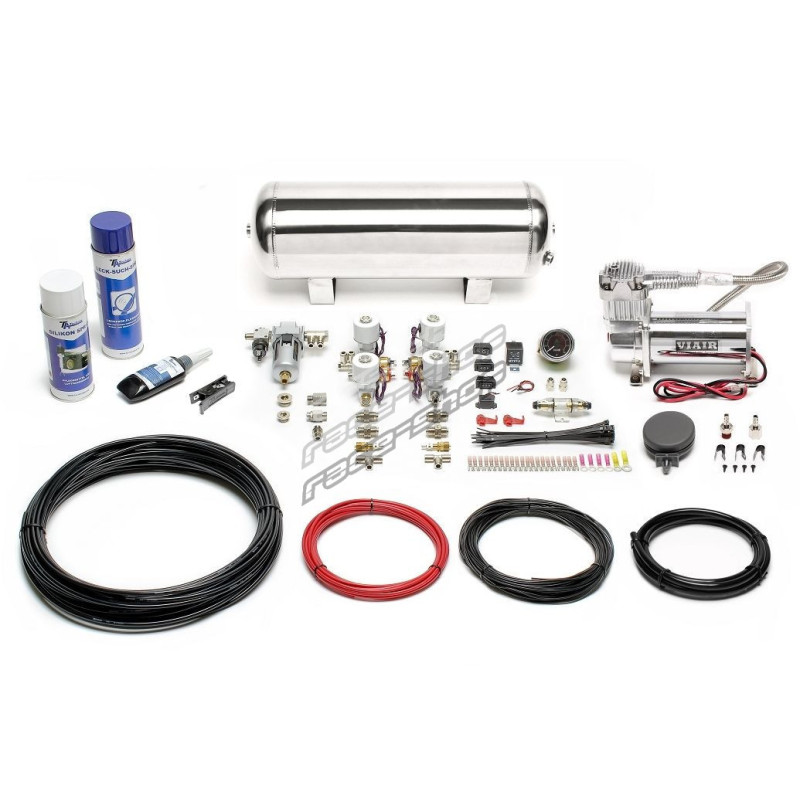

TA-Technix air suspension set with lift kit for Honda Civic V Coupe Typ EJ

TA Technix air damper set + TA Technix air generation kit for air suspension / airride

TA Technix air damper set

TA Technix air generation kit for air suspension / airride
380 Viair compressor
11,5 litre chrome tank
Viair dual pressure gauge in black
25 meter 6mm PU hose in black
Hose cutter
4 x 2/2 way valves 1/4
Warning buzzer and LED
Normally closed and normally open pressure switch
Electronic set incl. 3 switches, flat plug sleeves, cable, cable ties and relay
all fittings incl. check valve and safety valve
2 x emergency filling valves
Safety valve
Water separator
Leak detection spray
Silicone spray
Thread sealant

suitable for:
for air suspension / airride
Honda Civic V Hatchback, Type EG
EG3,4,5,6
year of construction 1991 - 1995
Honda Civic V Notchback, Type EG, EH
EG8,9, EH9
Year of manufacture 1991 - 1995
Honda Civic V Coupe, Type EJ
EJ1,2,6, incl. Vtec
Year of construction 08.1993 - 1996
Honda Civic VI Coupe, Type EJ, EM
1.6i + 1.6i Vtec
Year of construction 1996 - 2000
Honda Civic VI Hatchback, Type EJ, EK
EJ9,EK1,3,4
Year of construction 1995 - 2001
Honda Civic VI Notchback, Type EJ, EK
EJ9, EK3,4 incl. Vtec
Year of manufacture 1995 - 2001
Honda CRX III, Type EH, EG
EH6, EG2
year of construction 1992 - 1998
maximum front axle load: 860kg
maximum rear axle load: 820kg

Approval:

Including parts report (§19.3)

Implementation notes:

Installation information on EG + EH models for the front axle:
Adaptation works for brake hose holders are required

Installation instructions for the rear axle:
52mm or 46mm diameter / distance
Appropriate adapters are included in delivery
Not suitable for models EJ9, EK1, 3+4 (here the rear wishbones must also be replaced)

Notes:

Installation instructions for EG+EH models on the front axle:
Adaptation work for the brake hose holder is necessary
Installation instructions on the rear axle:
Please note the distance between the forks is 52mm or 46mm
Corresponding adapters are included in the scope of delivery

Axle:

-

KeyType number:

4262,4263,4265,4267,4275,4276,4277,4292,4293,5196,5197,5198,5199,5200,5201,5202,5203,10596,14900,14901,17524,17525,18020,18832,20416,20440,20441,21390,22022,25155,27753,27760,28319,29528,29529,29530,29531,29536,29537,29538,29539,29540,29561,29591,29592,33186,33188,55316,55761,55811,55818,55838,55932,55935,,4232,4233,21394
