TA-Technix hardness adjustable air suspension kit for Volkswagen Tiguan Typ 5N

TA Technix air suspension kit + TA Technix air management system for air suspension / airride

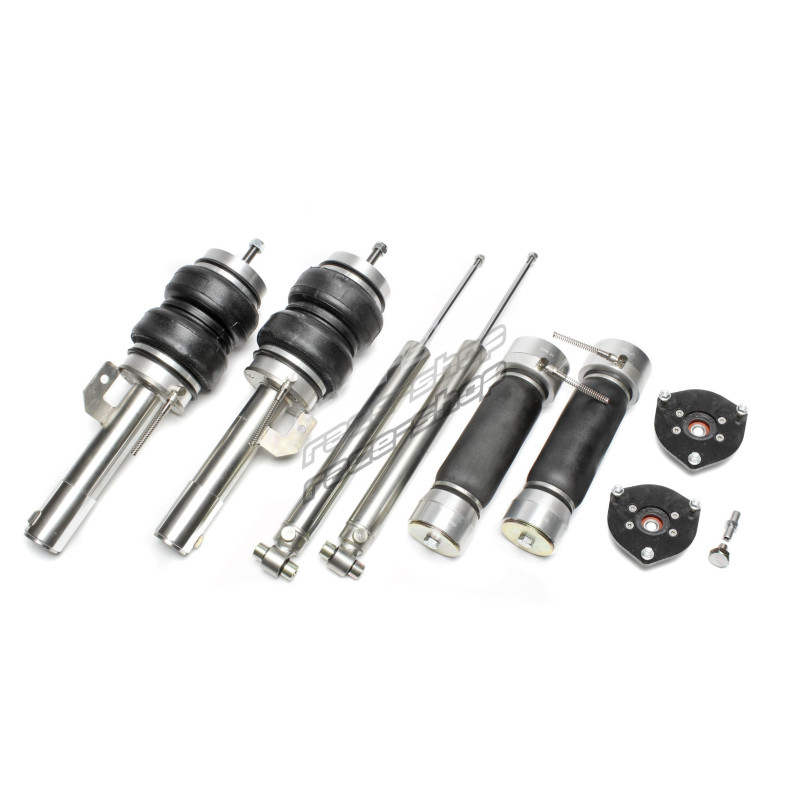

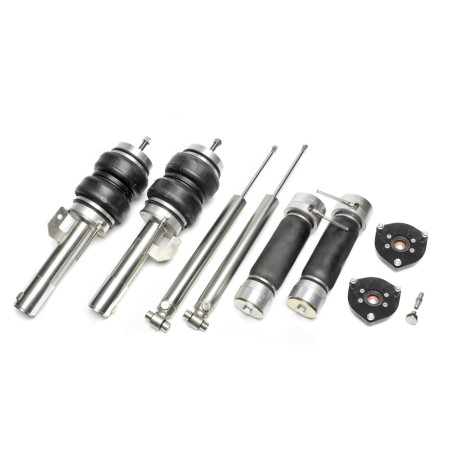

TA Technix hardness adjustable air suspension kit

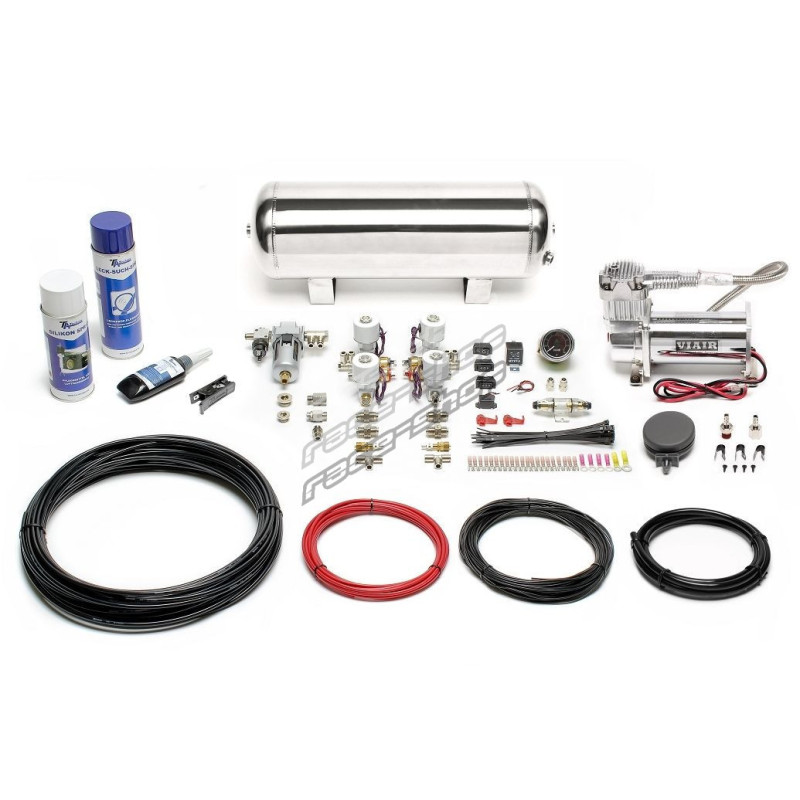

TA Technix air management system for air suspension / airride
380er Viair compressor
11,5 liters / 3 gallons - chrome tank
Viair dual-needle indicator, colour black
6mm PU hose, 25m, colour black
hose cutter
4 pcs. 2/2-way valve, 1/4 inch
warning buzzer and LED
opener and closer of pressure switch
electronic set with 3 switches, spade connector, cable, cable zip tie and relay
all Fittings, incl. check valve and safety valve
2 pcs. emergency ventilation valves
safety valve
water separator
leak detection spray
silicone spray
thread sealant

fits for:
VW Tiguan Type 5N-AD
without 4-Motion Model
year 2016 -
maximum front axle load: 1150kg
maximum rear axle load: 1150kg

Approval:

Including parts report (§19.3)

Implementation notes:

VA = hardness adjustment - infinitely variable using the adjustment wheel from above,
HA = via adjustment knob on the damper body (compression + rebound at the same time)

Notes:

50mm and 55mm strut diameter
We recommend using shorter coupling rods, e.g. E.g. EVOPE003

Axle:

-

KeyType number:

118647,142270,120210,124068,122007,140708,134740,134614,119768,119767
