TA-Technix airride kit with air management for Fiat Grande Punto Typ 199

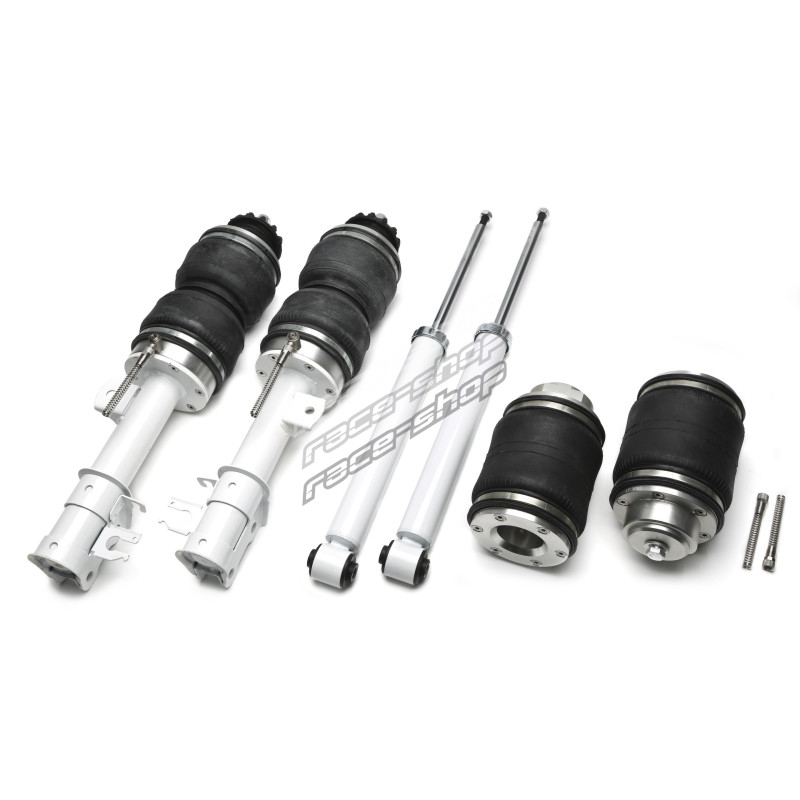

TA Technix Air Damper Set + TA Technix Air Management with Air Generation Kit

The multi-function display is operated intuitively by means of a freely positionable rotary knob / potentiometer.
The electronic, pressure-based control unit has the option of storing 4 freely configurable bellows pressures / ride heights on an axle-by-axle basis.

With the help of the enclosed operating instructions and the simple menu navigation, the following additional functions, among others, can be used:

- 4 driving heights
- Adjustment of the driving height with ignition on and off (autolevel)
- Axially adjustable excess bellows pressure for optimum adjustment of the ride height
- Protection against foreign use (offers the possibility to lock the system at the desired ride height within 3 seconds)
- maximum as well as minimum tank pressure (adjustable)
- Protection of the on-board power supply through definable upper and lower limits of the on-board voltage
- freely configurable valve times
- Modification of the control unit lighting / ECU lighting
- Minimum pressure of the front and rear axle (falling below the minimum pressure triggers a visual warning signal and is necessary for TÜV registration)

includes:
- Multifunctional display
- Rotary knob / potentiometer including 4 caps in black, red, blue and silver
- anti-reflective foil
- prefabricated wiring harness
- Control unit / ECU
- 3 update cables
- TA Technix 444C compressor in black
- 11,5 litre tank in black
- Electronic set including compressor relay
- Fuse holder including fuse
- 4x 2/2 way valves 1/4 with pressure sensors
- 25 metre 6mm PU hose in black
- all fittings including check valve and safety valve
- water separator
- emergency filling valves

suitable for:
Alfa Romeo Mito, Type 955
year of construction 2008 -
Fiat Punto Evo, Grande Punto, Type 199
Year of construction 2005 -

Opel Adam, model S-D
Year of construction 2012 -
Opel Corsa D, model S-D
Year of manufacture 2006 - 2014
Opel Corsa E, model S-D
year of construction 2014 -
maximum front axle load: 990kg
maximum rear axle load: 850kg
maximum front axle load: 1000kg
maximum rear axle load: 950kg

Approval:

Including parts report (§19.3)

Implementation notes:

-

Notes:

-

Axle:

-

KeyType number:

1,1940,3317,4853,5838,5931,5938,9157,9158,9263,9265,9303,9315,9331,9619,10446,10447,10769,10972,12013,12034,12195,13956,13957,13959,18897,18898,18899,18900,18901,18902,19722,19723,19724,19725,19726,19727,19817,22675,23194,,23497,25909,26003,26004,26324,26491,26492,26495,26496,27308,28248,28249,28250,29401,29407,29986,31645,31646,31968,31969,32396,32398,32741,32742,32743,33721,33722,33723,33724,33725,50239,52465,55441,56287,56729,56731,56789,58986,100764,100770,100780,100783,100784,100883,107074,107075,107793,107794,107795,107796,107797,107798,107799,108277,109279,111411,112128,112130,112141,115396,118688,120228,120359,120770
