TA-Technix airride kit with air management for Audi A6 C4-4A

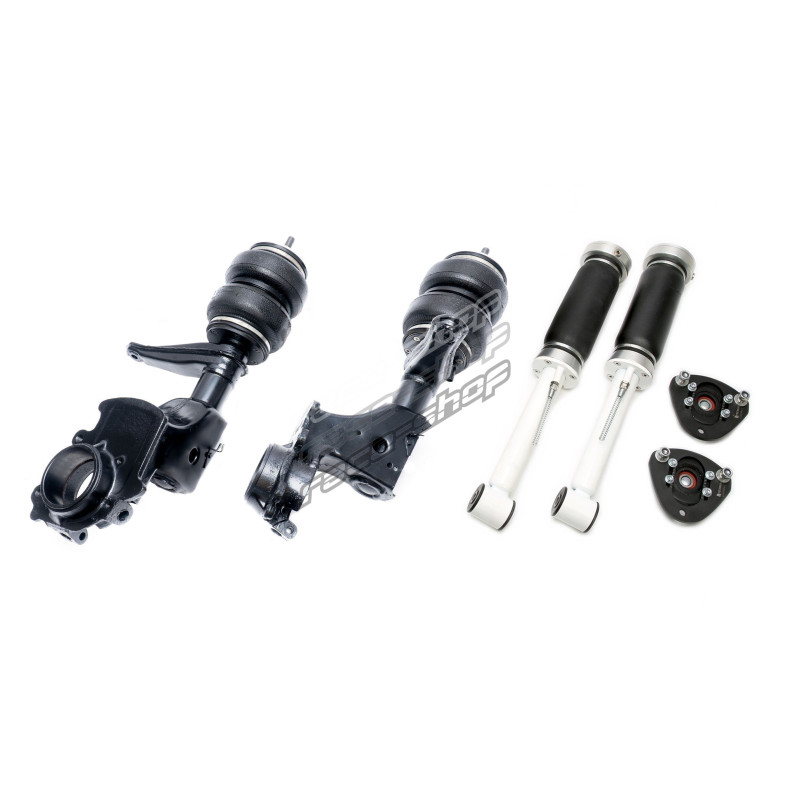

TA Technix Air Damper Set + TA Technix Air Management with Air Generation Kit

The multi-function display is operated intuitively by means of a freely positionable rotary knob / potentiometer.
The electronic, pressure-based control unit has the option of storing 4 freely configurable bellows pressures / ride heights on an axle-by-axle basis.

With the help of the enclosed operating instructions and the simple menu navigation, the following additional functions, among others, can be used:

- 4 driving heights
- Adjustment of the driving height with ignition on and off (autolevel)
- Axially adjustable excess bellows pressure for optimum adjustment of the ride height
- Protection against foreign use (offers the possibility to lock the system at the desired ride height within 3 seconds)
- maximum as well as minimum tank pressure (adjustable)
- Protection of the on-board power supply through definable upper and lower limits of the on-board voltage
- freely configurable valve times
- Modification of the control unit lighting / ECU lighting
- Minimum pressure of the front and rear axle (falling below the minimum pressure triggers a visual warning signal and is necessary for TÜV registration)

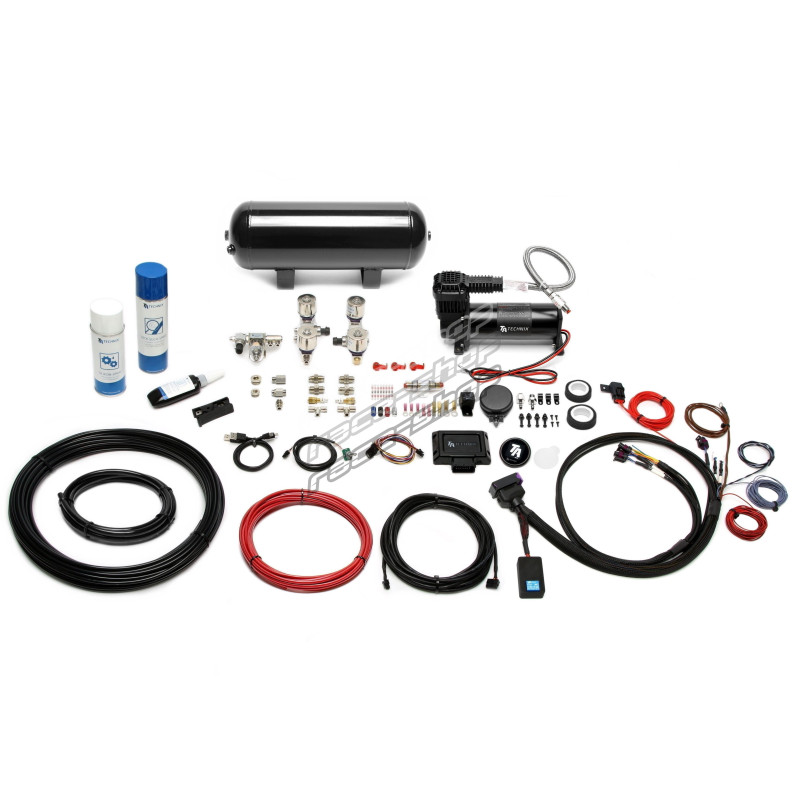

includes:
- Multifunctional display
- Rotary knob / potentiometer including 4 caps in black, red, blue and silver
- anti-reflective foil
- prefabricated wiring harness
- Control unit / ECU
- 3 update cables
- TA Technix 444C compressor in black
- 11,5 litre tank in black
- Electronics set including compressor relay
- Fuse holder including fuse
- 4x 2/2 way valves 1/4 with pressure sensors
- 25 metre 6mm PU hose in black
- all fittings including check valve and safety valve
- water separator
- emergency filling valves

suitable for:
Audi 100 Sedan, Type 4A, C4
Audi 100 Avant, Type 4A, C4
without Quattro
Year of manufacture 1990 - 1994

Audi A6 Sedan, Type 4A, C4
Audi A6 Avant, Type 4A, C4
without Quattro
Year of manufacture 1994 - 1997

Note: Not for vehicles with levelling system / air suspension
!! Not to be used on models with Audi sports suspension or M12 grub screw mount !!!
Maximum front axle load: 1240kg
maximum rear axle load: 1200kg

Approval:

Including parts report (§19.3)

Implementation notes:

Not to be used on models with Audi sports suspension or M12 threaded pin mount

Notes:

VA shock absorbers must be sent in after purchase/order confirmation.
Only completely dismantled and cleaned strut housings can be processed, i.e. wheel bearings, wheel hubs must be removed before shipping. Damaged goods will be returned for a fee!

Front suspension struts must be sent after purchase / order confirmation.
Only fully dismantled and cleaned spring housing can be machined, wheel bearings, wheel hubs must be removed before shipment.
Damaged goods will be returned for a fee!

Axle:

-

KeyType number:

1379,1381,1383,1384,1385,1386,1444,1447,1448,1450,1452,1453,3885,3886,3893,3894,4636,4637,4638,4639,4640,4641,4643,4644,4645,4646,4647,4648,4649,5006,5318,5319,5322,5323,5804,5808,12481,20106
