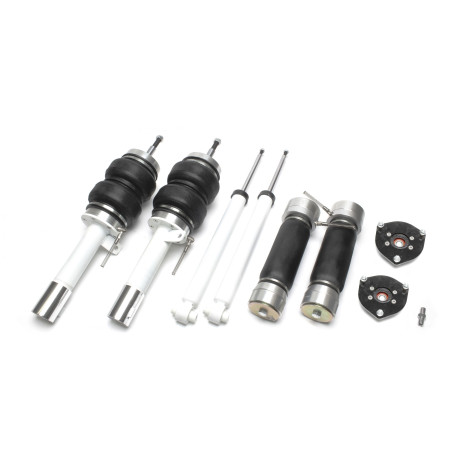

TA-Technix airride kit with air management for Audi A3 inkl. Sportback Typ 8Y

TA Technix Air Damper Kit + TA Technix Air Management with Air Generation Kit

The multi-function display is operated intuitively by means of a freely positionable rotary knob / potentiometer.
The electronic, pressure-based control unit has the option of storing 4 freely configurable bellows pressures / ride heights on an axle-by-axle basis.

The following additional functions, among others, can be used with the aid of the enclosed operating instructions and the simple menu navigation:

- 4 driving heights
- Adjustment of the ride height with ignition on and off (Autolevel)
- Axle-by-axle adjustment of the bellows pressure for optimum adjustment of the ride height
- protection against foreign use (offers the possibility to lock the system within 3 seconds to the desired driving height)
- maximum as well as minimum tank pressure (adjustable)
- protection of the on-board power supply by fixable upper and lower limits of the on-board voltage
- freely configurable valve times
- Change of the control unit illumination / ECU illumination
- minimum pressure of the front - as well as rear axle (a falling below triggers an optical warning signal and is necessary for the TÜV registration)

includes:
- Multifunctional display
- Rotary knob / potentiometer including 4 caps in black, red, blue and silver
- anti-reflective foil
- assembled wiring harness
- control unit / ECU
- 3 update cables
- TA Technix 444C supercharger in chrome
- 19 litre chrome tank
- Electronics set including compressor relay
- Fuse holder including fuse
- 4x 2/2 way valves 1/4 with pressure sensors
- 25 meter 6mm PU hose in black
- all fittings including check valve and safety valve
- water separator
- emergency filling valves

suitable for:
Audi A3 incl. Sportback, type 8Y, year of manufacture 2019 -
Seat Leon IV, type KL, year of construction 2019 -
Skoda Octavia IV, - estate, type NX, year of construction 2019 -
Volkswagen Golf VIII, type CD, year of manufacture 2019 -
all incl. 4-WD models
50mm and 55mm suspension strut
Models with multi-link axle (Multi Link)

We recommend the use of shorter coupling rods, e.g. EVOPE003
maximum front axle load: 1060kg
maximum rear axle load: 920kg

Approval:

Including parts report (§19.3)

Implementation notes:

-

Notes:

50mm and 55mm strut diameter
We recommend using shorter coupling rods, e.g. E.g. EVOPE003

Axle:

-

KeyType number:

140515,139716,139715,139714,141544,140518,140517,140516,140506,140504,140122,140121,140109,139745,139744,139738,139737,139736,139734,140520,140519,140450,140449,139766,139765,139764,139250,139249,139248,142130,141835,141834,141833,141832,141831,141830,141829,141535,141524,140004,140003,139749,141862,141769
