> Suspension>Height adjustable suspension - Coilovers>Audi>A4>B8>ST Performance coilovers for Audi A4 - type ST XA
B8 ST Performance coilovers for Audi A4 - type ST XA | races-shop.com View larger

*330 629

ST Suspensions

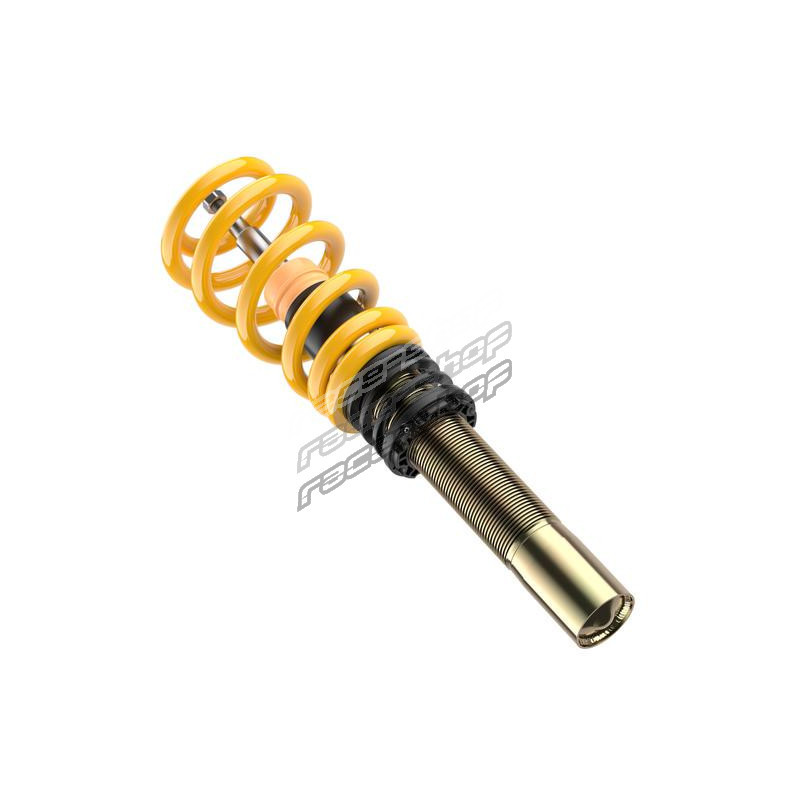

ST Performance coilovers for Audi A4 - type ST XA

Improve you vehicles handling by installing a set of street performance ST Coilovers.

Suitable for: sedan; 4WD

Front axle lowering: 25-55mm

Rear axle lowering: 25-55mm

Show full description

New product

Available on order

At the latest: 18. 9.

1.269,30 € tax incl.

ST-18210075_7

4250580492948

Otázka k produktu

Otázka k produktu

ST Performance coilovers for Audi A4 - type ST XA

ST Performance coilovers for Audi A4 - type ST XA

Improve you vehicles handling by installing a set of street performance ST Coilovers.

Suitable for: sedan; 4WD

Front axle lowering: 25-55mm

Rear axle lowering: 25-55mm

Pošlite obsluhe obchodu otázku k tomuto produktu.

* povinný údaj

  alebo  Zrušiť

Notify me

Notify me about the stock

ST Performance coilovers for Audi A4 - type ST XA

ST Performance coilovers for Audi A4 - type ST XA

To be informed about product update via email, fill out the form.

* Required

  or  Cancel

Improve you vehicles handling by installing a set of street performance ST Coilovers.

Suitable for: sedan; 4WD

Front axle lowering: 25-55mm

Rear axle lowering: 25-55mm



ST XA Coilover series with adjustible damping

For drivers wanting more than just ride height adjustment comes the ST XA coilover. Developed alongside KW Automotive the ST XA allows individual adjustment of the damping to suit just about all your driving needs!

Perfect for sporty driving

ST XA coilovers feature KW damping technology which allows the suspension to be made either stiffer or softer depending on the driving conditions. This damping adjustment is made on the upper end of the chromed piston rod allowing the setup to be changed almost instantly. If the rebound force is increased, the car will drive with even more track stability and further reduced bodyroll. If the rebound force is decreased, the car will feel more comfortable when on the move. Any vehicle fitted with ST XA coilovers will act much more agile and sporty compared to standard.

Easy lowering adjustment

Like all ST coilovers the lowering adjustment is made via a continuous thread on the galvanized strut. This even allows the lowering to be made even when the kit is installed by turning the spring plate higher or lower! NOTE: The lowering of each vehicle differs greatly with ST XA coilovers due to the type and year of construction.

KW Engineering: Exclusive for ST suspension

The high-quality ST XA coilover is based on the twin-tube damping principle of low friction combined with pressure-resistant damper housings. Manufactured directly at KW, a mono block guide and seal package reduces the friction of the damper as well as protecting it against corrosion and dirt. Each galvanized strut is sealed multiple times to ensure maximum longevity in ALL weather conditions.



Lowering with St\Tyle: the ST XA coilovers

  • External damper adjustment
  • Latest damping technology for maximum longevity
  • Reduced system friction for effective damping adjustment
  • Individual lowering within the tested adjustment range
  • Front and rear axle (when possible) with thread adjustment
  • Galvanized coilover struts with additional coating for an optimized corrosion protection
  • Complete solution with adjustable spring plate, spring system and bumpers with dust protection



Suitable for:

Make: Audi
Model: A4
Type: (B8, B81)
Year: 11/07-09/15
Additional information: sedan; 4WD



Manufacturers note:

  • Excluding models with automatic level control, or automatic level system can be adjusted in accordance.
  • At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510144.

  •

    Technical information:

    Material: Galvanized steel
    Product line: Street Performance coilover kit
    Coilover version: ST XA
    Damping adjustment: Rebound damping
    Front axle load (FA): 1081-1225kg
    Rear axle load (RA): -1225kg
    Front axle lowering (VA): 25-55mm
    Rear axle lowering (HA): 25-50mm

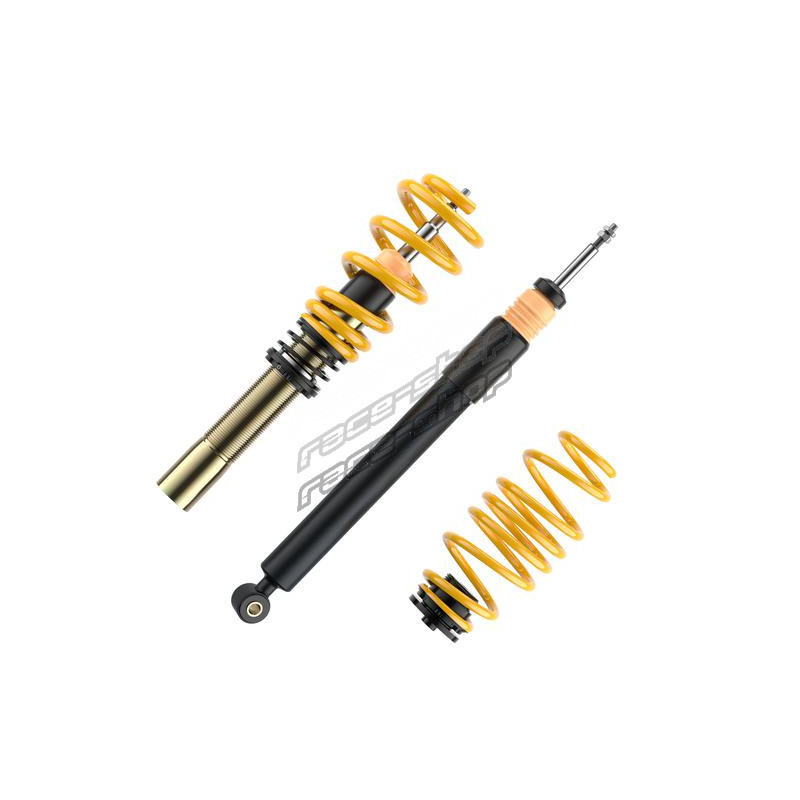

    Package content:

    Set FA coilover struts, RA springs with height adjustment + dampers





    Full coilover kit application:

    ManufacturerModelTypeEngineVehicle shapeFuelPerformanceCubic capacityCylinderFour wheel drive
    AUDIA4 (8K2, B8) 08/2007-12/20158K2, B82.0 TDI quattroSaloonDiesel105 KW1968 ccm4 CylinderNo
    AUDIA4 (8K2, B8) 08/2007-12/20158K2, B82.0 TDI quattroSaloonDiesel110 KW1968 ccm4 CylinderNo
    AUDIA4 (8K2, B8) 08/2007-12/20158K2, B82.0 TDI quattroSaloonDiesel125 KW1968 ccm4 CylinderNo
    AUDIA4 (8K2, B8) 08/2007-12/20158K2, B82.0 TDI quattroSaloonDiesel130 KW1968 ccm4 CylinderNo
    AUDIA4 (8K2, B8) 08/2007-12/20158K2, B82.0 TDI quattroSaloonDiesel140 KW1968 ccm4 CylinderNo
    AUDIA4 (8K2, B8) 08/2007-12/20158K2, B82.0 TDISaloonDiesel100 KW1968 ccm4 CylinderNo
    AUDIA4 (8K2, B8) 08/2007-12/20158K2, B82.0 TDISaloonDiesel105 KW1968 ccm4 CylinderNo
    AUDIA4 (8K2, B8) 08/2007-12/20158K2, B82.0 TDISaloonDiesel110 KW1968 ccm4 CylinderNo
    AUDIA4 (8K2, B8) 08/2007-12/20158K2, B82.0 TDISaloonDiesel120 KW1968 ccm4 CylinderNo
    AUDIA4 (8K2, B8) 08/2007-12/20158K2, B82.0 TDISaloonDiesel130 KW1968 ccm4 CylinderNo
    AUDIA4 (8K2, B8) 08/2007-12/20158K2, B82.0 TDISaloonDiesel140 KW1968 ccm4 CylinderNo
    AUDIA4 (8K2, B8) 08/2007-12/20158K2, B82.0 TFSI quattroSaloonPetrol132 KW1984 ccm4 CylinderNo
    AUDIA4 (8K2, B8) 08/2007-12/20158K2, B82.0 TFSI quattroSaloonPetrol155 KW1984 ccm4 CylinderNo
    AUDIA4 (8K2, B8) 08/2007-12/20158K2, B82.0 TFSI quattroSaloonPetrol162 KW1984 ccm4 CylinderNo
    AUDIA4 (8K2, B8) 08/2007-12/20158K2, B82.0 TFSI quattroSaloonPetrol165 KW1984 ccm4 CylinderNo
    AUDIA4 (8K2, B8) 08/2007-12/20158K2, B82.0 TFSISaloonPetrol162 KW1984 ccm4 CylinderNo
    AUDIA4 (8K2, B8) 08/2007-12/20158K2, B82.7 TDISaloonDiesel120 KW2698 ccm6 CylinderNo
    AUDIA4 (8K2, B8) 08/2007-12/20158K2, B82.7 TDISaloonDiesel140 KW2698 ccm6 CylinderNo
    AUDIA4 (8K2, B8) 08/2007-12/20158K2, B83.0 TDI quattroSaloonDiesel155 KW2967 ccm6 CylinderNo
    AUDIA4 (8K2, B8) 08/2007-12/20158K2, B83.0 TDI quattroSaloonDiesel176 KW2967 ccm6 CylinderNo
    AUDIA4 (8K2, B8) 08/2007-12/20158K2, B83.0 TDI quattroSaloonDiesel180 KW2967 ccm6 CylinderNo
    AUDIA4 (8K2, B8) 08/2007-12/20158K2, B83.0 TDISaloonDiesel150 KW2967 ccm6 CylinderNo
    AUDIA4 (8K2, B8) 08/2007-12/20158K2, B83.0 TFSI quattroSaloonPetrol200 KW2995 ccm6 CylinderNo
    AUDIA4 (8K2, B8) 08/2007-12/20158K2, B83.2 FSI quattroSaloonPetrol195 KW3197 ccm6 CylinderNo
    AUDIA4 (8K2, B8) 08/2007-12/20158K2, B83.2 FSISaloonPetrol195 KW3197 ccm6 CylinderNo
    AUDIA4 (8K2, B8) 08/2007-12/20158K2, B8S4 quattroSaloonPetrol245 KW2995 ccm6 CylinderNo
    AUDIA5 (8T3) 06/2007-01/20178T32.0 TDI quattroCoupeDiesel130 KW1968 ccm4 CylinderNo
    AUDIA5 (8T3) 06/2007-01/20178T32.0 TDI quattroCoupeDiesel140 KW1968 ccm4 CylinderNo
    AUDIA5 (8T3) 06/2007-01/20178T32.0 TDICoupeDiesel120 KW1968 ccm4 CylinderNo
    AUDIA5 (8T3) 06/2007-01/20178T32.0 TDICoupeDiesel130 KW1968 ccm4 CylinderNo
    AUDIA5 (8T3) 06/2007-01/20178T32.0 TDICoupeDiesel140 KW1968 ccm4 CylinderNo
    AUDIA5 (8T3) 06/2007-01/20178T32.0 TFSI quattroCoupePetrol162 KW1984 ccm4 CylinderNo
    AUDIA5 (8T3) 06/2007-01/20178T32.7 TDICoupeDiesel120 KW2698 ccm6 CylinderNo
    AUDIA5 (8T3) 06/2007-01/20178T32.7 TDICoupeDiesel140 KW2698 ccm6 CylinderNo
    AUDIA5 (8T3) 06/2007-01/20178T33.0 TDI quattroCoupeDiesel155 KW2967 ccm6 CylinderNo
    AUDIA5 (8T3) 06/2007-01/20178T33.0 TDI quattroCoupeDiesel160 KW2967 ccm6 CylinderNo
    AUDIA5 (8T3) 06/2007-01/20178T33.0 TDI quattroCoupeDiesel176 KW2967 ccm6 CylinderNo
    AUDIA5 (8T3) 06/2007-01/20178T33.0 TDI quattroCoupeDiesel180 KW2967 ccm6 CylinderNo
    AUDIA5 (8T3) 06/2007-01/20178T33.0 TDICoupeDiesel150 KW2967 ccm6 CylinderNo
    AUDIA5 (8T3) 06/2007-01/20178T33.0 TFSI quattroCoupePetrol200 KW2995 ccm6 CylinderNo
    AUDIA5 (8T3) 06/2007-01/20178T33.2 FSI quattroCoupePetrol195 KW3197 ccm6 CylinderNo
    AUDIA5 (8T3) 06/2007-01/20178T33.2 FSICoupePetrol195 KW3197 ccm6 CylinderNo
    AUDIA5 (8T3) 06/2007-01/20178T3RS5 quattroCoupePetrol331 KW4163 ccm8 CylinderNo
    AUDIA5 (8T3) 06/2007-01/20178T3S5 quattroCoupePetrol245 KW2995 ccm6 CylinderNo
    AUDIA5 (8T3) 06/2007-01/20178T3S5 quattroCoupePetrol249 KW2995 ccm6 CylinderNo
    AUDIA5 (8T3) 06/2007-01/20178T3S5 quattroCoupePetrol260 KW4163 ccm8 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F71.8 TFSIConvertiblePetrol125 KW1798 ccm4 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F71.8 TFSIConvertiblePetrol130 KW1798 ccm4 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F72.0 TDI quattroConvertibleDiesel130 KW1968 ccm4 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F72.0 TDI quattroConvertibleDiesel140 KW1968 ccm4 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F72.0 TDIConvertibleDiesel105 KW1968 ccm4 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F72.0 TDIConvertibleDiesel110 KW1968 ccm4 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F72.0 TDIConvertibleDiesel120 KW1968 ccm4 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F72.0 TDIConvertibleDiesel125 KW1968 ccm4 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F72.0 TDIConvertibleDiesel130 KW1968 ccm4 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F72.0 TDIConvertibleDiesel140 KW1968 ccm4 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F72.0 TFSI quattroConvertiblePetrol155 KW1984 ccm4 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F72.0 TFSI quattroConvertiblePetrol162 KW1984 ccm4 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F72.0 TFSI quattroConvertiblePetrol165 KW1984 ccm4 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F72.0 TFSI quattroConvertiblePetrol169 KW1984 ccm4 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F72.0 TFSIConvertiblePetrol132 KW1984 ccm4 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F72.0 TFSIConvertiblePetrol155 KW1984 ccm4 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F72.0 TFSIConvertiblePetrol162 KW1984 ccm4 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F72.0 TFSIConvertiblePetrol165 KW1984 ccm4 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F72.0 TFSIConvertiblePetrol169 KW1984 ccm4 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F72.7 TDIConvertibleDiesel120 KW2698 ccm6 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F72.7 TDIConvertibleDiesel140 KW2698 ccm6 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F73.0 TDI quattroConvertibleDiesel160 KW2967 ccm6 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F73.0 TDI quattroConvertibleDiesel176 KW2967 ccm6 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F73.0 TDI quattroConvertibleDiesel180 KW2967 ccm6 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F73.0 TDIConvertibleDiesel150 KW2967 ccm6 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F73.0 TFSI quattroConvertiblePetrol200 KW2995 ccm6 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F73.2 FSI quattroConvertiblePetrol195 KW3197 ccm6 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F73.2 FSIConvertiblePetrol195 KW3197 ccm6 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F7RS5 quattroConvertiblePetrol331 KW4163 ccm8 CylinderNo
    AUDIA5 Convertible (8F7) 02/2009-01/20178F7S5 quattroConvertiblePetrol245 KW2995 ccm6 CylinderNo
    AUDIA5 Sportback (8TA) 07/2007-01/20178TA2.0 TDI quattroHatchbackDiesel125 KW1968 ccm4 CylinderNo
    AUDIA5 Sportback (8TA) 07/2007-01/20178TA2.0 TDI quattroHatchbackDiesel130 KW1968 ccm4 CylinderNo
    AUDIA5 Sportback (8TA) 07/2007-01/20178TA2.0 TDI quattroHatchbackDiesel140 KW1968 ccm4 CylinderNo
    AUDIA5 Sportback (8TA) 07/2007-01/20178TA2.0 TDIHatchbackDiesel100 KW1968 ccm4 CylinderNo
    AUDIA5 Sportback (8TA) 07/2007-01/20178TA2.0 TDIHatchbackDiesel105 KW1968 ccm4 CylinderNo
    AUDIA5 Sportback (8TA) 07/2007-01/20178TA2.0 TDIHatchbackDiesel110 KW1968 ccm4 CylinderNo
    AUDIA5 Sportback (8TA) 07/2007-01/20178TA2.0 TDIHatchbackDiesel120 KW1968 ccm4 CylinderNo
    AUDIA5 Sportback (8TA) 07/2007-01/20178TA2.0 TDIHatchbackDiesel125 KW1968 ccm4 CylinderNo
    AUDIA5 Sportback (8TA) 07/2007-01/20178TA2.0 TDIHatchbackDiesel130 KW1968 ccm4 CylinderNo
    AUDIA5 Sportback (8TA) 07/2007-01/20178TA2.0 TDIHatchbackDiesel140 KW1968 ccm4 CylinderNo
    AUDIA5 Sportback (8TA) 07/2007-01/20178TA2.0 TFSI quattroHatchbackPetrol155 KW1984 ccm4 CylinderNo
    AUDIA5 Sportback (8TA) 07/2007-01/20178TA2.0 TFSI quattroHatchbackPetrol165 KW1984 ccm4 CylinderNo
    AUDIA5 Sportback (8TA) 07/2007-01/20178TA2.0 TFSI quattroHatchbackPetrol169 KW1984 ccm4 CylinderNo
    AUDIA5 Sportback (8TA) 07/2007-01/20178TA2.7 TDIHatchbackDiesel120 KW2698 ccm6 CylinderNo
    AUDIA5 Sportback (8TA) 07/2007-01/20178TA2.7 TDIHatchbackDiesel140 KW2698 ccm6 CylinderNo
    AUDIA5 Sportback (8TA) 07/2007-01/20178TA3.0 TDI quattroHatchbackDiesel160 KW2967 ccm6 CylinderNo
    AUDIA5 Sportback (8TA) 07/2007-01/20178TA3.0 TDI quattroHatchbackDiesel176 KW2967 ccm6 CylinderNo
    AUDIA5 Sportback (8TA) 07/2007-01/20178TA3.0 TDI quattroHatchbackDiesel180 KW2967 ccm6 CylinderNo
    AUDIA5 Sportback (8TA) 07/2007-01/20178TA3.0 TDIHatchbackDiesel150 KW2967 ccm6 CylinderNo
    AUDIA5 Sportback (8TA) 07/2007-01/20178TA3.0 TFSI quattroHatchbackPetrol200 KW2995 ccm6 CylinderNo
    AUDIA5 Sportback (8TA) 07/2007-01/20178TA3.2 FSI quattroHatchbackPetrol195 KW3197 ccm6 CylinderNo
    AUDIA5 Sportback (8TA) 07/2007-01/20178TAS5 quattroHatchbackPetrol245 KW2995 ccm6 CylinderNo
