ST Performance coilovers for Subaru BRZ - type ST XTA Plus3

Improve you vehicles handling by installing a set of street performance ST Coilovers.

Suitable for: EQ, ed (electric); convertible

Front axle lowering: 20-50mm

Rear axle lowering: 20-50mm

New product

Available on order

At the latest: 18. 9.

2.595,50 € tax incl.

ST-1820258804_3

4251778304869

Otázka k produktu

Otázka k produktu

ST Performance coilovers for Subaru BRZ - type ST XTA Plus3

ST Performance coilovers for Subaru BRZ - type ST XTA Plus3

Improve you vehicles handling by installing a set of street performance ST Coilovers.

Suitable for: EQ, ed (electric); convertible

Front axle lowering: 20-50mm

Rear axle lowering: 20-50mm

Pošlite obsluhe obchodu otázku k tomuto produktu.

* povinný údaj

  alebo  Zrušiť

Notify me

Notify me about the stock

ST Performance coilovers for Subaru BRZ - type ST XTA Plus3

ST Performance coilovers for Subaru BRZ - type ST XTA Plus3

To be informed about product update via email, fill out the form.

* Required

  or  Cancel

Improve you vehicles handling by installing a set of street performance ST Coilovers.

Suitable for: EQ, ed (electric); convertible

Front axle lowering: 20-50mm

Rear axle lowering: 20-50mm

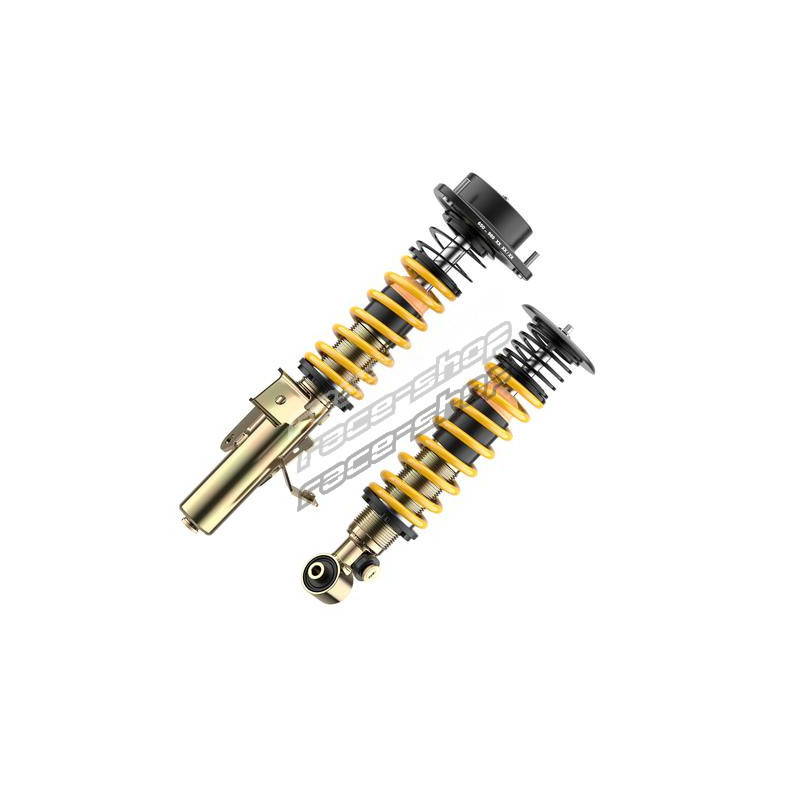

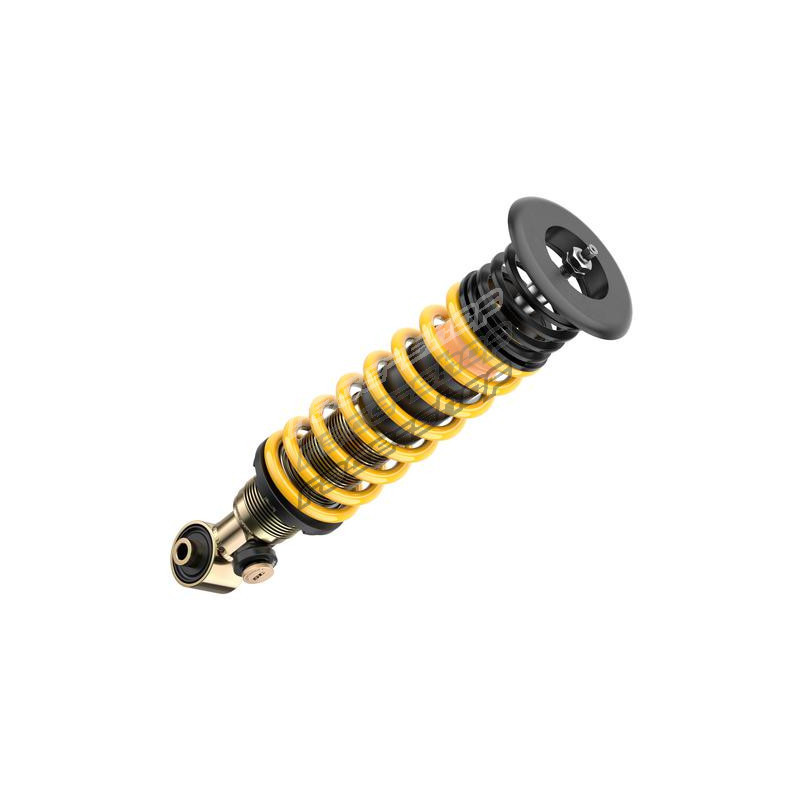

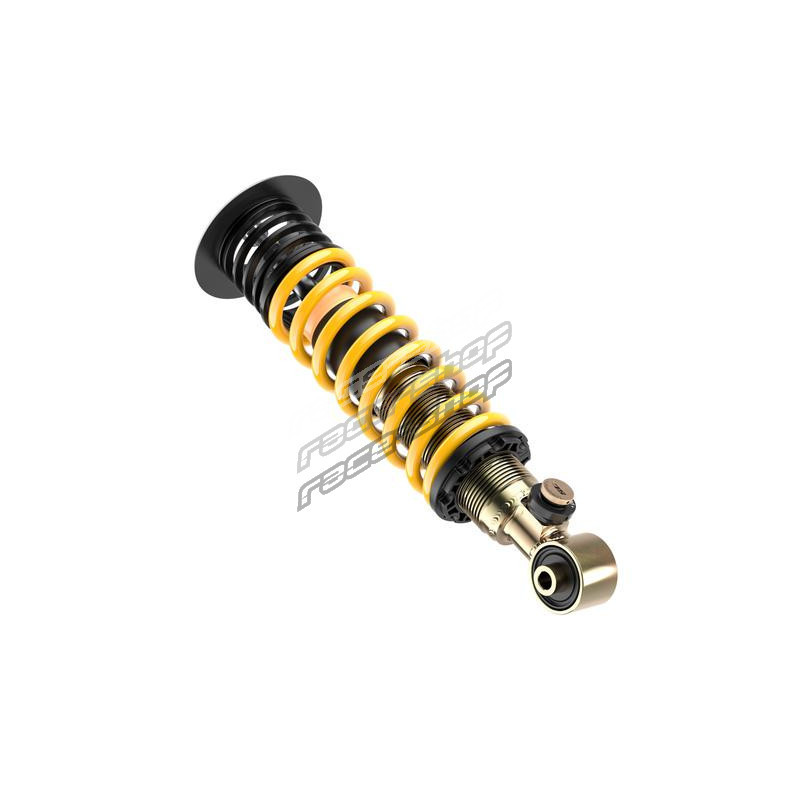

ST XTA Plus3 Coilover series with top mounts and adjustible compression damping and rebound

The XTA plus 3 coilover kit gives your car maximum performance for the road and the tools you need for any challenge

From the factory, the XTA plus 3 coilover kit is equipped with KW dampers that are adjustable in high- and lowspeed compression as well as adjustable rebound damping. With 24 clicks of adjustment for each, high speed and low speed compression damping and 18 clicks of rebound adjustment, your suspension knows no limits. It doesn’t matter if you bolt in an aftermarket roll cage, weld in a cage, modification to PU bushings upgrade to spherical bushing or changed wheel loads – the XTA plus 3 coilover has what it takes to keep your car dialed! Of course, the XTA plus 3 also includes a parts approval certificate, race springs and aluminium unibal top mounts.



Easy lowering adjustment

Like all ST coilovers the lowering adjustment is made via a continuous thread on the galvanized strut. This even allows the lowering to be made even when the kit is installed by turning the spring plate higher or lower! NOTE: The lowering of each vehicle differs greatly with ST XTA plus 3 coilovers due to the type of construction.

KW Engineering: Exclusive for ST suspension

The high-quality ST XTA plus 3 coilover is based on the twin-tube damping principle of low friction combined with pressure-resistant damper housings. Manufactured directly at KW, a mono block guide and seal package reduces the friction of the damper as well as protecting it against corrosion and dirt. Each galvanized strut is sealed multiple times to ensure maximum longevity in ALL weather conditions.



Lowering with St\Tyle: the ST XTA coilovers

  • Latest damping technology for maximum longevity
  • Reduced system friction for effective damping adjustment
  • Individual lowering within the tested adjustment range
  • Front and rear axle (when possible) with thread adjustment
  • Galvanized coilover struts with additional coating for an optimized corrosion protection
  • Complete solution with adjustable spring plate, spring system and bumpers with dust protection
  • Aluminium adjustable uniball top mounts (when possible)
  • Scaled camber adjustment, when possible
  • 3-way adjustable dampers: 18 clicks low speed rebound damping, 24 clicks low speed compression damping, 24 clicks high speed compression dampin

Suitable for:

Make: Subaru
Model: BRZ
Type: (Z2)
Year: 11/20-
Additional information: EQ, ed (electric); convertible



Manufacturers note:

-



Technical information:

Material: Galvanized steel
Product line: Street Performance coilover kit
Coilover version: ST XTA Plus3
Damping adjustment: Rebound and compression damping
Front axle load (FA): -876kg
Rear axle load (RA): -943kg
Front axle lowering (VA): 20-50mm
Rear axle lowering (HA): 25-55mm



Package content:

Set FA coilover struts incl. top mounts + RA coilover struts





Full coilover kit application:

ManufacturerModelTypeEngineVehicle shapeFuelPerformanceCubic capacityCylinderFour wheel drive
SCIONFR-S Coupe 09/2011--2.0 SCoupePetrol149 KW1998 ccm4 CylinderNo
SUBARUBRZ (ZD8) 10/2021-ZD82.4CoupePetrol172 KW2387 ccm4 CylinderNo
SUBARUBRZ 06/2012-07/2020-2.0CoupePetrol147 KW1998 ccm4 CylinderNo
SUBARUBRZ 06/2012-07/2020-2CoupePetrol152 KW1998 ccm4 CylinderNo
SUBARUBRZ 06/2012-07/2020-2CoupePetrol153 KW1998 ccm4 CylinderNo
TOYOTAGR 86 Coupe (ZN8) 09/2021-ZN82.4CoupePetrol170 KW2387 ccm4 CylinderNo
TOYOTAGR 86 Coupe (ZN8) 09/2021-ZN82.4CoupePetrol172 KW2387 ccm4 CylinderNo
TOYOTAGT 86 Coupe (ZN6_) 03/2012-03/2021ZN6_2.0 (ZN6)CoupePetrol149 KW1998 ccm4 CylinderNo
TOYOTAGT 86 Coupe (ZN6_) 03/2012-03/2021ZN6_2.0 (ZN6AC_, ZN6BC_)CoupePetrol147 KW1998 ccm4 CylinderNo
TOYOTAGT 86 Coupe (ZN6_) 03/2012-03/2021ZN6_2.0 (ZN6EY_)CoupePetrol152 KW1998 ccm4 CylinderNo
