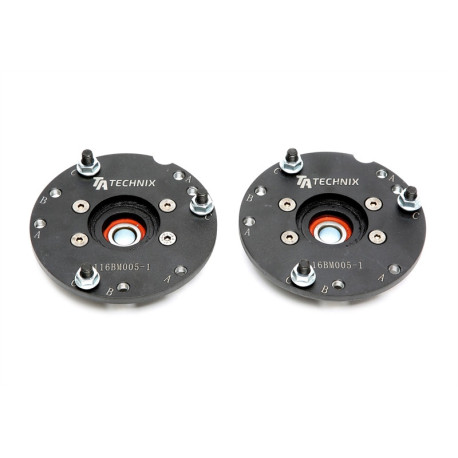

TA-TECHNIX lowering strut top mount set for BMW 3er E90/E91/E92/E93, front axle

Suitable for:

• BMW 3er, type E90, E91, E92, E93

Fits the TA-TECHNIX kits: LFBM01S, LFBM01S-1, LFBM02, LFBM03, LFBM03-1, LFBM04, LFBM04-1, LFBM05, LFBM05-1, LFBM06, LFBM06-1, LFBM06H, LFBM06H-1, LFBM07, LFBM07-1, LFBM08, LFBM08-1, LFBM09, LFBM09H, LFBM09-1, LFBM09H-1, LFBM10, LFBM10-1, LFBM11, LFBM11-1, LFBM12, LFBM14, LFBM14-1, LFBM15, LFBM15-1, X-GWBM01, X-GWBM02, X-GWBM03, X-GWBM04, X-GWBM09, X-GWBM09H or coilovers with their own adapter plate.

Technical data:

• Axle: front axle
• double locking / multiple bores
• lower overall height = additional lowering of 20 mm
• with bearing
• hole A: BMW 3er E21 / 3/0CS E9
• hole B: BMW 1er E81, E82, E87, E88 / 3er E36, E46, E90-E93 / 5er E39, E60, E61 / 6er E63, E64 / 7er E38 / X1 E84 / X3 E83 / Z3 E36 / Z4 E85, E86, E89
• hole C: BMW 3er E30 / 5er E28, E34 / 6er E24 / Z1
• bore with bush: M12
• bore without bush: M14
• ball bearing sealed on both sides, very smooth running and low wear
• Supplied as: 1 set = 2 pieces
• Weight: 2.17 kg
• The part has no German TÜV certificate – it is not approved for road use in Germany

Note: Can only be used with the matching adapter plate of a coilover or air suspension. The part does not work with a standard spring diameter / spring taper at the top. The top mounts cannot be combined with standard / OE parts.
