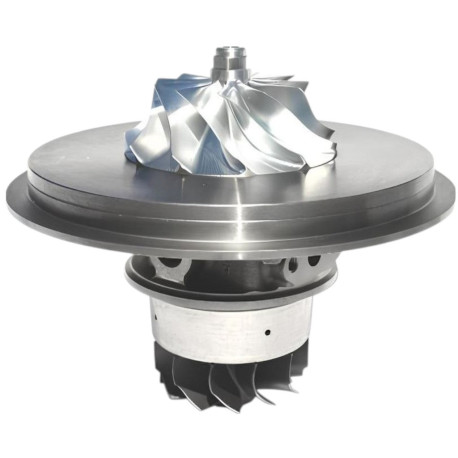

GARRETT 938338-5001S CHRA CARTRIDGE G-SERIES II G42-1325C

Description GARRETT 938338-5001S CHRA Cartridge G-Series II G42-1325c

The Garrett G-Series II CHRA delivers enhanced power and thermal efficiency through advanced compressor aero technology. Engineered as a high-performance upgrade, it provides compatibility with existing Gen I compressor and turbine housings, allowing for flexible integration in motorsport and tuning applications.

Specifications

• New-generation compressor aero increases power output and efficiency
• Direct upgrade for Gen I setups using turbo, supercore, or CHRA
• Maintains compatibility with Gen I compressor and turbine housings
• Delivers up to 10% higher compressor flow at peak performance levels
• Optimized for high-efficiency output at elevated flow rates
• Supports both standard and reverse rotation configurations
• Utilizes a Mar-M alloy turbine wheel rated for temperatures up to 1050C
• Stainless steel turbine housings also rated to withstand up to 1050C

Product category: Center Housing Rotating Assembly (CHRA) - core
