TWIN DISC CLUTCH SET FOR TOYOTA 1JZ/ 2JZ engine and 5 speed BMW ZF M50/ M52/ M54 gearbox - STAGE 4

Name: TWIN DISC CLUTCH SET FOR TOYOTA 1JZ/ 2JZ engine and 5 speed BMW ZF M50/ M52/ M54 gearbox - STAGE 4
Brand: FTWL
SKU: JZ/M50TDSTG4
Price: 2158.70 EUR
Availability: BackOrder

HIGH-PERFORMANCE TWIN DISC CLUTCH SET FOR TOYOTA 1JZ, 2JZ engine and 5 speed BMW ZF M50/M52/M54 gearbox - STAGE 4

Show full description

Condition: New product

Reference: JZ/M50TDSTG4

Otázka k produktu

Notify me

Frequently bought together

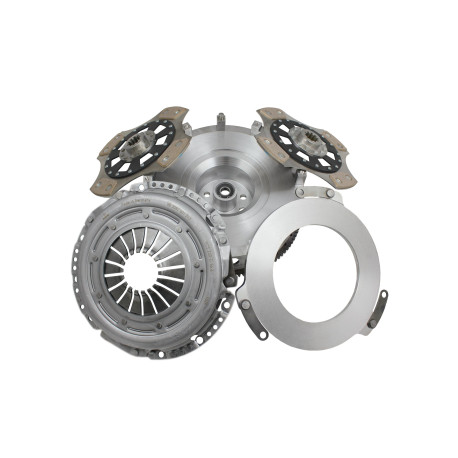

HIGH-PERFORMANCE TWIN DISC CLUTCH SET FOR TOYOTA 1JZ, 2JZ engine and 5 speed BMW ZF M50/M52/M54 gearbox - STAGE 4

Set consist of single mass twin disc clutch set, throwout bearing and all needed bolts
Probably the best offer on the tuning market
100% CNC machined parts - MADE IN UE
Precision machining and alignment assures precise fit
MONOBLOCK single mass flywheel - weight ~ 8,2 kgs.
Rotating assembly weight ~15,2 kgs. (flywheel + middle plate + pressure plate)
Custom made and lightweight 240 mm 4 puck sintered clutch discs (MIBA sintered pads)
Sachs Performance 883082001243 pressure plate without SAC system
Heat-resistant CNC machined clutch discs spacer/middle plate
Clutch sets are fully balanced - END TO END - flywheel + middle plate + pressure plate together in accordance to the G6.3 class and up to 8500 rpm. Each clutch set is delivered with unique balance protocol
Thanks to ultimate design and quality of the middle plate it is not making any noises when you press the clutch pedal. It will also not get stuck when gets heat because it is not touching the flywheel anywhere
Works and engages smooth (despite sintered clutch discs)
Delivered with 19 mm thick aluminium adapter plate with all necessary bolts. Adapter requires DENSO 228000 series starter motor which has no aluminium cover over the starter gear.
Fits to TOYOTA 1JZ, 2JZ engines with following transmissions:
ZF/GETRAG M50, M52, M54 5 speed and E36 M3 6 speed gearboxes - 23x29-10N spline shaft
Set will not fit to the lift M54B30 6 speed gearbox
Set will not fit to the ZF 5 speed N47M, M57 and E46 M3 gearboxes spline shaft 28x35-10N
Perfect for high power turbocharged engines
Rated up to 1200–1400 Nm of torque under normal driving conditions and 1200 Nm in drifting (remember to keep torque reserve)
Professional installation is necessary + break-in procedure required - at least 1000 km or 5000 gear shifts
Our flywheels always have got starter gear mounted on it (monoblock solution)
All used parts are typical - it means that whole set can be cheaply and fast renewed
Each product has been stress tested - because only power and quality matters.
