*365 106

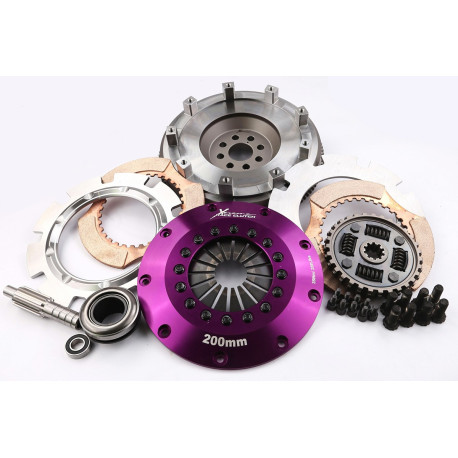

KBM20530-2B Xtreme Performance 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
New product
KBM20530-2B
9337467199925
Frequently bought together
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
Xtreme Motorsport 200mm twin plateThe Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

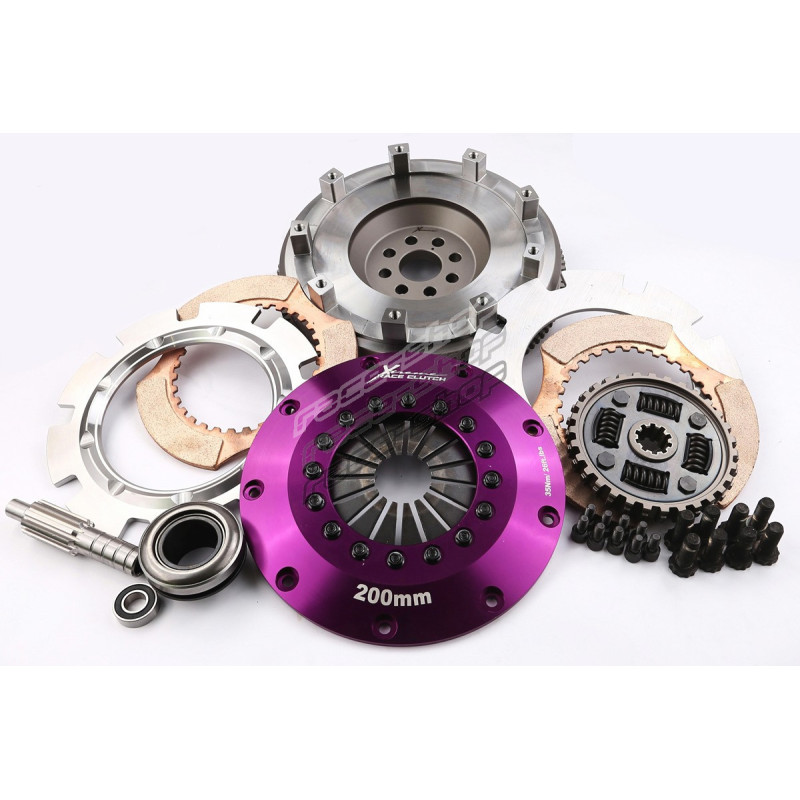

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- High torque sprung driven discs (common hub)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7.4kg |
| Disc Set Static Mass | 2.15kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Tech. Info:
Reference: KBM20530-2B
Weight: 15.65
Note:
Clutch Disc Diameter (mm): 200
Clutch Disc Spline Count: 10
Clutch Disc Spline Diameter (mm): 29
Torque (Nm): 1200
Flywheel Step: +2.2mm
Design: Twin Plate
Stage: Multiplate - track use only
Clamp Load: 1000kg
Recommended for: Motorsport
Ring Gear Tooth count:
Additional information:
200mm Twin Plate
Suitable for:
- BMW/3-Series/E30 | 318is/1989-1991/1796cc | 100KW | 136HP | M42 B18 (184S1) (1989-1991)
BMW/3-Series/E36 | 318is/1992-1995/1796cc | 103KW | 140HP | M42 B18 (184S1) (1992-1995)
BMW/3-Series/E36 | 318is/1993-1995/1796cc | 103KW | 140HP | M42 B18 (184S1) (1993-1995)
BMW/3-Series/E36 | 318Ti/1994-1995/1796cc | 103KW | 140HP | M42 B18 (184S1) (1994-1995)
BMW/5-Series/E34 | 518i/1989-1994/1796cc | 83KW | 113HP | M40 B18 (184E1) (1989-1994)
BMW/5-Series/E34 | 518i/1993-1994/1796cc | 83KW | 113HP | M40 B18 (184E1) (1993-1994)
BMW/5-Series/E34 | 518i/1994-1995/1796cc | 85KW | 115HP | M43 B18 (184E2) (1994-1995)
BMW/5-Series/E34 | 518i/1994-1996/1796cc | 85KW | 115HP | M43 B18 (184E2) (1994-1996)
BMW/Z3/E36 | 1.9i/1995-1999/1895cc | 103KW | 140HP | M44 B19 (194S1) (1995-1999)
BMW/3-Series/E36 | 318is/1995-1999/1895cc | 103KW | 140HP | M44 B19 (194S1) (1995-1999)
BMW/3-Series/E36 | 318is/1996-1998/1895cc | 103KW | 140HP | M44 B19 (194S1) (1996-1998)
BMW/3-Series/E36 | 318Ti/1996-1999/1895cc | 103KW | 140HP | M44 B19 (194S1) (1996-1999)
BMW/3-Series/E46 | 320i/1998-2000/1990cc | 110KW | 150HP | M52 B20 (206S4) (1998-2000)
BMW/3-Series/E46 | 320i/1999-2000/1990cc | 110KW | 150HP | M52 B20 (206S4) (1999-2000)
BMW/3-Series/E46 | 320Ci/1999-2001/1990cc | 110KW | 150HP | M52 B20 (206S4) (1999-2001)
BMW/3-Series/E46 | 320Ci/2000-2007/2171cc | 125KW | 170HP | M54 B22 (226S1) (2000-2007)
BMW/3-Series/E36 | 323Ti/1997-2000/2494cc | 125KW | 170HP | M52 B25 (256S3) (1997-2000)
BMW/3-Series/E46 | 323i/1998-2000/2494cc | 125KW | 170HP | M52 B25 (256S4) (1998-2000)
BMW/3-Series/E46 | 323Ci/1999-2000/2494cc | 125KW | 170HP | M52 B25 (256S4) (1999-2000)
BMW/3-Series/E36 | 325i/1990-1995/2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2) (1990-1995)
BMW/3-Series/E36 | 325i/1991-1995/2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2) (1991-1995)
BMW/3-Series/E36 | 325i/1993-1995/2494cc | 141KW | 192HP | M50 B25 (256S2) (1993-1995)
BMW/3-Series/E36 | 328i/1995-1998/2793cc | 142KW | 193HP | M52 B28 (286S1) (1995-1998)
BMW/3-Series/E36 | 328i/1995-1999/2793cc | 142KW | 193HP | M52 B28 (286S1) (1995-1999)
BMW/3-Series/E46 | 328Ci/1998-2000/2793cc | 142KW | 193HP | M52 B28 (286S2) (1998-2000)
BMW/3-Series/E46 | 328i/1998-2000/2793cc | 142KW | 193HP | M52 B28 (286S2) (1998-2000)
BMW/3-Series/E46 | 328i/1999-2000/2793cc | 142KW | 193HP | M52 B28 (286S2) (1999-2000)
BMW/3-Series/E36 | M3 3.0/1992-1995/2990cc | 210KW | 286HP | S50 B30 (306S1) (1992-1995)
BMW/3-Series/E36 | M3 3.0/1994-1995/2990cc | 210KW | 286HP | S50 B30 (306S1) (1994-1995)
BMW/3-Series/E36 | M3 3.0/1993-1995/2990cc | 217KW | 295HP | S50 B30 (306S1) (1993-1995)
BMW/3-Series/E36 | M3 3.2/1995-1998/3201cc | 236KW | 321HP | S50 B32 (326S1) (1995-1998)
BMW/3-Series/E36 | M3 3.2/1996-1999/3201cc | 236KW | 321HP | S50 B32 (326S1) (1996-1999)
BMW/Z3/E36 | M3/1997-2000/3201cc | 236KW | 321HP | S50 B32 (326S1) (1997-2000)
BMW/Z3/E36 | M3/1998-2001/3201cc | 236KW | 321HP | S50 B32 (326S1);S50 B32 (326S3) (1998-2001) ,
- Write a review
Did not find your question?
Enter new question Do you have a question? Search for an answer.
| Mark | Model | Type | Engine code |
|---|---|---|---|
| BMW | 3-Series | E30 318is | 1796cc 100KW 136HP M42 B18 (184S1) (1989-1991) |
| BMW | 3-Series | E36 318Ti | 1796cc 103KW 140HP M42 B18 (184S1) (1994-1995) |
| BMW | 3-Series | E36 318Ti | 1895cc 103KW 140HP M44 B19 (194S1) (1996-1999) |
| BMW | 3-Series | E36 318is | 1796cc 103KW 140HP M42 B18 (184S1) (1992-1995) |
| BMW | 3-Series | E36 318is | 1796cc 103KW 140HP M42 B18 (184S1) (1993-1995) |
| BMW | 3-Series | E36 318is | 1895cc 103KW 140HP M44 B19 (194S1) (1995-1999) |
| BMW | 3-Series | E36 318is | 1895cc 103KW 140HP M44 B19 (194S1) (1996-1998) |
| BMW | 3-Series | E36 323Ti | 2494cc 125KW 170HP M52 B25 (256S3) (1997-2000) |
| BMW | 3-Series | E36 325i | 2494cc 141KW 192HP M50 B25 (256S1) |
| BMW | 3-Series | E36 325i | 2494cc 141KW 192HP M50 B25 (256S2) (1993-1995) |
| BMW | 3-Series | E36 328i | 2793cc 142KW 193HP M52 B28 (286S1) (1995-1998) |
| BMW | 3-Series | E36 328i | 2793cc 142KW 193HP M52 B28 (286S1) (1995-1999) |
| BMW | 3-Series | E36 M3 3.0 | 2990cc 210KW 286HP S50 B30 (306S1) (1992-1995) |
| BMW | 3-Series | E36 M3 3.0 | 2990cc 210KW 286HP S50 B30 (306S1) (1994-1995) |
| BMW | 3-Series | E36 M3 3.0 | 2990cc 217KW 295HP S50 B30 (306S1) (1993-1995) |
| BMW | 3-Series | E36 M3 3.2 | 3201cc 236KW 321HP S50 B32 (326S1) (1995-1998) |
| BMW | 3-Series | E36 M3 3.2 | 3201cc 236KW 321HP S50 B32 (326S1) (1996-1999) |
| BMW | 3-Series | E46 320Ci | 1990cc 110KW 150HP M52 B20 (206S4) (1999-2001) |
| BMW | 3-Series | E46 320Ci | 2171cc 125KW 170HP M54 B22 (226S1) (2000-2007) |
| BMW | 3-Series | E46 320i | 1990cc 110KW 150HP M52 B20 (206S4) (1998-2000) |
| BMW | 3-Series | E46 320i | 1990cc 110KW 150HP M52 B20 (206S4) (1999-2000) |
| BMW | 3-Series | E46 323Ci | 2494cc 125KW 170HP M52 B25 (256S4) (1999-2000) |
| BMW | 3-Series | E46 323i | 2494cc 125KW 170HP M52 B25 (256S4) (1998-2000) |
| BMW | 3-Series | E46 328Ci | 2793cc 142KW 193HP M52 B28 (286S2) (1998-2000) |
| BMW | 3-Series | E46 328i | 2793cc 142KW 193HP M52 B28 (286S2) (1998-2000) |
| BMW | 3-Series | E46 328i | 2793cc 142KW 193HP M52 B28 (286S2) (1999-2000) |
| BMW | 5-Series | E34 518i | 1796cc 83KW 113HP M40 B18 (184E1) (1989-1994) |
| BMW | 5-Series | E34 518i | 1796cc 83KW 113HP M40 B18 (184E1) (1993-1994) |
| BMW | 5-Series | E34 518i | 1796cc 85KW 115HP M43 B18 (184E2) (1994-1995) |
| BMW | 5-Series | E34 518i | 1796cc 85KW 115HP M43 B18 (184E2) (1994-1996) |
| BMW | Z3 | E36 1.9i | 1895cc 103KW 140HP M44 B19 (194S1) (1995-1999) |
| BMW | Z3 | E36 M3 | 3201cc 236KW 321HP S50 B32 (326S1) |
| BMW | Z3 | E36 M3 | 3201cc 236KW 321HP S50 B32 (326S1) (1997-2000) |
