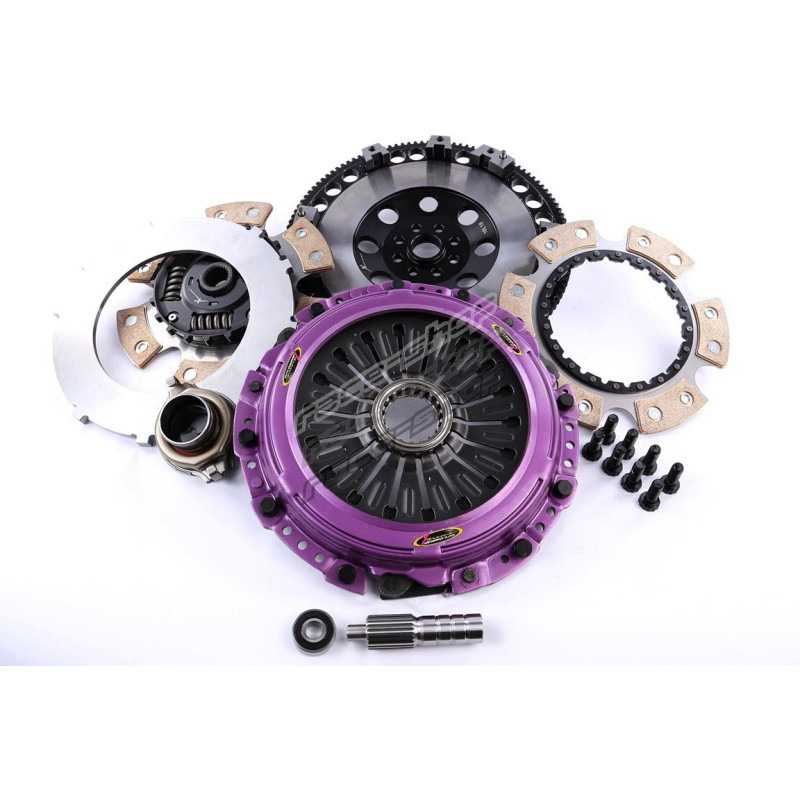

KSU23531-2B Xtreme Performance 230mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1000Nm
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
New product
KSU23531-2B
9337467303940
Frequently bought together
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
Xtreme Clutch 230mm twin plate kitThe Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.
The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Sprung Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.Product Features:
- Torque capacity 1000Nm
- Kit contains everything you need for a successful installation + accessories
- Pull type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
| Flat Diaphragm | Rolled Diaphragm | |
| Clamping Force | 1300kg | 1300kg |
| Torque Rating | 1000Nm | 1000Nm |
| Bearing Contact Diameter | 65mm | FLAT BEARING |
| Bearing Load (@ 48mm) | 180kg | 150kg |
| Release Travel Required | 7mm | 7mm |
| Assembly Mass (without flywheel) | 8.30kg | 8.30kg |
| Disc Set Static Mass | 2.25kg | 2.25kg |
| Friction Thickness New | 8mm (0.315") | 8mm (0.315") |
| Friction Thickness Worn | 7.5mm (0.295") | 7.5mm (0.295") |
Tech. Info:
Reference: KSU23531-2B
Weight: 16.95
Note:
Clutch Disc Diameter (mm): 230
Clutch Disc Spline Count: 24
Clutch Disc Spline Diameter (mm): 25.2
Torque (Nm): 1000
Flywheel Step:
Design: Twin Plate
Stage: Multiplate - track use only
Clamp Load:
Recommended for: Motorsport
Ring Gear Tooth count:
Additional information:
230mm Twin Plate - 6 Speed Gearbox
Suits 6 Speed Gearbox
Suitable for:
- Subaru/Impreza/2.0 Turbo GT AWD (GC8)/1998.06-2000.12/EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) , Suits 6 Speed Gearbox
Subaru/Impreza/2.0 Turbo GT AWD (GF8)/1998.06-2000.12/EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) , Suits 6 Speed Gearbox
Subaru/Impreza/2.0 Turbo AWD (GGA)/2000.12-2005.12/EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) , Suits 6 Speed Gearbox
Subaru/Impreza/2.0 WRX Turbo AWD (GDA) 6 speed/2000.12-2005.12/EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) , Suits 6 Speed Gearbox
Subaru/Impreza/2.0 WRX Turbo AWD (GGA)/2002.12-2006.09/EJ205 1994 Petrol 165 kW 225 BHP (2002.12 - 2006.09) , Suits 6 Speed Gearbox
Subaru/Impreza/2.0 WRX AWD (GGA)/2001.09-2005.12/EJ205 1994 Petrol 169 kW 230 BHP (2001.09 - 2005.12) , Suits 6 Speed Gearbox
Subaru/Impreza/2.0 AWD (GC8)/1998.09-2000.09/EJ205P 1994 Petrol 206 kW 280 BHP (1998.09 - 2000.09) , Suits 6 Speed Gearbox
Subaru/Impreza/2.0 WRX STi AWD (GDB)/2001.11-2005.07/EJ207 1994 Petrol 195 kW 265 BHP (2001.11 - 2005.07) , Suits 6 Speed Gearbox
Subaru/Impreza/2.0 WRX STi AWD (GGB)/2000.10-2002.10/EJ207 1994 Petrol 206 kW 280 BHP (2000.10 - 2002.10) , Suits 6 Speed Gearbox
Subaru/Impreza/2.0 AWD (GDB)/2005.10-2007.03/EJ207 1994 Petrol 206 kW 280 BHP (2005.10 - 2007.03) , Suits 6 Speed Gearbox
Subaru/Impreza/2.0 WRX STi AWD/2004.02-2005.07/EJ207 1994 Petrol 235 kW 320 BHP (2004.02 - 2005.07) , Suits 6 Speed Gearbox
Subaru/Impreza/2.5 WRX STI AWD (GVF)/2010-2014/EJ255 2457 Petrol 221 kW 301 BHP (2010 - 2014) , Suits 6 Speed Gearbox
Subaru/Impreza/2.5 i WRX STI AWD/2005.09-2007.12/EJ257 2457 Petrol 195 kW 265 BHP (2005.09 - 2007.12) , Suits 6 Speed Gearbox
Subaru/Impreza/2.5 WRX STi AWD (GDF)/2005.09-2007.12/EJ257 2457 Petrol 206 kW 280 BHP (2005.09 - 2007.12) , Suits 6 Speed Gearbox
Subaru/Impreza/2.5 AWD/2005.10-2007.03/EJ257 2457 Petrol 221 kW 300 BHP (2005.10 - 2007.03) , Suits 6 Speed Gearbox
Subaru/Impreza/2.5 AWD (GDF)/2005.10-2007.03/EJ257 2457 Petrol 221 kW 300 BHP (2005.10 - 2007.03) , Suits 6 Speed Gearbox
Subaru/Impreza/2.5 WRX STI AWD (GRF)/2008.01-2013.08/EJ257 2457 Petrol 221 kW 301 BHP (2008.01 - 2013.08) , Suits 6 Speed Gearbox
Subaru/WRX/STi 2.5 AWD/2014.06-2021/EJ257 2457 Petrol 221 kW 301 BHP (2014.06 - 2021) , Suits 6 Speed Gearbox
Subaru/Impreza/2.5 WRX STI 330S AWD/2009.05-2010.12/EJ257 2457 Petrol 243 kW 330 BHP (2009.05 - 2010.12) , Suits 6 Speed Gearbox
Subaru/Impreza/2.5 STI CS400 AWD (GRF)/2010.04-2013.08/EJ257 2457 Petrol 294 kW 400 BHP (2010.04 - 2013.08) , Suits 6 Speed Gearbox
- Write a review
Did not find your question?
Enter new question Do you have a question? Search for an answer.
| Mark | Model | Type | Engine code |
|---|---|---|---|
| Subaru | Impreza | 2.0 AWD (GC8) | EJ205P 1994 Petrol 206 kW 280 BHP (1998.09 - 2000.09) |
| Subaru | Impreza | 2.0 AWD (GDB) | EJ207 1994 Petrol 206 kW 280 BHP (2005.10 - 2007.03) |
| Subaru | Impreza | 2.0 Turbo AWD (GGA) | EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) |
| Subaru | Impreza | 2.0 Turbo GT AWD (GC8) | EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) |
| Subaru | Impreza | 2.0 Turbo GT AWD (GF8) | EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) |
| Subaru | Impreza | 2.0 WRX AWD (GGA) | EJ205 1994 Petrol 169 kW 230 BHP (2001.09 - 2005.12) |
| Subaru | Impreza | 2.0 WRX STi AWD (GDB) | EJ207 1994 Petrol 195 kW 265 BHP (2001.11 - 2005.07) |
| Subaru | Impreza | 2.0 WRX STi AWD (GGB) | EJ207 1994 Petrol 206 kW 280 BHP (2000.10 - 2002.10) |
| Subaru | Impreza | 2.0 WRX STi AWD | EJ207 1994 Petrol 235 kW 320 BHP (2004.02 - 2005.07) |
| Subaru | Impreza | 2.0 WRX Turbo AWD (GDA) 6 speed | EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) |
| Subaru | Impreza | 2.0 WRX Turbo AWD (GGA) | EJ205 1994 Petrol 165 kW 225 BHP (2002.12 - 2006.09) |
| Subaru | Impreza | 2.5 AWD (GDF) | EJ257 2457 Petrol 221 kW 300 BHP (2005.10 - 2007.03) |
| Subaru | Impreza | 2.5 AWD | EJ257 2457 Petrol 221 kW 300 BHP (2005.10 - 2007.03) |
| Subaru | Impreza | 2.5 STI CS400 AWD (GRF) | EJ257 2457 Petrol 294 kW 400 BHP (2010.04 - 2013.08) |
| Subaru | Impreza | 2.5 WRX STI 330S AWD | EJ257 2457 Petrol 243 kW 330 BHP (2009.05 - 2010.12) |
| Subaru | Impreza | 2.5 WRX STI AWD (GRF) | EJ257 2457 Petrol 221 kW 301 BHP (2008.01 - 2013.08) |
| Subaru | Impreza | 2.5 WRX STI AWD (GVF) | EJ255 2457 Petrol 221 kW 301 BHP (2010 - 2014) |
| Subaru | Impreza | 2.5 WRX STi AWD (GDF) | EJ257 2457 Petrol 206 kW 280 BHP (2005.09 - 2007.12) |
| Subaru | Impreza | 2.5 i WRX STI AWD | EJ257 2457 Petrol 195 kW 265 BHP (2005.09 - 2007.12) |
| Subaru | WRX | STi 2.5 AWD | EJ257 2457 Petrol 221 kW 301 BHP (2014.06 - 2021) |
