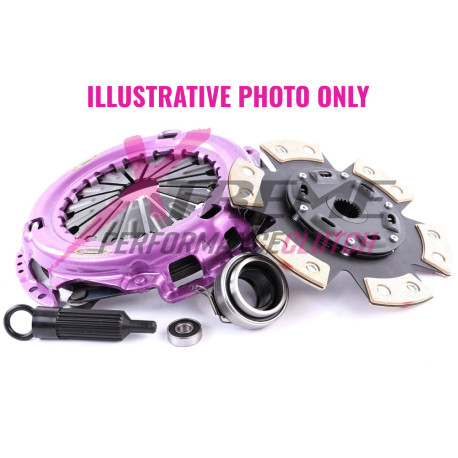

KNI22001-1B Clutch Kit Xtreme Performance Heavy Duty Sprung Ceramic 450Nm 600kg (30%)

Xtreme Performance - sprung ceramic kit /-1BRecommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:

• Torque capacity 450Nm
• Clamp load 600kg 30% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Xtreme PerformanceAt Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KNI22001-1B

Weight: 6.28

Note:

Clutch Disc Diameter (mm): 215
Clutch Disc Spline Count: 24
Clutch Disc Spline Diameter (mm): 25.5
Torque (Nm): 450
Flywheel Step: +.25mm/.010""
Design: Single Plate
Stage: Stage 2
Clamp Load: 600Kg (30% inc.)
Recommended for: Track - Stage 2
Ring Gear Tooth count:
Additional information:

Single Plate

Suitable for:

- Nissan/Bluebird/U12 | 1.8 16V/1989.02-1990.12/CA18DE 1809 Petrol 95 kW 129 BHP (1989.02 - 1990.12)
Nissan/Bluebird/U12 | 2.0/1985.12-1987.12/CA20S 1974 Petrol 75 kW 102 BHP (1985.12 - 1987.12)
Nissan/Bluebird/U12 | 2.0/1985.12-1990.02/CA20S 1974 Petrol 66 kW 90 BHP (1985.12 - 1990.02)
Nissan/Bluebird/T72, T12 | 1.8/1986.05-1992.11/CA18N 1809 Petrol 65 kW 88 BHP (1986.05 - 1992.11)
Nissan/Bluebird/T72, T12 | 2.0/1985.12-1987.12/CA20S 1974 Petrol 75 kW 102 BHP (1985.12 - 1987.12)
Nissan/Prairie/M10 | 2.0 4x4/1986.01-1988.09/CA20S 1974 Petrol 72 kW 98 BHP (1986.01 - 1988.09)
Nissan/Prairie/M10 | 2.0 4x4/1986.01-1988.09/CA20S 1974 Petrol 68 kW 92 BHP (1986.01 - 1988.09)
Nissan/Prairie/M11 | 2.0/1990.09-1992.03/CA20E 1974 Petrol 77 kW 105 BHP (1990.09 - 1992.03)
Nissan/Prairie/M11 | 2.0/1988.10-1992.04/CA20E 1974 Petrol 72 kW 98 BHP (1988.10 - 1992.04)
Nissan/Sunny/B12/N13 | 1.8 GTI 16V/1989.01-1991.06/CA18D 1809 Petrol 92 kW 125 BHP (1989.01 - 1991.06) ,
