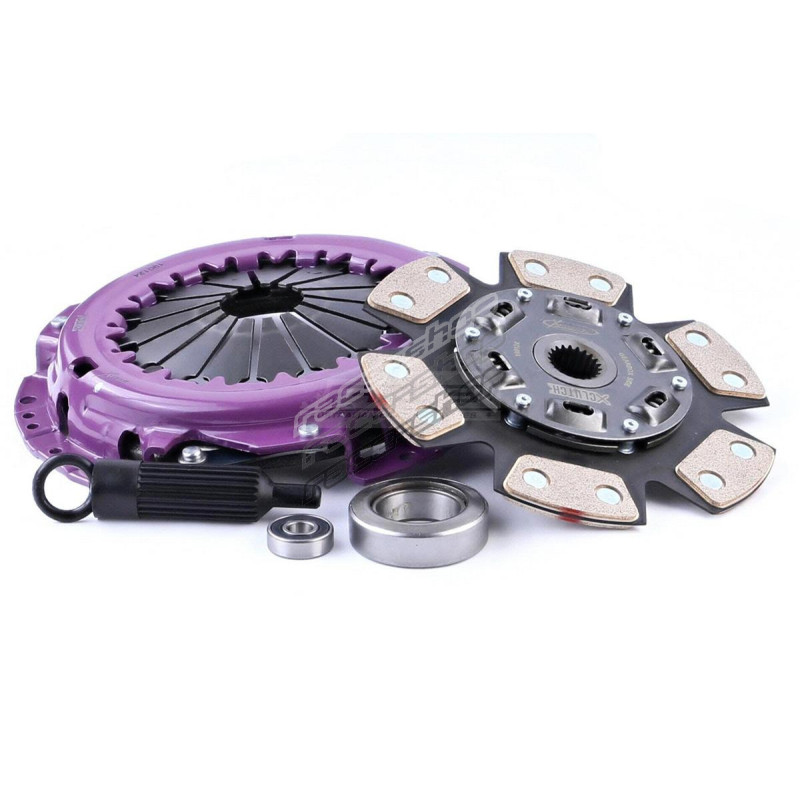

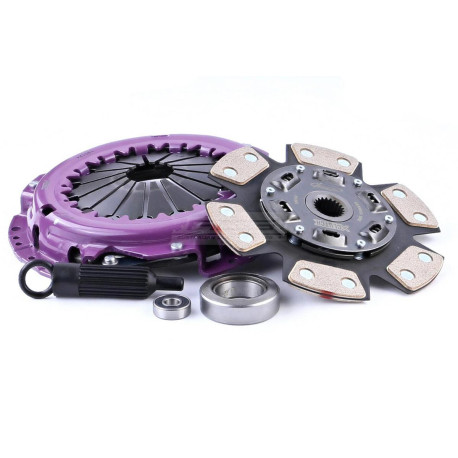

KTY23003-1B Clutch Kit Xtreme Performance Heavy Duty Sprung Ceramic 430Nm 700kg (30%)

Name: KTY23003-1B Clutch Kit Xtreme Performance Heavy Duty Sprung Ceramic 430Nm 700kg (30%)
Brand: Xtreme clutch
SKU: KTY23003-1B
Price: 519.70 EUR
Availability: BackOrder

Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.

Show full description

Condition: New product

Reference: KTY23003-1B

EAN: 9337467084238

Otázka k produktu

Notify me

Frequently bought together

Xtreme Performance - sprung ceramic kit /-1BRecommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:

Torque capacity 430Nm
Clamp load 700kg 30% Increased over standard
Sprung Ceramic Friction Disc
Heavy Duty Pressure Plate
Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Xtreme PerformanceAt Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KTY23003-1B

Weight: 5.93

Note:

Clutch Disc Diameter (mm): 225
Clutch Disc Spline Count: 21
Clutch Disc Spline Diameter (mm): 29
Torque (Nm): 430
Flywheel Step: +.5mm/.020""
Design: Single Plate
Stage: Stage 2
Clamp Load: 700Kg (30% inc.)
Recommended for: Track - Stage 2
Ring Gear Tooth count:
Additional information:

Single Plate

Suitable for:

- Toyota/Soarer/2.0 (GZ20)/1986.09-1991.03/1G-EU 1988 Petrol 77 kW 105 BHP (1986.09 - 1991.03)
Toyota/Soarer/2.0 (GZ20)/1986.09-1991.03/1G-GEU 1988 Petrol 103 kW 140 BHP (1986.09 - 1991.03) ,
