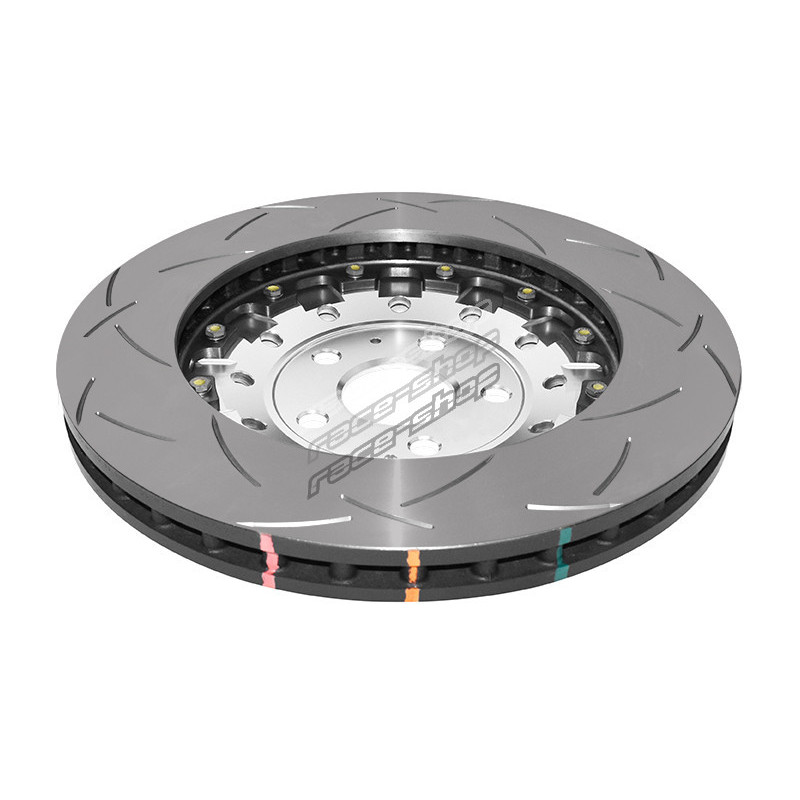

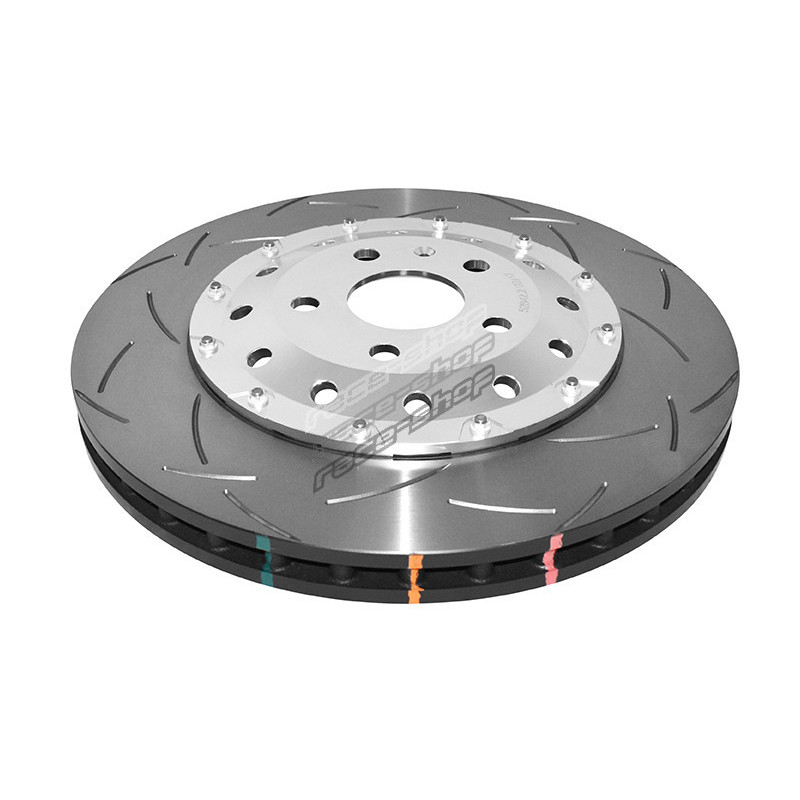

DBA 5000 series T3 Slotted Silver Hat DBA52842SLVS (2 pcs)

T3 Slot – 48 Precision CNC-Machined Slots

Feature: Tri-symmetrical curved slots dampen vibration harmonics and noise

Advantage: Provides a quieter, more responsive, and smoother brake pedal feel

Feature: Increased number of out-gassing exit points for brake pad friction gases

Advantage: Enhances consistency and effectiveness of every brake stop

Feature: Universal slot design

Advantage: Eliminates the need for left and right disc variants

Kangaroo Paw – 144 Diamond and Tear Drop Pillar Ventilation System

Feature: Increased surface area for improved heat dissipation

Advantage: Minimizes brake fade and increases braking effectiveness

Benefit: Prolongs service life for both pads and rotors, reducing mechanical damage and associated costs

XG150 High Carbon Alloyed Iron

Feature: Increased thermal capacity allows the rotor to endure constant extremes of heat

Advantage: Minimizes warping and cracking

Benefit: Extends the service life of the rotor

Thermal Stability Profiling (TSP)

Feature: Special formulation designed to respond to DBA’s TSP process

Advantage: Increases heat tolerance and material stability

Benefit: Minimizes warping and cracking, prolonging rotor lifespan

Thermographic Temperature Monitoring (TTM)

Feature: Heat paint markings change color at specific temperature thresholds

Advantage: Provides a clear visual indication of peak braking temperatures

Feature: Paint markings permanently change color once thresholds are exceeded

Benefit: Helps monitor rotor fatigue, plan replacements, and support warranty claims

Paint Protection on Non-Friction Areas

Feature: Protective coating on non-friction surfaces

Advantage: Reduces corrosion and prevents rust

Benefit: Enhances product appearance and adds long-term value

Technical information:

Diameter [mm]: 370
Disc Vent: Kangaroo Paw
Number of Holes: 5
Inner Diameter [mm]: 65
Minimum Thickness [mm]: 30,4
Thickness [mm]: 32
Height [mm]: 49.7
Pitch Circle [mm]: 112
Stage: Stage 5
OEM: 8J0615301E
Replacement Rotor: DBA52842.1S
ECE R90 number: E11*90R02/06*60518*00

Suitable for:

Front - AUDI/TTRS Plus quattro 8J/2.5 Turbo 360BHP (2012-2014) , Brake Caliper: Brembo Front - AUDI/TTRS quattro 8J/2.5 Turbo 340BHP (2009-2014) , Brake Caliper: Brembo Front - CUPRA/Ateca/2.0 Turbo 296BHP (2018-) Brake Pads: DB2228, Brake Caliper: Brembo Front - CUPRA/Formentor/1.4 Turbo and Electric 242BHP (2020-) Brake Pads: DB2228, Brake Caliper: Brembo Front - CUPRA/Formentor/1.5 Turbo hybrid 272BHP (2024-) Brake Pads: DB2228, Brake Caliper: Brembo Front - CUPRA/Formentor/2.0 Turbo 310BHP (2020-) Brake Pads: DB2228, Brake Caliper: Brembo Front - CUPRA/Formentor/2.0 Turbo VZ 310BHP (2020-) Brake Pads: DB2228, Brake Caliper: Brembo Front - CUPRA/Leon/1.5 Turbo hybrid 272BHP (2024-) Brake Pads: DB2228, Brake Caliper: Brembo Front - CUPRA/Leon/2.0 Turbo 300BHP (2020-2022) Brake Pads: DB2228, Brake Caliper: Brembo Front - CUPRA/Leon/2.0 Turbo 300BHP (2022-) Brake Pads: DB2228, Brake Caliper: Brembo Front - CUPRA/Leon/2.0 Turbo hybrid 330BHP (2024-) Brake Pads: DB2228, Brake Caliper: Brembo Front - SEAT/Leon (5F)/2.0 Turbo Cupra 280BHP (2014-2016) Brake Pads: DB2228, Brake Caliper: Brembo Front - SEAT/Leon (5F)/2.0 Turbo Cupra 290BHP (2015-2017) Brake Pads: DB2228, Brake Caliper: Brembo Front - SEAT/Leon (5F)/2.0 Turbo Cupra 300BHP (2017-2020) Brake Pads: DB2228, Brake Caliper: Brembo Front - SEAT/Leon (5F)/2.0 Turbo Cupra R 310BHP (2018-2020) Brake Pads: DB2228, Brake Caliper: Brembo
