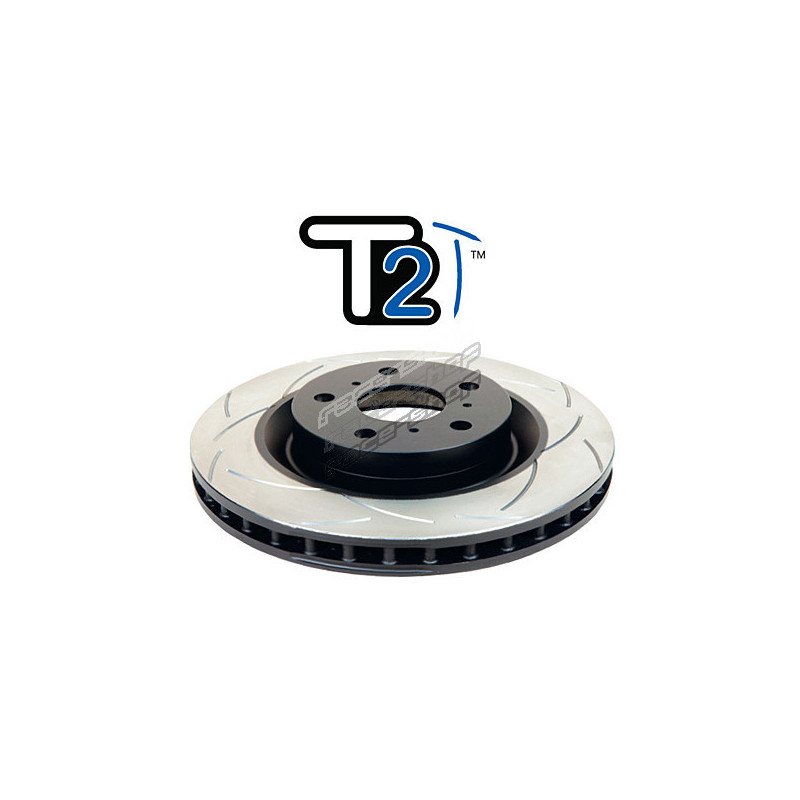

DBA T2 Rotors – Advanced Braking Technology

Key Features & Technologies

T3 Slot Design (48 CNC Precision-Machined Slots)

• Tri-symmetrical curved slots reduce vibration harmonics and noise
• Provides a quieter, smoother, and more responsive brake pedal feel
• Increased out-gassing points for friction gases to escape
• Improves braking consistency and performance under load
• Universal slot design eliminates the need for left/right specific discs

Kangaroo Paw Ventilation System

• 144 diamond and tear-drop shaped pillars for increased surface area
• Enhances heat dissipation to reduce brake fade and improve effectiveness
• Extends the life of both pads and rotors, reducing wear and maintenance costs

XG150 High Carbon Alloyed Iron

• Higher thermal capacity for managing extreme heat during braking
• Reduces the risk of warping and cracking
• Improves overall rotor durability and performance

Thermal Stability Profiling (TSP)

• Special formulation compatible with DBA’s TSP process
• Minimizes rotor stress and prolongs service life under high-heat conditions

Thermographic Temperature Monitoring (TTM)

• Color-changing heat paint indicates peak temperature thresholds
• Permanent color changes help monitor rotor fatigue
• Assists drivers in determining rotor replacement and helps with warranty claims

Paint Protection on Non-Friction Areas

• Reduces corrosion and prevents unsightly rust
• Enhances visual appearance and adds product value

Technical information:

Diameter [mm]: 290
Disc Vent: SOLID
Number of Holes: 5
Inner Diameter [mm]: 75
Minimum Thickness [mm]: 9,4
Thickness [mm]: 11
Height [mm]: 66.2
Pitch Circle [mm]: 120
Stage: Stage 2

Suitable for:

Rear - BMW/1 Series (F20) 114/1.6 TD (2012-2016) Brake Pads: DB2224, Brake Caliper: ATE Rear - BMW/1 Series (F20) 114/1.6 Turbo (2012-2016) Brake Pads: DB2224, Brake Caliper: ATE Rear - BMW/1 Series (F20) 116/1.5 TD (2016-2019) Brake Pads: DB2224, Brake Caliper: ATE Rear - BMW/1 Series (F20) 116/1.5 Turbo (2016-2019) Brake Pads: DB2224, Brake Caliper: ATE Rear - BMW/1 Series (F20) 116/1.6 TD (2012-2016) Brake Pads: DB2224, Brake Caliper: ATE Rear - BMW/1 Series (F20) 116/1.6 Turbo (2011-2016) Brake Pads: DB2224, Brake Caliper: ATE Rear - BMW/1 Series (F20) 116/2.0 TD (2011-2016) Brake Pads: DB2224, Brake Caliper: ATE Rear - BMW/1 Series (F20) 116/2.0 TD (2011-2019) Brake Pads: DB2224, Brake Caliper: ATE Rear - BMW/1 Series (F20) 118/1.5 Turbo (2016-2019) Brake Pads: DB2224, Brake Caliper: ATE Rear - BMW/1 Series (F20) 118/1.6 Turbo (2011-2016) Brake Pads: DB2224, Brake Caliper: ATE Rear - BMW/1 Series (F20) 118/2.0 TD (2011-2019) Brake Pads: DB2224, Brake Caliper: ATE Rear - BMW/1 Series (F21) 114/1.6 TD (2012-2016) Brake Pads: DB2224, Brake Caliper: ATE Rear - BMW/1 Series (F21) 114/1.6 Turbo (2012-2016) Brake Pads: DB2224, Brake Caliper: ATE Rear - BMW/1 Series (F21) 116/1.5 TD (2016-2019) Brake Pads: DB2224, Brake Caliper: ATE Rear - BMW/1 Series (F21) 116/1.6 TD (2012-2016) Brake Pads: DB2224, Brake Caliper: ATE Rear - BMW/1 Series (F21) 116/1.6 Turbo (2012-2019) Brake Pads: DB2224, Brake Caliper: ATE Rear - BMW/1 Series (F21) 116/2.0 TD (2012-2019) Brake Pads: DB2224, Brake Caliper: ATE Rear - BMW/1 Series (F21) 118/1.5 Turbo (2015-2019) Brake Pads: DB2224, Brake Caliper: ATE Rear - BMW/1 Series (F21) 118/1.6 Turbo (2012-2016) Brake Pads: DB2224, Brake Caliper: ATE Rear - BMW/1 Series (F21) 118/2.0 TD (2012-2019) Brake Pads: DB2224, Brake Caliper: ATE Rear - BMW/1 Series (xDrive F20) 118/2.0 TD (2011-2019) Brake Pads: DB2224, Brake Caliper: ATE Rear - BMW/1 Series (xDrive F21) 118/2.0 TD (2011-2019) Brake Pads: DB2224, Brake Caliper: ATE Rear - BMW/2 Series (F22 Coupe) 218/1.5 Turbo 136BHP (2015-) Brake Pads: DB2224, Brake Caliper: ATE Rear - BMW/2 Series (F22 Coupe) 218/2.0 TD 141BHP (2014-2016) Brake Pads: DB2224, Brake Caliper: ATE Rear - BMW/2 Series (F22 Coupe) 218/2.0 TD 150BHP (2015-) Brake Pads: DB2224, Brake Caliper: ATE Rear - BMW/2 Series (F23 Convertible) 218/1.5 Turbo 136BHP (2015-) Brake Pads: DB2224, Brake Caliper: ATE Rear - BMW/2 Series (F23 Convertible) 218/2.0 TD 150BHP (2015-) Brake Pads: DB2224, Brake Caliper: ATE
