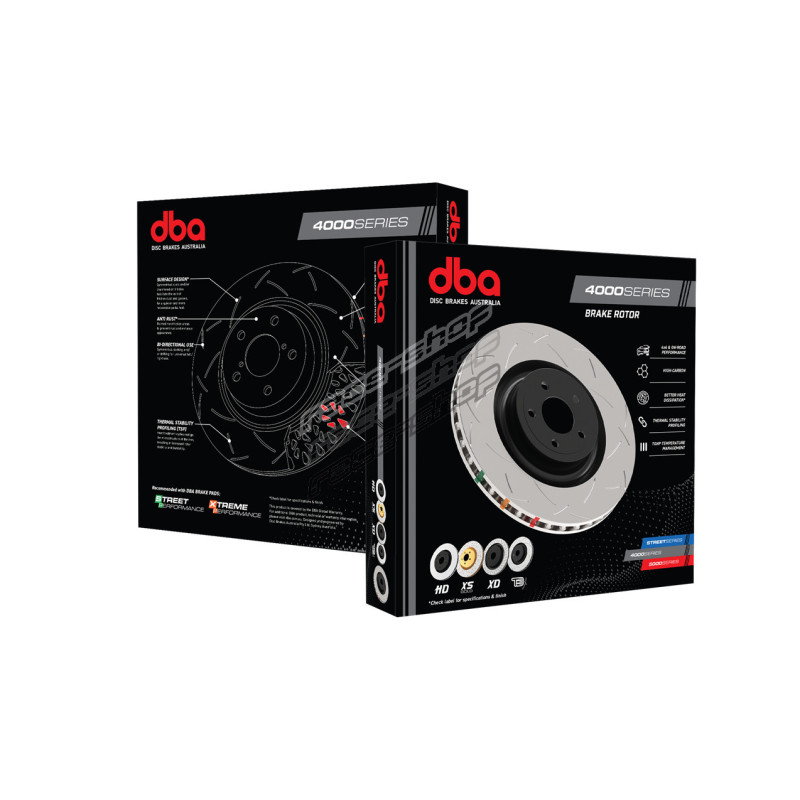

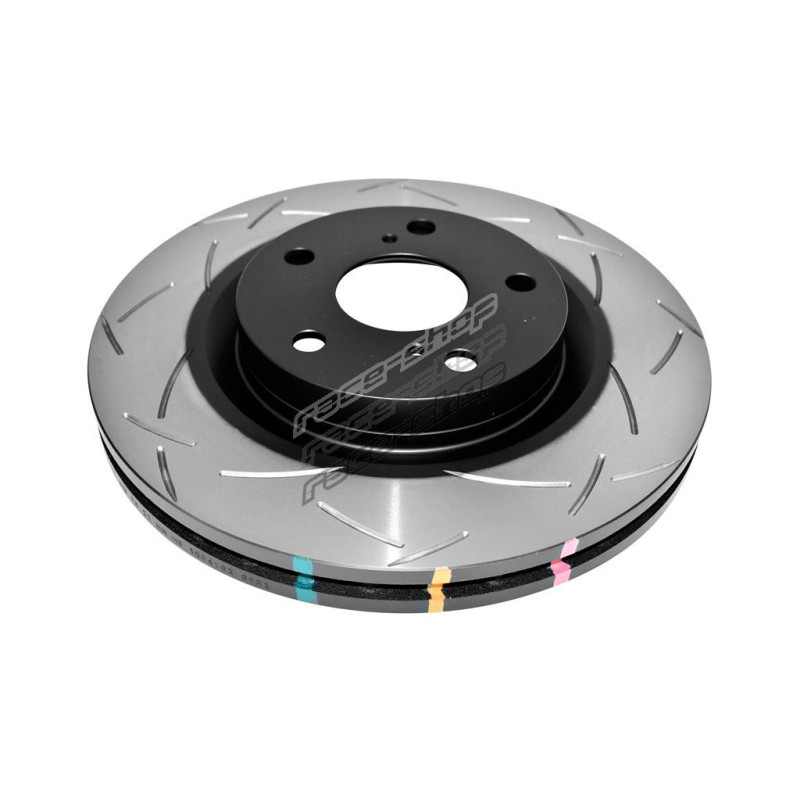

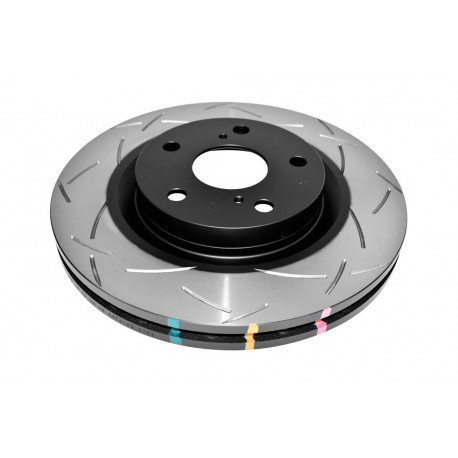

DBA 4000 series T3 DBA42709S (2 pcs)

Feature: T3 Slot – 48 precision CNC machined slots

Advantage: Tri-symmetrical curve slots dampen vibration harmonics or noise

Benefit: A quieter, responsive and smoother brake pedal feel

Advantage: Increased number of out-gassing exit points for brake pad friction gases to escape through

Benefit: Increases the consistency and effectiveness of every brake stop

Advantage: Universal slot design

Benefit: Eliminates the need for left and right discs

Feature: Kangaroo Paw – 144 diamond and tear drop pillar ventilation system

Advantage: Increased surface area resulting in greater heat dissipation

Benefit: Minimises brake fade and increases braking effectiveness

Advantage: Increased surface area resulting in greater heat dissipation

Benefit: Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs

Feature: XG150 High Carbon Alloyed Iron

Advantage: Increased thermal capacity allows handling constant extremes of heat

Benefit: Minimises warping and cracking; prolongs rotor service life

Feature: Thermal Stability Profiling (TSP)

Advantage: Special formulation responds to DBA’s TSP process

Benefit: Minimises warping and cracking; prolongs rotor service life

Feature: Thermographic Temperature Monitoring

Advantage: Heat paint markings change colour at specific temperature thresholds

Benefit: Offers the driver a clear indication of peak braking temperatures

Advantage: Permanent colour change when temperature thresholds are exceeded

Benefit: Allows monitoring of rotor fatigue and supports warranty claims

Feature: Paint protection on non-friction areas

Advantage: Reduces corrosion

Benefit: Prevents unsightly rust formation

Advantage: Enhances appearance

Benefit: Adds value to the product

Technical information:

Diameter [mm]: 296
Disc Vent: Kangaroo Paw
Number of Holes: 5
Inner Diameter [mm]: 62
Minimum Thickness [mm]: 25
Thickness [mm]: 28
Height [mm]: 49.3
Pitch Circle [mm]: 114.3
Stage: Stage 4
ECE R90 number: E11*90R02/06*60536*00

Suitable for:

Front - TOYOTA/Alphard/3.0 217BHP (2000-2008) , Front - TOYOTA/Auris/2.0 TD (2012-2018) Brake Pads: DB1801, Brake Caliper: Akebono Front - TOYOTA/Auris ZWE150/1.8 Hybrid (2010-2013) Brake Pads: DB1801, Brake Caliper: Akebono Front - TOYOTA/Auris ZWE186/1.8 (2012-2018) Brake Pads: DB1801, Brake Caliper: Akebono Front - TOYOTA/Auris ZWE186/1.8 Hybrid (2012-2018) Brake Pads: DB1801, Brake Caliper: Akebono Front - TOYOTA/Blade Master GRE156/3.5 V6 (2007-2012) Brake Pads: DB1801, Front - TOYOTA/Camry/2.0 (2011-2018) Brake Pads: DB1800, Front - TOYOTA/Camry/2.4 (2006-2011) Brake Pads: DB1800, Front - TOYOTA/Camry/2.4 4x4 (2006-2011) Brake Pads: DB1800, Front - TOYOTA/Camry/2.5 (2011-2018) Brake Pads: DB1800, Front - TOYOTA/Camry/3.5 (2006-2011) Brake Pads: DB1800, Front - TOYOTA/Camry/3.5 (2011-2018) Brake Pads: DB1800, Front - TOYOTA/Camry (MCV30)/3.0 (2001-2006) Brake Pads: DB1462, Front - TOYOTA/Camry ACV30/2.4 (2001-2006) Brake Pads: DB1462, Front - TOYOTA/Estima/2.4 (2003-2006) , Front - TOYOTA/Estima/3.0 (2003-2006) , Front - TOYOTA/Lucida/2.4 (2003-2006) , Front - TOYOTA/Lucida/3.0 (2003-2006) , Front - TOYOTA/Mirai/Hydrogen and Electric 152BHP (2015-) Brake Pads: DB1801, Front - TOYOTA/Previa/2.0 TD (2003-2007) , Front - TOYOTA/Previa/2.4 (2003-2007) , Front - TOYOTA/Previa/2.4 (2007-) , Front - TOYOTA/Previa/3.5 (2007-) , Front - TOYOTA/Prius Plus ZVW40/1.8 Hybrid (2012-2015) Brake Pads: DB1801, Front - TOYOTA/Rav 4/2.0 (2006-2013) Brake Pads: DB1801, Brake Caliper: Advics Front - TOYOTA/Rav 4/2.0 (2013-2018) Brake Pads: DB1801, Brake Caliper: Advics Front - TOYOTA/Rav 4/2.0 TD (2013-2018) Brake Pads: DB1801, Brake Caliper: Advics Front - TOYOTA/Rav 4/2.2 TD (2006-2013) Brake Pads: DB1801, Brake Caliper: Advics Front - TOYOTA/Rav 4/2.2 TD (2013-2018) Brake Pads: DB1801, Brake Caliper: Advics Front - TOYOTA/Rav 4/2.5 Hybrid (2016-2018) Brake Pads: DB1801, Brake Caliper: Advics
