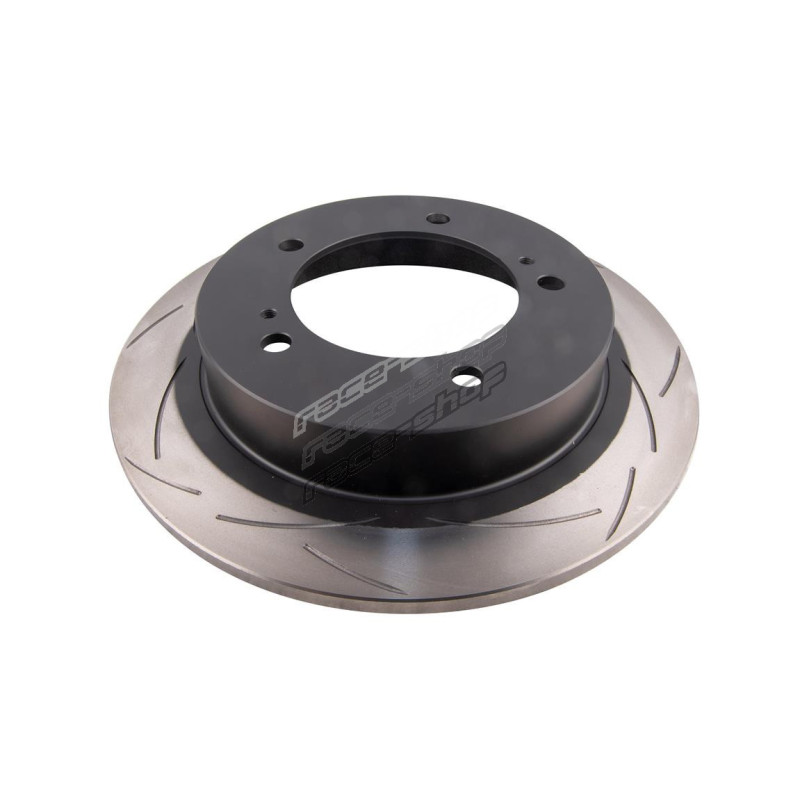

DBA T2 Rotors – Advanced Braking Technology

Key Features & Technologies

T3 Slot Design (48 CNC Precision-Machined Slots)

• Tri-symmetrical curved slots reduce vibration harmonics and noise
• Provides a quieter, smoother, and more responsive brake pedal feel
• Increased out-gassing points for friction gases to escape
• Improves braking consistency and performance under load
• Universal slot design eliminates the need for left/right specific discs

Kangaroo Paw Ventilation System

• 144 diamond and tear-drop shaped pillars for increased surface area
• Enhances heat dissipation to reduce brake fade and improve effectiveness
• Extends the life of both pads and rotors, reducing wear and maintenance costs

XG150 High Carbon Alloyed Iron

• Higher thermal capacity for managing extreme heat during braking
• Reduces the risk of warping and cracking
• Improves overall rotor durability and performance

Thermal Stability Profiling (TSP)

• Special formulation compatible with DBA’s TSP process
• Minimizes rotor stress and prolongs service life under high-heat conditions

Thermographic Temperature Monitoring (TTM)

• Color-changing heat paint indicates peak temperature thresholds
• Permanent color changes help monitor rotor fatigue
• Assists drivers in determining rotor replacement and helps with warranty claims

Paint Protection on Non-Friction Areas

• Reduces corrosion and prevents unsightly rust
• Enhances visual appearance and adds product value

Technical information:

Diameter [mm]: 290
Disc Vent: Solid
Number of Holes: 5
Inner Diameter [mm]: 107
Minimum Thickness [mm]: 8
Thickness [mm]: 10
Height [mm]: 46.5
Stage: Stage 2

Suitable for:

Front - SUZUKI/Escudo/1.6 TD01W (1990-1998) , Front - SUZUKI/Jeep SJ413 Samurai/1.3 (1992-1995) , Brake Caliper: Girling/TRW Front - SUZUKI/Jimny/1.3 107mm centre hole (1998-2018) Brake Pads: DB403, Brake Caliper: Sumitomo Front - SUZUKI/Jimny/1.5 TD 107mm centre hole (2004-2005) Brake Pads: DB403, Brake Caliper: Sumitomo Front - SUZUKI/Vitara SJJ/1.6 (1989-2001) , Brake Caliper: Girling/TRW Front - SUZUKI/Vitara TA01/1.6 (1988-1994) Brake Pads: DB1134, Brake Caliper: Akebono Front - SUZUKI/Vitara TA02/1.6 (1991-2001) Brake Pads: DB1134, Brake Caliper: Akebono Front - SUZUKI/Vitara TV01/1.6 (1995-1999) , Brake Caliper: Girling/TRW Front - SUZUKI/Vitara TV01/1.6 (1995-1999) Brake Pads: DB1134, Brake Caliper: Akebono Front - SUZUKI/Vitara TV02/1.6 (1995-1998) Brake Pads: DB1134, Brake Caliper: Akebono Front - SUZUKI/Vitara TV03/1.9 TD 3 Door (1997-2004) , Brake Caliper: Girling/TRW Front - SUZUKI/Vitara Van/1.6 (1993-1999) Brake Pads: DB1134, Brake Caliper: Akebono Front - SUZUKI/Vitara Van/1.9 TD (2000-2005) Brake Pads: DB1312, Brake Caliper: Sumitomo Front - SUZUKI/X-90 LA115/1.6 (1996-1999) Brake Pads: DB1134, Brake Caliper: Akebono Front - SUZUKI/X-90 LB115/1.6 4WD (1996-1999) Brake Pads: DB1134, Brake Caliper: Akebono
