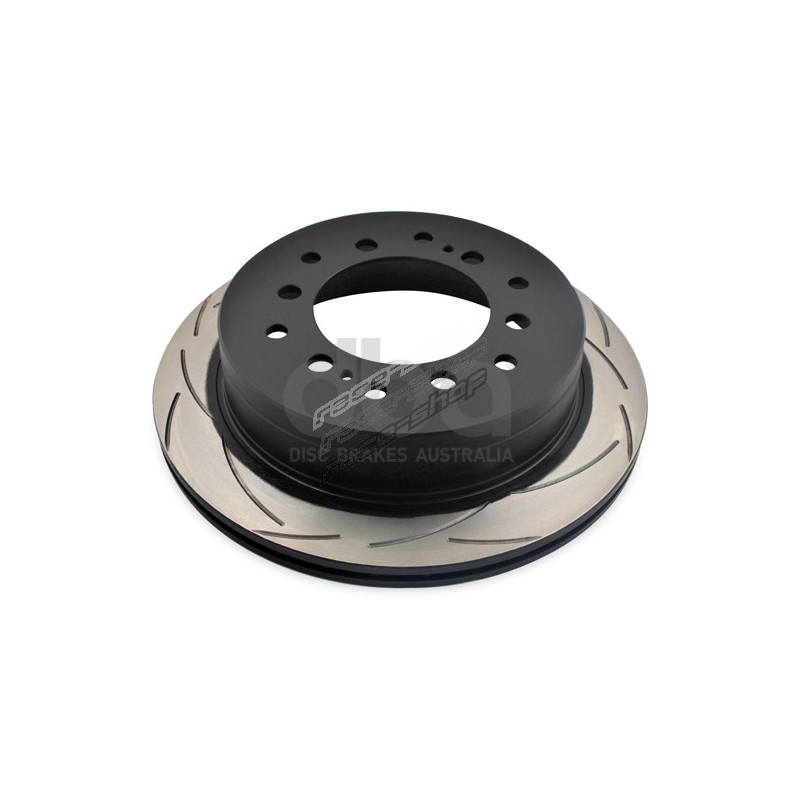

DBA T2 Rotors – Advanced Braking Technology

Key Features & Technologies

T3 Slot Design (48 CNC Precision-Machined Slots)

• Tri-symmetrical curved slots reduce vibration harmonics and noise
• Provides a quieter, smoother, and more responsive brake pedal feel
• Increased out-gassing points for friction gases to escape
• Improves braking consistency and performance under load
• Universal slot design eliminates the need for left/right specific discs

Kangaroo Paw Ventilation System

• 144 diamond and tear-drop shaped pillars for increased surface area
• Enhances heat dissipation to reduce brake fade and improve effectiveness
• Extends the life of both pads and rotors, reducing wear and maintenance costs

XG150 High Carbon Alloyed Iron

• Higher thermal capacity for managing extreme heat during braking
• Reduces the risk of warping and cracking
• Improves overall rotor durability and performance

Thermal Stability Profiling (TSP)

• Special formulation compatible with DBA’s TSP process
• Minimizes rotor stress and prolongs service life under high-heat conditions

Thermographic Temperature Monitoring (TTM)

• Color-changing heat paint indicates peak temperature thresholds
• Permanent color changes help monitor rotor fatigue
• Assists drivers in determining rotor replacement and helps with warranty claims

Paint Protection on Non-Friction Areas

• Reduces corrosion and prevents unsightly rust
• Enhances visual appearance and adds product value

Technical information:

Diameter [mm]: 312
Disc Vent: Kangaroo Paw
Number of Holes: 6
Inner Diameter [mm]: 106
Minimum Thickness [mm]: 16
Thickness [mm]: 18
Height [mm]: 68
Pitch Circle [mm]: 140
Stage: Stage 2
ECE R90 number: E11*90R02/06*60525*00

Suitable for:

Rear - TOYOTA/Landcruiser GRJ120/4.0 (2003-2008) Brake Pads: DB1200, Rear - TOYOTA/Landcruiser KDJ120/3.0 TD (2003-2009) Brake Pads: DB1200, Rear - TOYOTA/Landcruiser KDJ125/3.0 TD (2003-2009) Brake Pads: DB1200, Rear - TOYOTA/Landcruiser KDJ90/3.0 TD (2000-2003) Brake Pads: DB1200, Rear - TOYOTA/Landcruiser KDJ95/3.0 TD (2000-2003) Brake Pads: DB1200, Rear - TOYOTA/Landcruiser KZJ90/3.0 TD (1996-2001) Brake Pads: DB1200, Rear - TOYOTA/Landcruiser KZJ95/3.0 TD (1996-2001) Brake Pads: DB1200, Rear - TOYOTA/Landcruiser RZJ90/2.7 (1997-2002) Brake Pads: DB1200, Rear - TOYOTA/Landcruiser RZJ95/2.7 (1997-2002) Brake Pads: DB1200, Rear - TOYOTA/Landcruiser VZJ90/3.4 (1996-2002) Brake Pads: DB1200, Rear - TOYOTA/Landcruiser VZJ95/3.4 (1996-2003) Brake Pads: DB1200,
