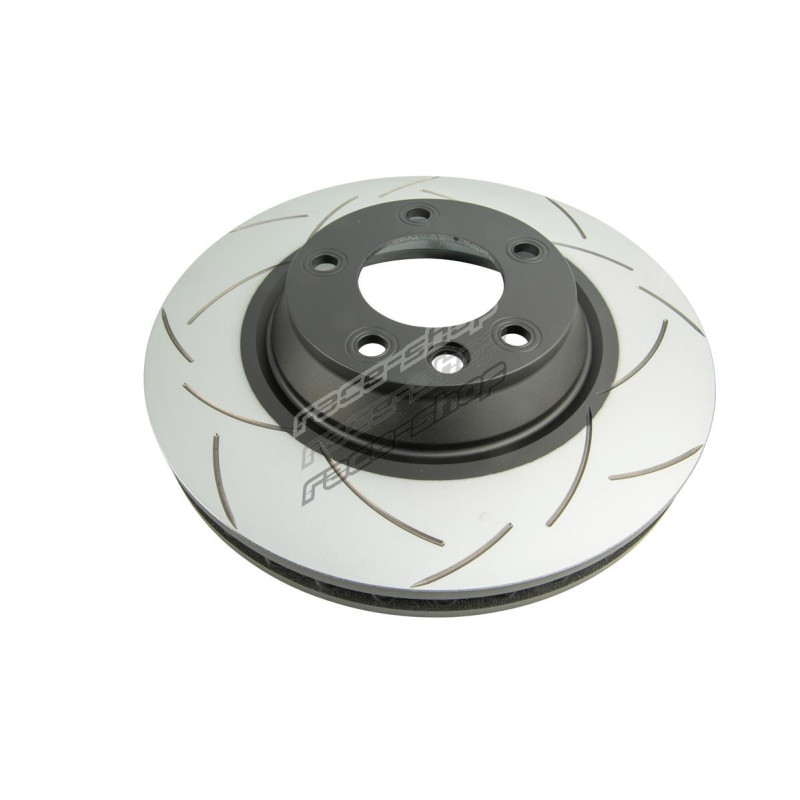

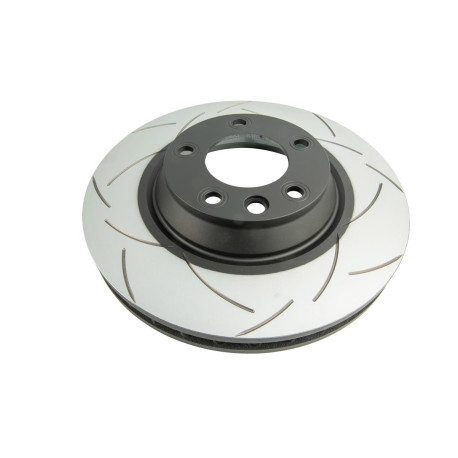

DBA T2 Rotors – Advanced Braking Technology

Key Features & Technologies

T3 Slot Design (48 CNC Precision-Machined Slots)

• Tri-symmetrical curved slots reduce vibration harmonics and noise
• Provides a quieter, smoother, and more responsive brake pedal feel
• Increased out-gassing points for friction gases to escape
• Improves braking consistency and performance under load
• Universal slot design eliminates the need for left/right specific discs

Kangaroo Paw Ventilation System

• 144 diamond and tear-drop shaped pillars for increased surface area
• Enhances heat dissipation to reduce brake fade and improve effectiveness
• Extends the life of both pads and rotors, reducing wear and maintenance costs

XG150 High Carbon Alloyed Iron

• Higher thermal capacity for managing extreme heat during braking
• Reduces the risk of warping and cracking
• Improves overall rotor durability and performance

Thermal Stability Profiling (TSP)

• Special formulation compatible with DBA’s TSP process
• Minimizes rotor stress and prolongs service life under high-heat conditions

Thermographic Temperature Monitoring (TTM)

• Color-changing heat paint indicates peak temperature thresholds
• Permanent color changes help monitor rotor fatigue
• Assists drivers in determining rotor replacement and helps with warranty claims

Paint Protection on Non-Friction Areas

• Reduces corrosion and prevents unsightly rust
• Enhances visual appearance and adds product value

Technical information:

Diameter [mm]: 350
Disc Vent: Kangaroo Paw
Number of Holes: 5
Inner Diameter [mm]: 85
Minimum Thickness [mm]: 32
Thickness [mm]: 34
Height [mm]: 69
Pitch Circle [mm]: 130
ECE R90 number: E11*90R02/06*60527*00

Suitable for:

Front - AUDI/Q7 4L/3.0 Supercharged (2010-2015) Brake Pads: DB7878, Brake Caliper: Brembo Front - AUDI/Q7 4L/3.0 TD (2006-2015) Brake Pads: DB7878, Brake Caliper: Brembo Front - AUDI/Q7 4L/3.6 (2006-2011) Brake Pads: DB7878, Brake Caliper: Brembo Front - AUDI/Q7 4L/4.2 (2006-2011) Brake Pads: DB7878, Brake Caliper: Brembo Front - AUDI/Q7 4L/4.2 TD (2007-2015) Brake Pads: DB7878, Brake Caliper: Brembo Front - AUDI/Q7 4L/6.0 Twin TD (2008-2015) Brake Pads: DB7878, Brake Caliper: Brembo Front - PORSCHE/Cayenne (92A)/3.0 TD (2010-2017) , Brake Caliper: Brembo Front - PORSCHE/Cayenne (92A)/3.6 300BHP (2010-2017) , Brake Caliper: Brembo Front - PORSCHE/Cayenne (9PA)/4.5 (2003-2007) Brake Pads: DB7878, Brake Caliper: Brembo Front - PORSCHE/Cayenne (9PA)/4.5 Twin Turbo 450BHP (2003-2007) Brake Pads: DB7878, Brake Caliper: Brembo Front - PORSCHE/Cayenne (9PA)/4.8 GTS (2007-2010) Brake Pads: DB7878, Brake Caliper: Brembo Front - PORSCHE/Cayenne (9PA)/4.8 S (2007-2010) Brake Pads: DB7878, Brake Caliper: Brembo Front - VOLKSWAGEN/Touareg (1st Gen)/3.0 TD 225BHP (2004-2010) Brake Pads: DB7878, Brake Caliper: Brembo Front - VOLKSWAGEN/Touareg (1st Gen)/3.0 TD 240BHP (2007-2010) Brake Pads: DB7878, Brake Caliper: Brembo Front - VOLKSWAGEN/Touareg (1st Gen)/3.2 241BHP (2004-2006) Brake Pads: DB7878, Brake Caliper: Brembo Front - VOLKSWAGEN/Touareg (1st Gen)/3.6 280BHP (2005-2010) Brake Pads: DB7878, Brake Caliper: Brembo Front - VOLKSWAGEN/Touareg (1st Gen)/4.2 310BHP (2002-2006) Brake Pads: DB7878, Brake Caliper: Brembo Front - VOLKSWAGEN/Touareg (1st Gen)/4.2 350BHP (2006-2010) Brake Pads: DB7878, Brake Caliper: Brembo Front - VOLKSWAGEN/Touareg (1st Gen)/5.0 TD 313BHP (2002-2010) Brake Pads: DB7878, Brake Caliper: Brembo Front - VOLKSWAGEN/Touareg (1st Gen)/6.0 450BHP (2005-2010) Brake Pads: DB7878, Brake Caliper: Brembo
