EGR removal plug with gaskets suitable for VOLVO D5204T3 D5244T15 D5244T22

The EGR valve reduces the pollutant content of the exhaust gases by allowing you to determine the amount of flue gases into the intake. However, diesel oil is very greasy, and the EGR is often blocked, consequently reducing the passage of the entire suction tract of the engine. There is a decrease of performance and increase of smoke.

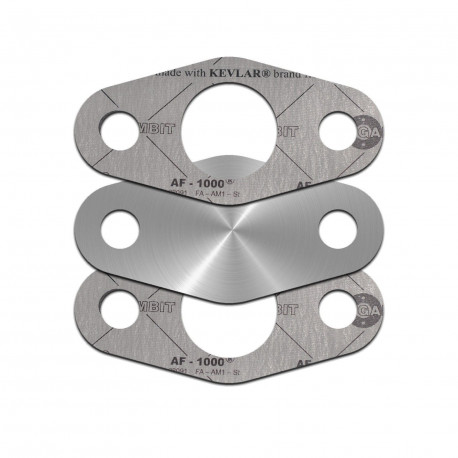

This kit contains the gaskets and the plug to blank the original EGR valve.

Note : after blanking, the EGR system should be removed by software, because an error will be displayed on the dashboard



Application:

Volvo

S60 II (134)
D3 (D 5204 T2 D 5204 T3) 1984ccm 163HP / 120kW 2010 / 04-2014 / 12
D4 (D 5204 T3) 1984ccm 163HP / 120kW 2010 / 04-2014 / 12
D5 (D 5244 T11 D 5244 T15) 2400ccm 215HP / 158kW 2011 / 04-2015 / 12
D5 (D 5244 T15) 2400ccm 230HP / 169kW 2014 / 04-2015 / 12
D5 AWD (D 5244 T15) 2400ccm 215HP / 158kW 2011 / 04-2015 / 12
D5 AWD (D 5244 T15) 2400ccm 230HP / 169kW 2014 / 04-2015 / 12

S80 II (124)
D3 / D4 (D 5204 T2 D 5204 T3) 1984ccm 163HP / 120kW 2010 / 01-2016 / 12
D5 (D 5244 T11 D 5244 T15) 2400ccm 215HP / 158kW 2011 / 06-2015 / 04
D5 AWD (D 5244 T15) 2400ccm 215HP / 158kW 2011 / 06-2015 / 04

V60 I ​​(155, 157)
2.4 D5 (D 5244 T11 D 5244 T15) 2400ccm 215HP / 158kW 2011 / 04-2015 / 12
2.4 D5 AWD (D 5244 T15) 2400ccm 215HP / 158kW 2011 / 04-2015 / 12
D3 / D4 (D 5204 T2 D 5204 T3 ) 1984ccm 163HP / 120kW 2010 / 07-2014 / 12
D5 AWD (D 5244 T15) 2400ccm 230HP / 169kW 2014 / 04-2015 / 12

V60 I ​​closed body / estate (155)
2.0 D4 (D 5204 T3) 1984ccm 163HP / 120kW 2013 / 09-2015 / 12

V70 III (135)
D3 / D4 (D 5204 T2 D 5204 T3) 1984ccm 163HP / 120kW 2010 / 03-2015 / 12
D5 (D 5244 T11 D 5244 T15) 2400ccm 215HP / 158kW 2011/04 -2015/12
D5 AWD (D 5244 T15) 2400ccm 215HP / 158kW 2011 / 04-2015 / 12

XC60 I SUV (156)
D3 / D4 (D 5204 T2 D 5204 T3) 1984ccm 163HP / 120kW 2010 / 03-2014 / 12
D5 (D 5244 T11 D 5244 T15) 2400ccm 215HP / 158kW 2011 / 06-2017 / 02
D5 AWD (D 5244 T11 D 5244 T15) 2400ccm 215HP / 158kW 2011 / 04-2015 / 12
D5 AWD (D 5244 T20 D5244T22) 2400ccm 220HP / 162kW 2015 / 03-2017 / 02

XC60 I VAN (156)
D4 (D 5204 T3) 1984ccm 163HP / 120kW 2013 / 09-2017 / 02
D5 AWD (D 5244 T11 D5244T15) 2400ccm 215HP / 158kW 2013 / 09-2017 / 02

XC70 II (136)
D3 (D 5204 T2 D5204T3) 1984ccm 163HP / 120kW 2010 / 04-2015 / 12
D5 AWD (D 5244 T11 D 5244 T15) 2400ccm 215HP / 158kW 2011 / 04-2015 / 12
D5 AWD (D 5244 T15) 2400ccm 230HP / 169kW 2013 / 11-2016 / 04

XC70 II VAN (136)
2.0 D4 (D 5204 T3) 1984ccm 163HP / 120kW 2013 / 09-
2.4 D5 AWD (D 5244 T15) 2400ccm 215HP / 158kW 2013 / 09-



Replacement part / OEM codes / Manufacturer note:

Catalog number of the original 31338533, 30757778
