EGR replacement kit suitable for VAG TDI ASV, AJM, AVB, AFN (with plugs)

The EGR valve reduces the pollutant content of the exhaust gases by allowing you to determine the amount of flue gases into the intake. However, diesel oil is very greasy, and the EGR is often blocked, consequently reducing the passage of the entire suction tract of the engine. There is a decrease of performance and increase of smoke.

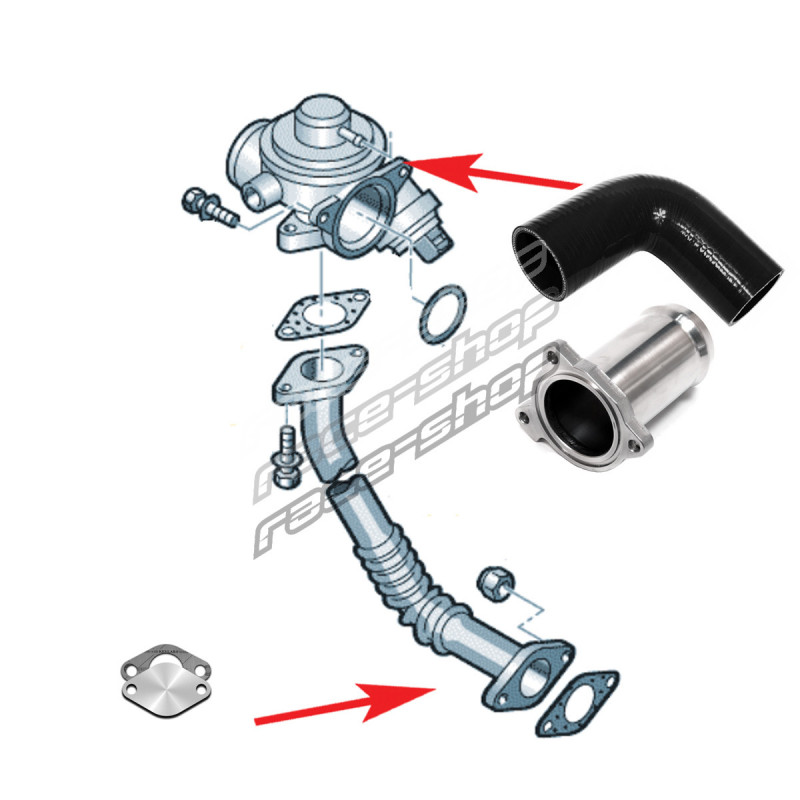

This kit contains everything you need to completely remove and replace the original EGR valve.

Note : after blanking and replacing, the EGR system should be removed by software, because an error will be displayed on the dashboard



Application:

Audi :A2 1.2 TDI, 2001-2005, 61 HP / 45 kW, engine code: ANY A3 1.9 TDI, 1996-2001, 90 HP / 66 kW, engine code: AGR, ALH A3 1.9 TDI, 2000-2003, 100 HP / 74 kW, engine code: ATD, AXR A3 1.9 TDI, 1997-2001, 110 HP / 81 kW, engine code: AHF, ASV A4 B5 1.9 TDI; 2000-2001, 115 HP / 85 KW, engine code: AJM, ATJ A4 B5 Avant 1.9 TDI, 2000-2001, 115 HP / 85 KW, engine code: AJM A4 B5 Avant quattro 1.9 TDI, 2000-2001, 115 HP / 85 KW, engine code: AJM, ATJ A4 B6 1.9 TDI; 2001-2004, 100 HP / 74 KW, engine code: AVB A4 B6 Avant 1.9 TDI; 2001-2004, 100 HP / 74 KW, engine code: AVB A6 C5 1.9 TDI; 2000-2005, 115 HP / 85 KW, engine code: AJM A6 C5 Avant 1.9 TDI; 2000-2005, 115 HP / 85 KW, engine code: AJMSeat :Arosa 1.4 TDI, 2000-2004, 75 HP / 55 kW, engine code: AMF Alhambra 1.9 TDI, 1996-2010, 90 HP / 66 KW, engine code: 1Z, AHU, ANU Cordoba I 1.9 TDI, 1999-2002, 90 HP / 66 kW, engine code: AGR, ALH Cordoba I 1.9 TDI, 1999-2002, 110 HP / 81 kW, engine code: AHF, ASV, ASK Cordoba II 1.4 TDI, 2002-2005, 75 HP / 55 kW, engine code: AMF Ibiza III 1.9 TDI, 1999-2002, 90 HP / 66 kW, engine code: AGR, ALH Ibiza III 1.9 TDI, 1999-2002, 110 HP / 81 kW, engine code: AHF, ASV Ibiza IV 1.4 TDI, 2002-2005, 75 HP / 55 kW, engine code: AMF Leon I 1.9 TDI, 1999-2006, 90 HP / 66 kW, engine code: AGR, ALH Leon I 1.9 TDI, 1999-2006, 110 HP / 81 kW, engine code: AHF, ASV Toledo II 1.9 TDI, 1999-2004, 90 HP / 66 kW, engine code: AGR, ALH Toledo II 1.9 TDI, 1998-2004, 110 HP / 81 kW, engine code: AHF ASVSkoda :Fabia I 1.4 TDI, 2003-2008, 75 HP / 55 kW, engine code: AMF Octavia I 1.9 TDI, 1996-2010, 90 HP / 66 kW, engine code: AGR, ALH Octavia I 1.9 TDI, 2005-2010, 100 HP / 74 kW, engine code: ATD, AXR Octavia I 1.9 TDI, 1997-2006, 110 HP / 81 kW, engine code: AHF, ASV Superb I 1.9 TDI, 2002-2005, 100 HP / 74 KW, engine code: AVBVolkswagen : Bora 1.9 TDI, 1998-2005, 90 HP / 66 kW, engine code: AGR, ALH Bora 1.9 TDI, 2000-2005, 100 HP / 74 kW, engine code: ATD, AXR Bora 1.9 TDI, 1998-2001, 110 HP / 81 kW, engine code: AHF, ASV Bora 1.9 TDI, 1998-2002, 115 HP / 85 kW, engine code: AJM, AUY Caddy II 1.9 TDI, 1996-2004, 90 HP / 66 kW, engine code: 1Z, AHU, ALH Golf IV 1.9 TDI, 1997-2004, 90 HP / 66 kW, engine code: AGR, ALH Golf IV Van 1.9 TDI, 2000-2002, 90 HP / 66 kW, engine code: AGR Golf IV Variant 1.9 TDI, 1999-2006, 90 HP / 66 kW, engine code: AGR, ALH Golf IV 1.9 TDI, 2000-2006, 100 HP / 74 kW, engine code: ATD, AXR Golf IV Variant 1.9 TDI, 2000-2006, 100 HP / 74 kW, engine code: ATD, AXR Golf IV 1.9 TDI, 1997-2004, 110 HP / 81 kW, engine code: AHF, ASV Golf IV Variant 1.9 TDI, 1999-2001, 110 HP / 81 kW, engine code: AHF, ASV Golf IV 1.9 TDI, 1997-2004, 115 HP / 85 kW, engine code: AJM, AUY Golf IV Variant 1.9 TDI, 1999-2001, 115 HP / 85 kW, engine code: AJM, AUY Lupo 1.2 TDI, 1999-2005, 61 HP / 45 kW, engine code: ANY, AYZ Lupo 1.4 TDI, 1999-2005, 75 HP / 55 kW, engine code: AMF New Beetle 1.9 TDI, 1998-2004, 90 HP / 66 kW, engine code: ALH Polo 1.4 TDI, 1999-2001, 75 HP / 55 kW, engine code: AMF Polo Classic 1.9 TDI, 1996-2001, 90 HP / 66 kW, engine code: AHU, AGR, ALH, ALE Polo Classic 1.9 TDI, 1998-2002, 110 HP / 81 kW, engine code: AFN, ASV Polo 1.4 TDI, 2001-2005, 75 HP / 55 kW, engine code: AMF, BAY Passat B5 1.9 TDI, 1999-2000, 100 HP / 74 KW, sengine code: AVB Passat B5 1.9 TDI, 1998-2000, 115 HP / 85 KW, engine code: AJM, ATJ Passat B5 4motion 1.9 TDI, 1998-2000, 115 HP / 85 KW, engine code: ATJ Passat B5 FL 1.9 TDI, 2000-2005, 100 HP / 74 KW, engine code: AVB Sharan I 1.9 TDI, 1995-2010, 90 HP / 66 KW, engine code: 1Z, AHU, ANUFord :Galaxy 1.9 TDI, 1995-2006, 90 HP / 66 KW, engine code: 1Z, AHU, ANU



Replacement part / OEM codes / Manufacturer note:

038 131 501 AQ 038 131 501 D 038 131 501 G 038 131 501 E 045 131 501 C 045 131 501 L
