Quality silicone hose, all hoses are manufactured from high grade silicone polymer, and reinforced with a high strength polyester fabric.
New product

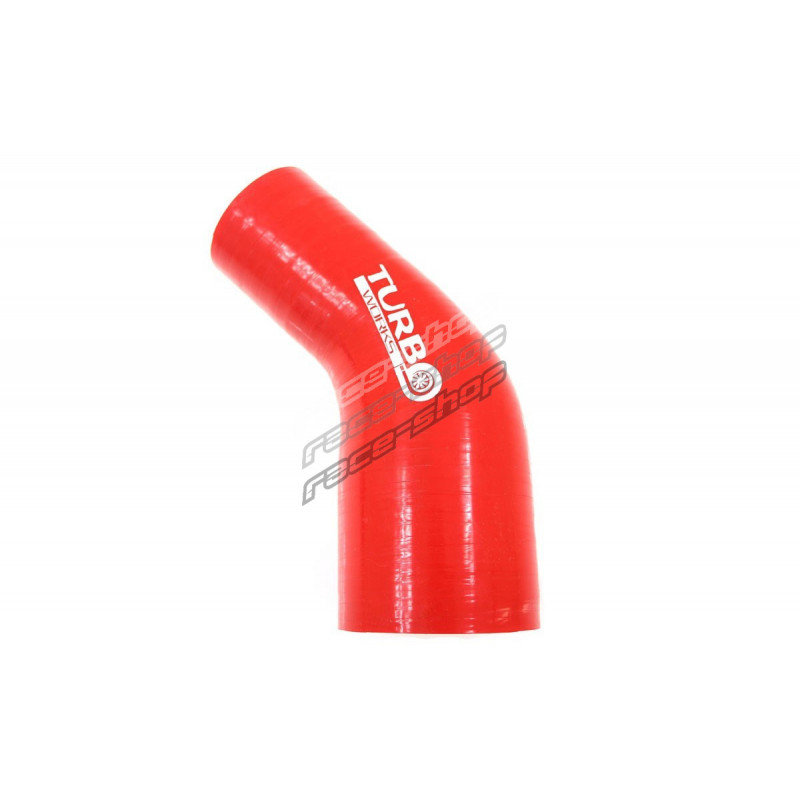

Silicone elbow reducer 45°, 76mm (3") to 102mm (4")
Quality silicone hose, all hoses are manufactured from high grade silicone polymer, and reinforced with a high strength polyester fabric.
Pošlite obsluhe obchodu otázku k tomuto produktu.
* povinný údaj
alebo Zrušiť
Silicone elbow reducer 45°, 76mm (3") to 102mm (4")
To be informed about product update via email, fill out the form.
* Required
or Cancel
Quality silicone hose, all hoses are manufactured from high grade silicone polymer, and reinforced with a high strength polyester fabric.
Oil resistant.
Angle: 90°
D1: 76mm (3")
D2: 102mm (4")
L (Leg Length): 100mm
Wall thickness: 5mm
Heat resistance: -50 up to 260°C
Reinforced: 4 layers
We recommend the use of high-pressure clamps!
"
Hose diameter | Stainless steel clamp | GBS W1 | High pressure "T" clamp |
76mm | 70-90 80-100 | 80-85 | 79-87 |
102mm | 100-120 | 113-121 | 104-112 |
Angle | 45° elbow |
Reduction - smaller diameter | 76mm |
Reduction - larger diameter | 102mm |
