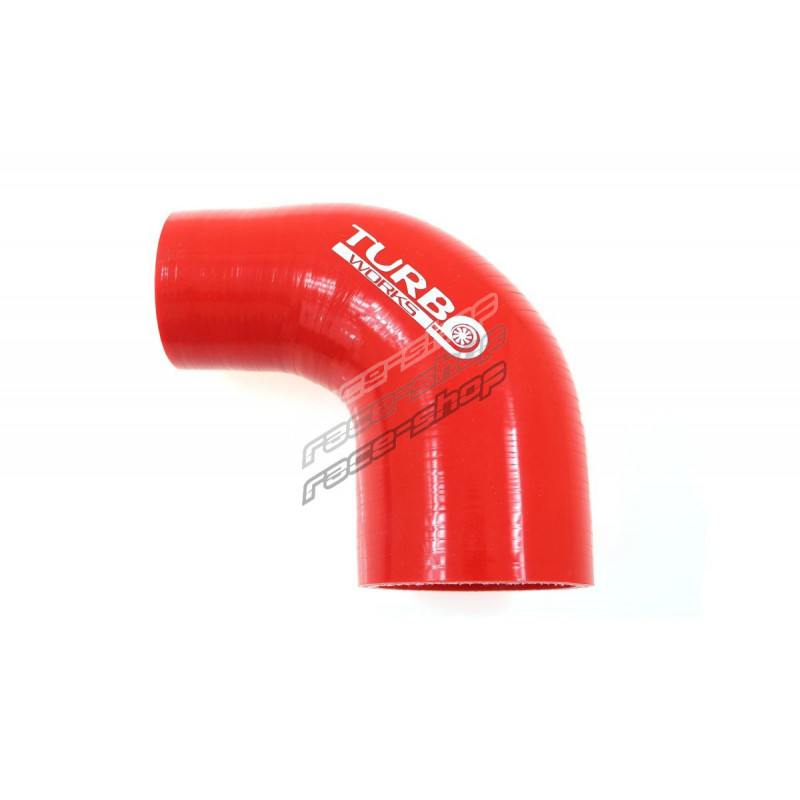

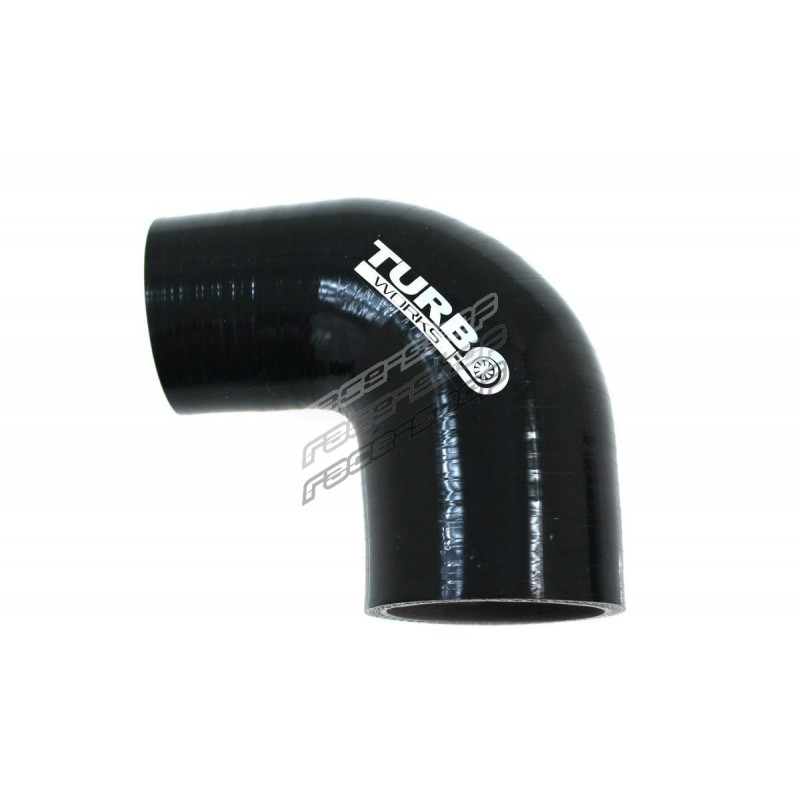

Silicone elbow reducer 90°, 67mm (2,64") to 76mm (3")
Quality silicone hose, all hoses are manufactured from high grade silicone polymer, and reinforced with a high strength polyester fabric.
New product
Frequently bought together
Cross-references
Quality silicone hose, all hoses are manufactured from high grade silicone polymer, and reinforced with a high strength polyester fabric.
Oil resistant.

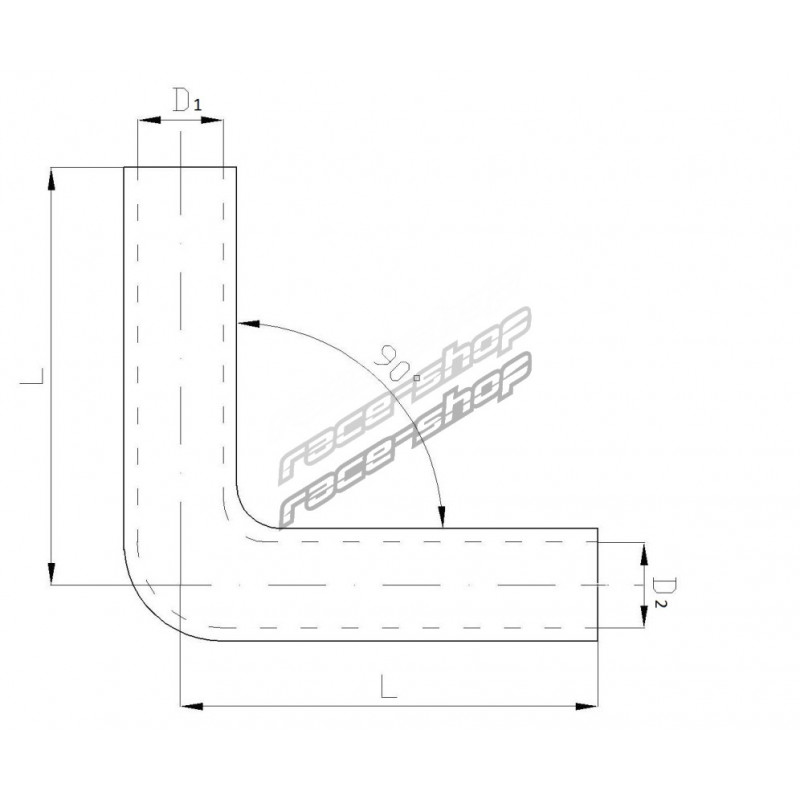

Angle: 90°
D1: 67mm (2,64")
D2: 76mm (3")
L (Leg Length): 100mm
Wall thickness: 5mm
Heat resistance: -50 up to 260°C
Reinforced: 4 layers
We recommend the use of high-pressure clamps!
"
 |  |  | |
| Hose diameter | Stainless steel clamp | GBS W1 | High pressure "T" clamp |
| 67mm | 60-80 70-90 | 74-79 | 73-81 |
| 76mm | 70-90 80-100 | 80-85 | 79-87 |
Rating
Data sheet
| Angle | 90° elbow |
| Reduction - smaller diameter | 67mm |
| Reduction - larger diameter | 76mm |
Anonymous customer Rated 09.04.2024
Silikonsko koljeno
Odlične kvalitete i svim dostupnim veličinama. Izdrži visoka opterećenja!
Barta Ádám Rated 06.09.2019
Sopron
Tökéletes minőség
