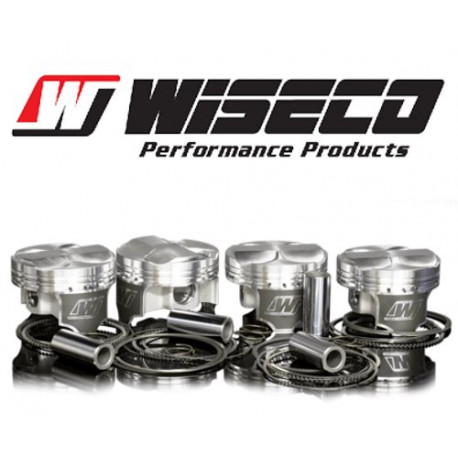

Forged pistons Wiseco for Honda S2000 F20/F22 2.0L/2.2L16V(-10cc)BOD

Bore: 87.5mm

Over size: 0,50

Comp Ht. : 28,98

Dome/Dish cc’s: -10

Vzdialenosť: 0,02-

Comp. ratio: 8,5:1

Pin diameter: 23mm

Ring part No. : 8750XX

Weight: 307g

Note: Most Wiseco Pistons have offset pins. (Pins must be offset, same as OEM, for quietest operation).

Due to compression height that may protrude above the deck, it is recommended that a 1.00mm thick head gasket is used.

FSR series(Forged Side Relief)

Made to order(4 pcs minimum)

Aluminum cylinders like Alusil®, Lokasil®, Silitec®, DiASil, Mercosil, ALBOND®, FRM, MMC, recommended to run sleeved bores/must sleeve block or Nicasil

Honda F20C as in S2000 2,0 Ltr 16V engine code: F20C (OEM engine details: displacement: 1997 cc, valves: 16, comp. Ratio: 11,0:1 Head cc’s 52,50, gasket thickness: 0,75mm

Honda F22C as in S2000 2,2 Ltr 16V engine code: F22C (OEM engine details: displacement: 2156 cc, valves: 16, comp. Ratio: 11,0:1 Head cc’s 52,50, gasket thickness: 0,75mm

Pins and wire locks are provided with the pistons.

In 1940, Clyde Wiseman embarked on his East Side garage in Cleveland, Ohio, to produce pistons for himself and a few friends. The rumors of his high-quality work quickly spread, and in 1941 Wiseco Piston was founded to serve the needs of motoring enthusiasts. Exceptional quality with precise grinding ensures reliability even with the most extreme motor sport applications.
